Tomey UD-800 User Manual

3-79 ■
(2) Measure Point
Opens the measurement setup screen (Fig. 1).
(3) PreSet1 / PreSet2
Changes the selected preset measurement point.
(4) Eye selection
Changes the preset measurement point of the selected eye.
(5) Radius input field
Specify the radius from the center of the measurement point. Touch the
input field. The keypad appears. Touch the “▼” on the right of the input field
The pull down menu appears. Select CCT or enter the desired value using
the keypad.
Input range: 0.1 - 15.0 mm
(6) Angle input field
Enter the angle from the horizontal axis at the measurement point. The key
pad appears when the input field is touched.
Input range: 0 - 179
(7) S/I selection button
The mode alternates between “S” and “I” every time you touch the button.
(8) “Apply Current Value" button
Enters the measurement points currently being used in each field on the
measurement screen.
(3)
(4)
(7)
(5)
(6)
(8)

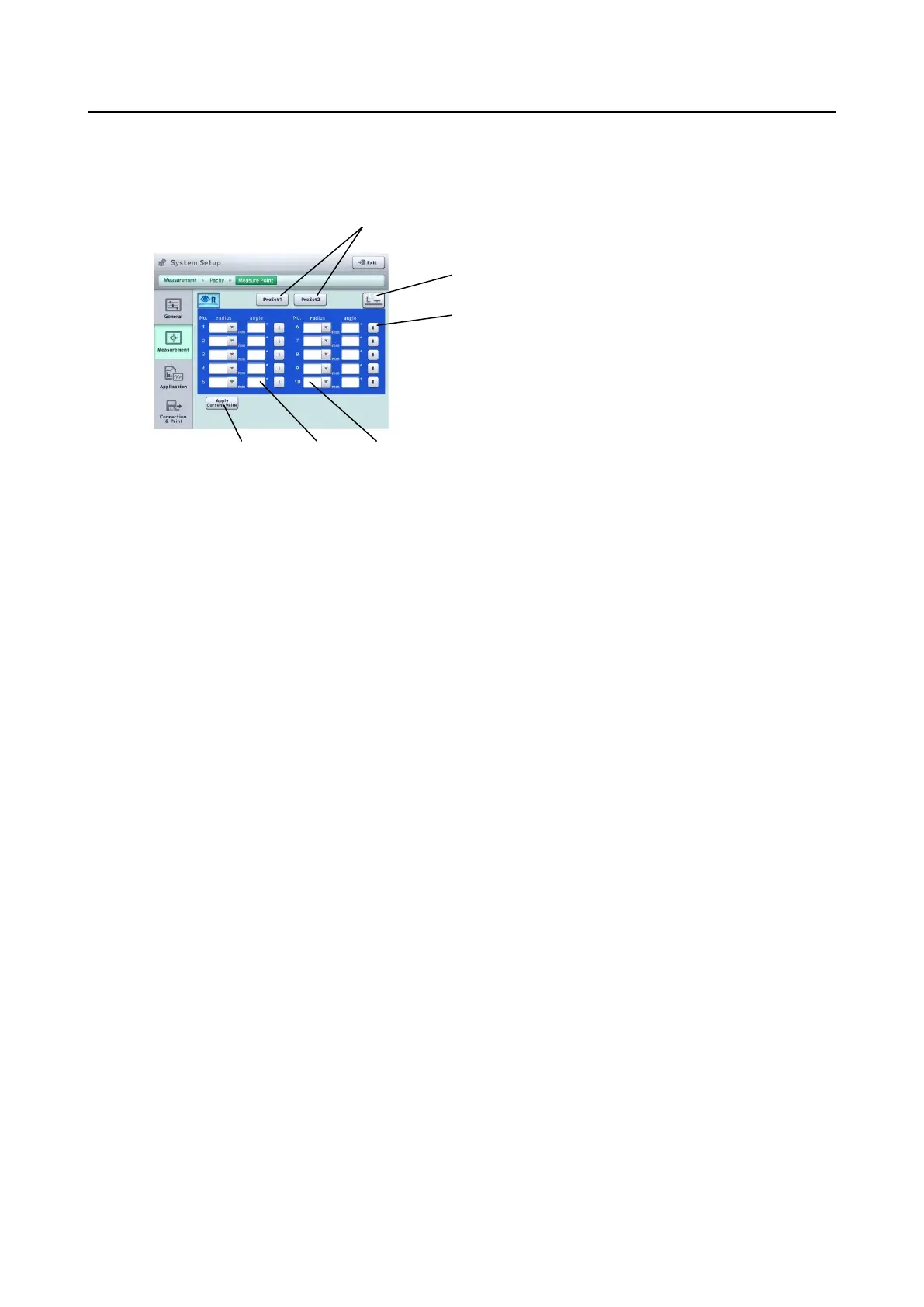

(Fig. 1)
)
