TH2827 Series Operation Manual Chapter 7 Command Reference
117
Note: the signal to /BIN1 - /BIN9, /OUT, /AUX, /PHI, /PLO and /SREJ in the list
sweep comparison is different from that in the BIN comparison.

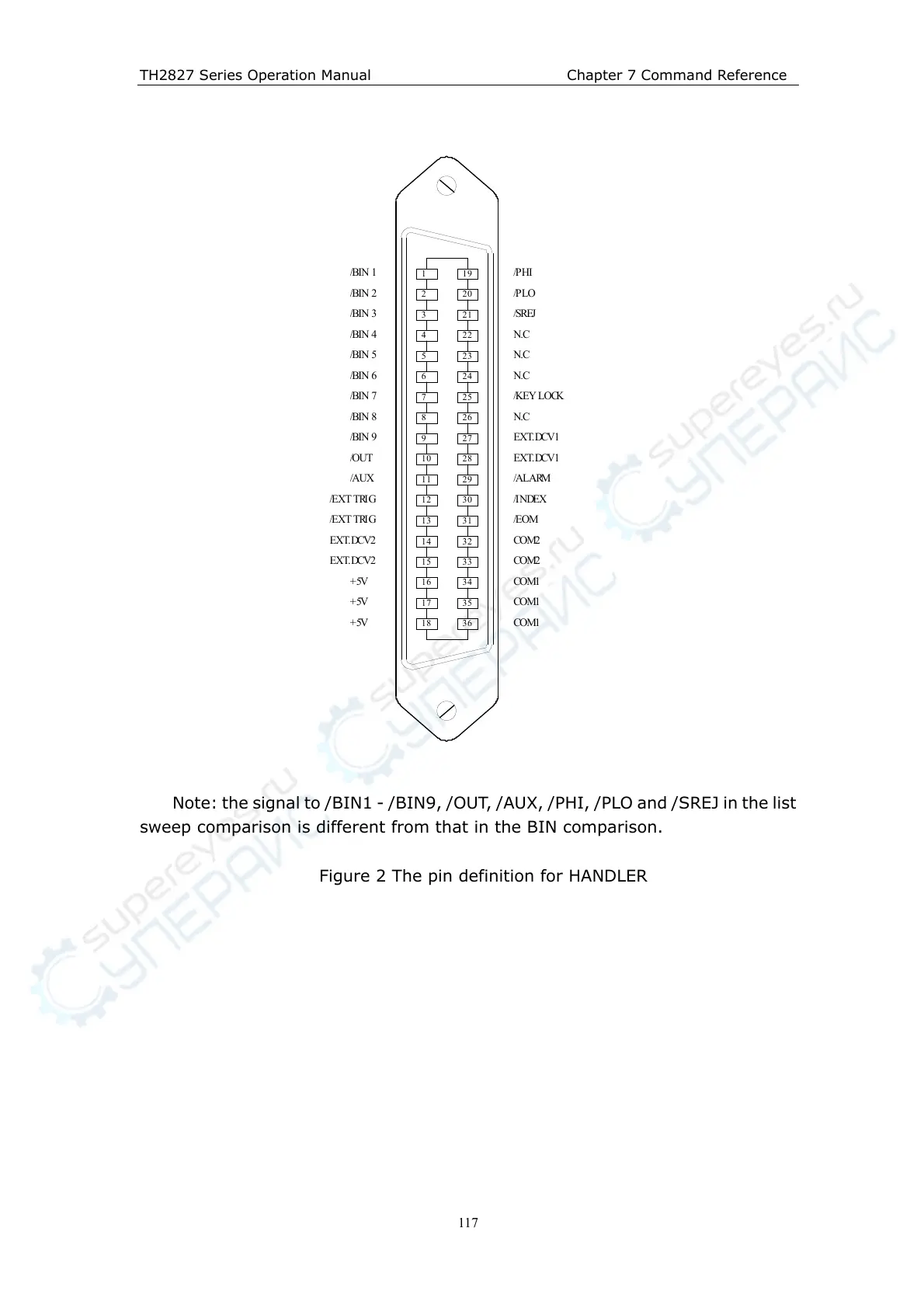

Figure 2 The pin definition for HANDLER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
/BIN 1
/BIN 2
/BIN 3
/BIN 4
/BIN 5
/BIN 6
/BIN 7
/BIN 8
/BIN 9
/OUT
/AUX
/EXT TRIG
EXT.DCV2
+5V COM1
COM2
/PHI
/PLO
/SREJ
N.C
/KEY LOCK
N.C
EXT. DCV1
/ALARM
/I NDEX
/EOM
COM1
COM1
COM2
EXT. DCV1
N.C
N.C
+5V
+5V
/EXT TRIG
EXT.DCV2
