TH2827 Series Operation Manual Chapter 7 Command Reference
118
delay 1 measurement 2comparison 3display
time time time time
Time The
minimum
The maximum
T1: trigger pulse-width
T2:delay time
T3:the trigger waiting time
after /EOM output
1us
200us
0us
---
Display time
3
+
200us
---
1. For the measurement time, please refer to the operation manual;
2. The typical comparison time is approximately 1ms;
3. The display time for every display page is below:
MEAS DISPLAY： 8ms;
BIN NO.DISPLAY：5ms;
BIN COUNT DISPLAY：0.5ms

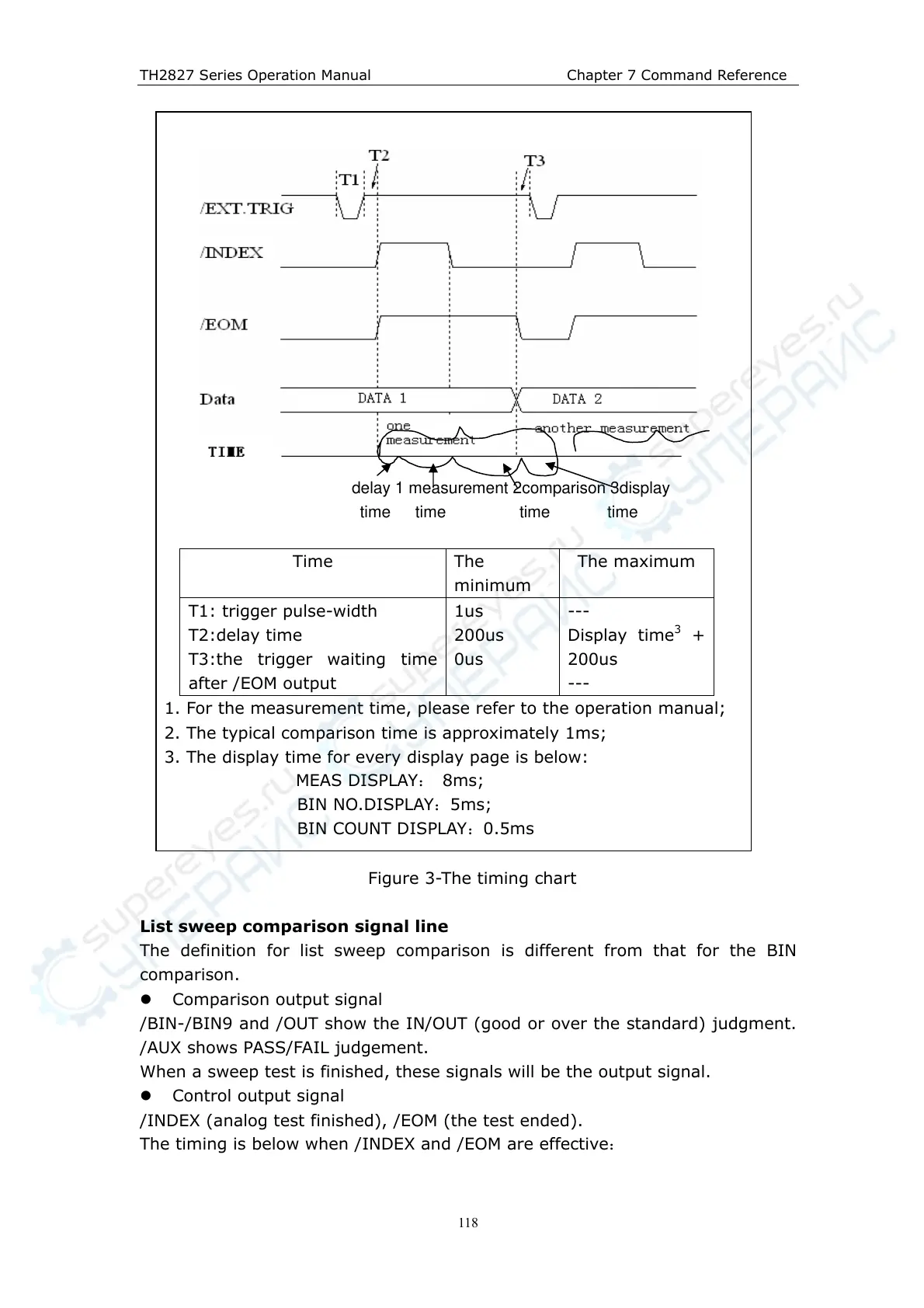

Figure 3-The timing chart
List sweep comparison signal line
The definition for list sweep comparison is different from that for the BIN
comparison.
Comparison output signal
/BIN-/BIN9 and /OUT show the IN/OUT (good or over the standard) judgment.
/AUX shows PASS/FAIL judgement.
When a sweep test is finished, these signals will be the output signal.
Control output signal
/INDEX (analog test finished), /EOM (the test ended).
The timing is below when /INDEX and /EOM are effective：
