Display Panel Operations

22
P/N:1001608‐01

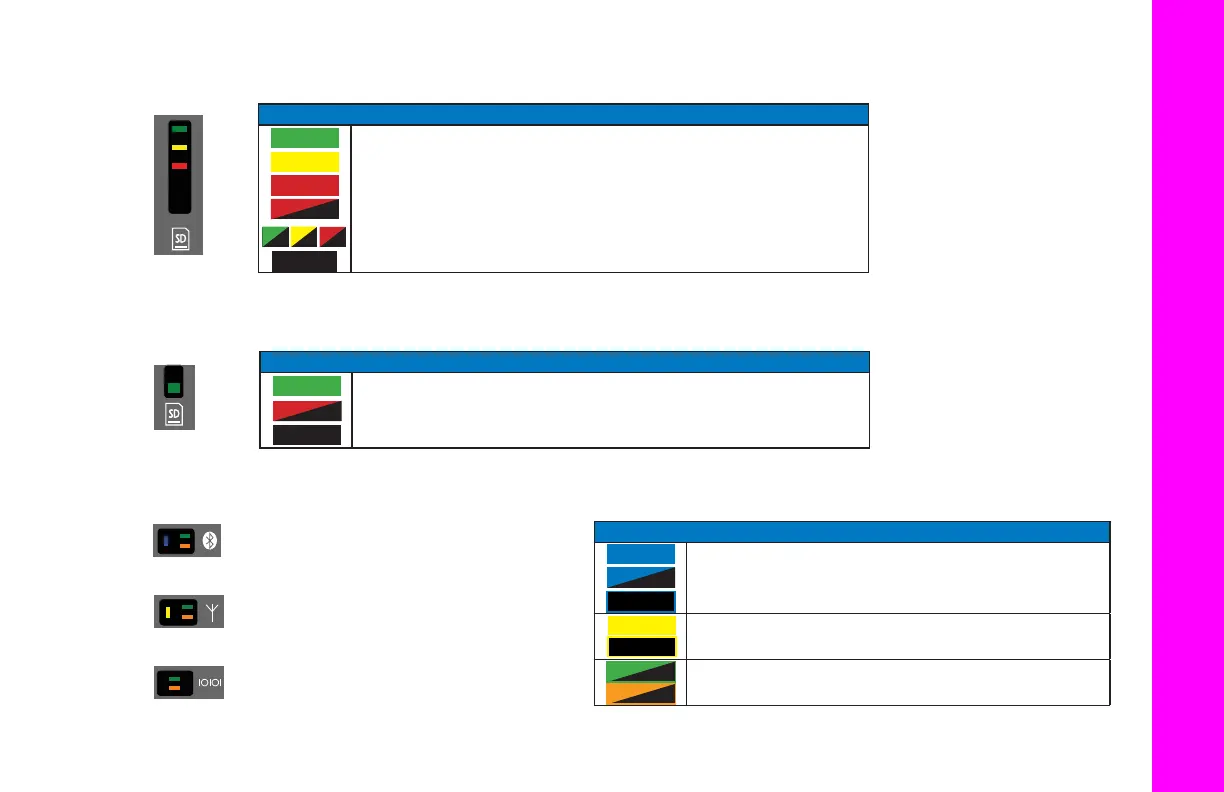

MemoryCapacityBar indicatesthepercentageofavailablespaceontheSD/SDHCmemorycard.
FileStatusLED indicatesthestatusofthecurrentfile.
CommunicationStatusLEDs
MEMORY CAPACITY BAR
Greater than 50%
Less than 50%
Less than 25%
Less than 10%
Memory full or SD/SDHC card is not ready.
No card is installed.
FILE STATUS
A file is open.
Writing to the file.
A file is not open or there is no SD/SDHC card in the slot.
COMMUNICATION STATUS (WIRELESS/RADIO/SERIAL PORT)
Bluetooth connection is established.
Waiting for Bluetooth connection.
Bluetooth module is not powered.
Internal radio is powered.
Internal radio is not powered.
Data is being transmitted from the associated port.
Data is being received by the associated port.
WirelessStatusLEDsindicatethestatus
oftheinternalBluetoothmodule
RadioStatusLEDsindicatethestatusofthe
internalUHFradioandHSPA/CDMAmodule.
SerialPortStatusLEDsindicatethestatus
ofserialport.
