Topcon HiPer V - Position and Tracking Status LEDs

Display Panel Operations

21
P/N:1001608‐01
PositionStatusBar indicatesthecurrenttypeofpositioncomputed.
TrackingStatusLED indicatesthenumberandtypeofsatellitescurrentlybeingtrackedbytheHiPerV.

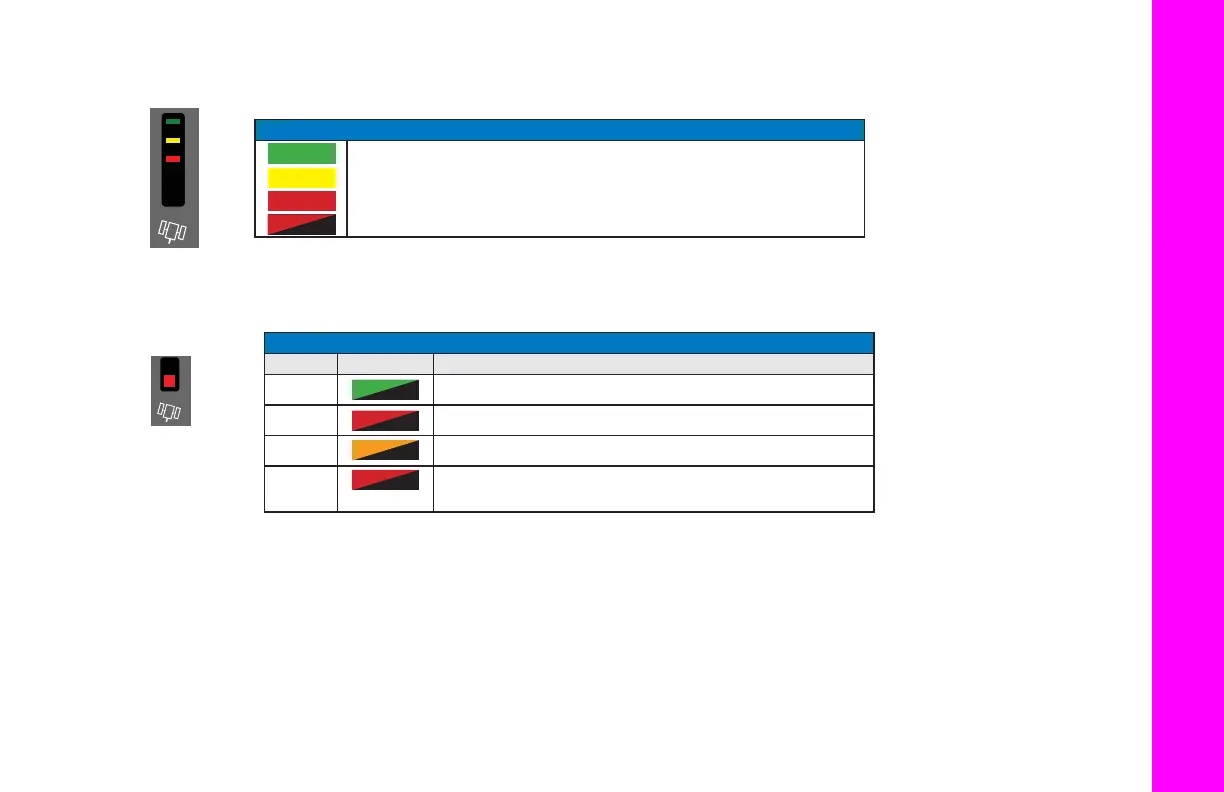

POSITIONING STATUS BAR
RTK fixed solution.
DGPS or RTK float solution.
Stand-alone or base mode.
Invalid or no position.
TRACKING STATUS
ORDER DISPLAY STATUS
1 Blink per tracked GPS satellite.
2 Blink if no satellite signal with SNR value >48 dB*Hz.
3 Blink per tracked GLONASS satellite.
4
Blinks once when no satellites or no solution.
Off otherwise.
