Topcon HiPer V - Power and Battery Status LEDs

Display Panel Operations

20
P/N:1001608‐01

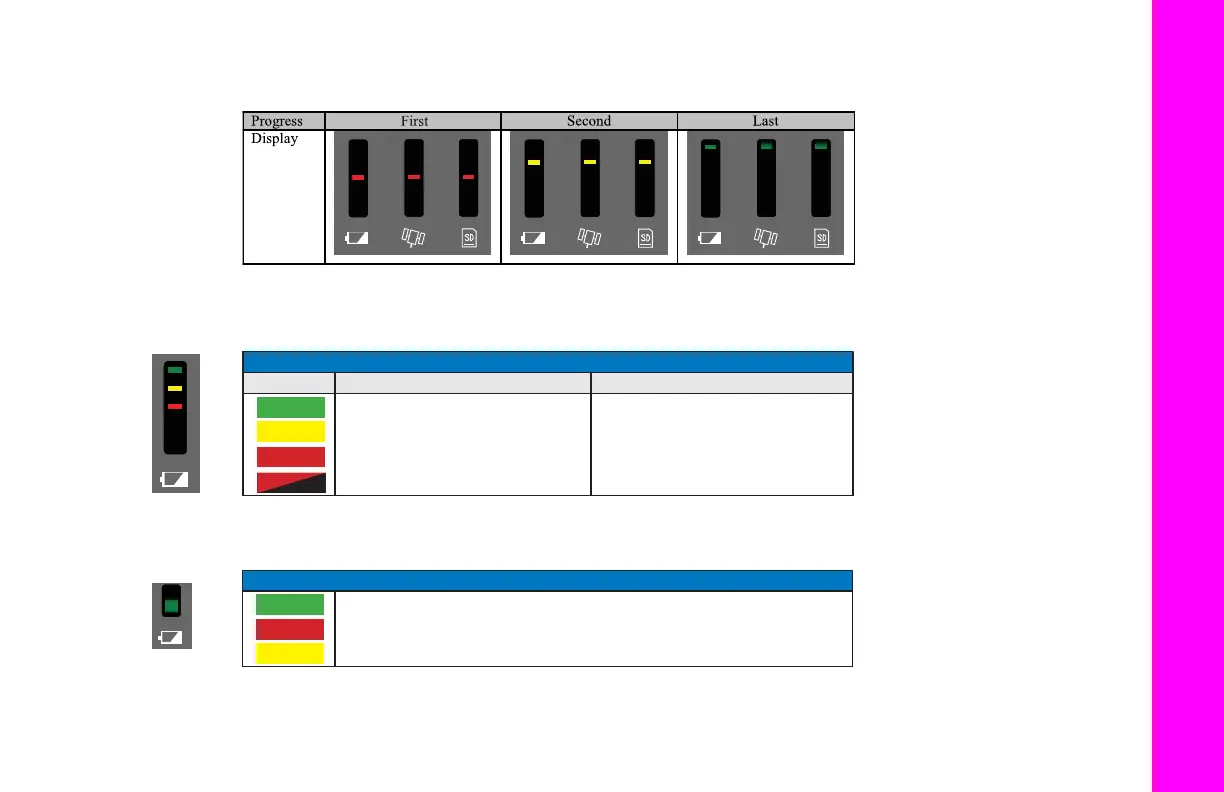

Boot d uringthebootprocess thedisplayindicatesbootprogress.
AvailablePowerBar indicatestheremainingbatterychargeorremainingvoltagewhenusingexternalpower.
BatteryStatusLED indicatesthecurrentlyavailablepowersourcesfortheHiPerV.
AVAILABLE POWER BAR
DISPLAY INTERNAL POWER REMAINING EXTERNAL POWER REMAINING
Greater than 50%
Greater than 25%
Greater than 10%
Less than 10%
Greater than 8V
Greater than 7.25V
Greater than 6.5V
Less than 6.5V
BATTERY STATUS
Only the internal battery is available.
Only external power is available.
Both the battery and external power are available.
