Topcon Motorgrader - Page 155

Slope Sensor Test
P/N 7010-0344
7-5
To check if Slope Sensor is measuring accurately:
1. Using a laser, smart Level or Auto Level, calculate the slope of
the ground. If you do not have an instrument to calculate slope,
proceed to step #6.

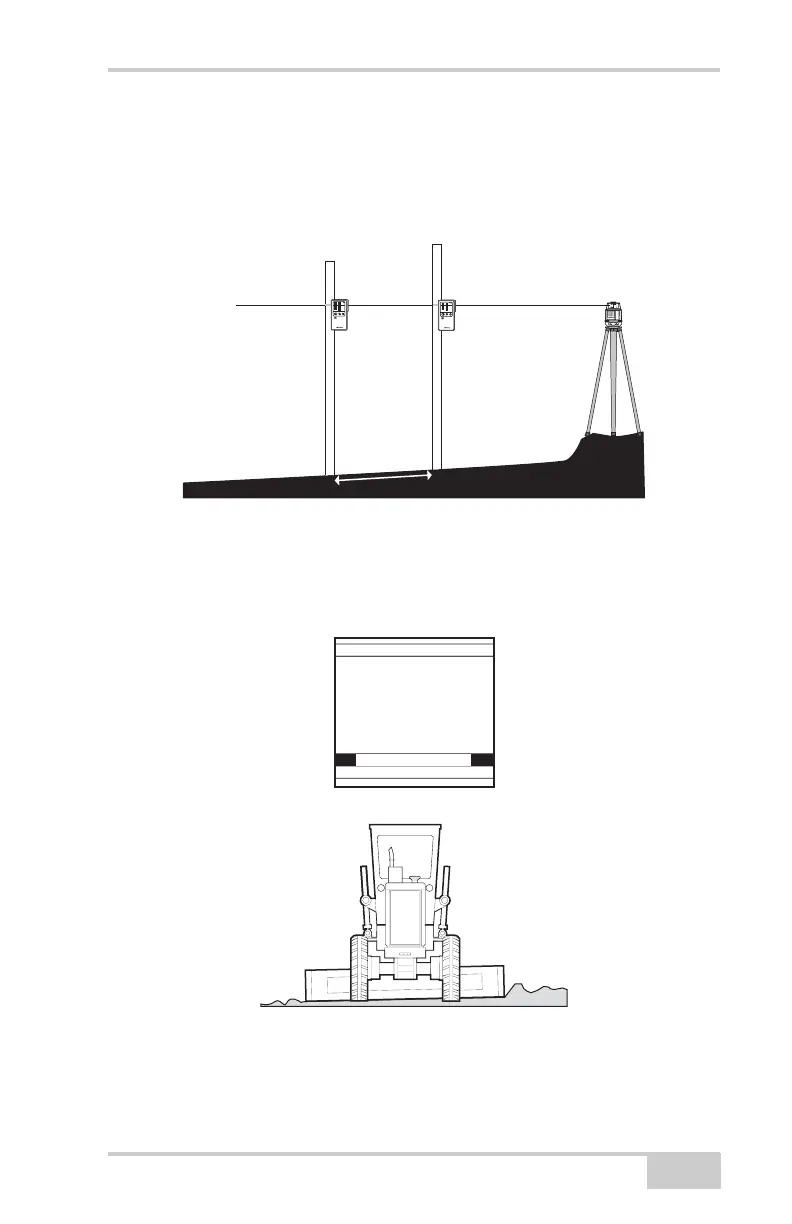

Figure 7-4.
2. Place the cutting edge lightly on the ground in the same direction
you measured the slope. The value displayed on the screen should
be within .2% of the calculated slope.
Figure 7-5.
--
--
--
--
--
--
--
--
--
--
--
--
--
