Operation
Motorgrader System Five Operator’s Manual
2-12
• Gain
Pressing the Gain button will allow the operator to speed up or
slow down the hydraulic response, or gain, of System Five. Gain
adjustments can be made "on the fly" in Automatic Control.
– If the blade seems to be moving too slow and the lights take
too long to reach grade, increase the Gain Setting Number,
which will cause the hydraulics to respond quicker.
– If the blade is moving too fast and the lights are skipping
through On Grade, decrease the gain.
There is a separate adjustment setting for Elevation Mode and Slope
Mode. Making an adjustment for Elevation Mode or Slope Mode on
the left side also changes the adjustment for that mode on the right
side.

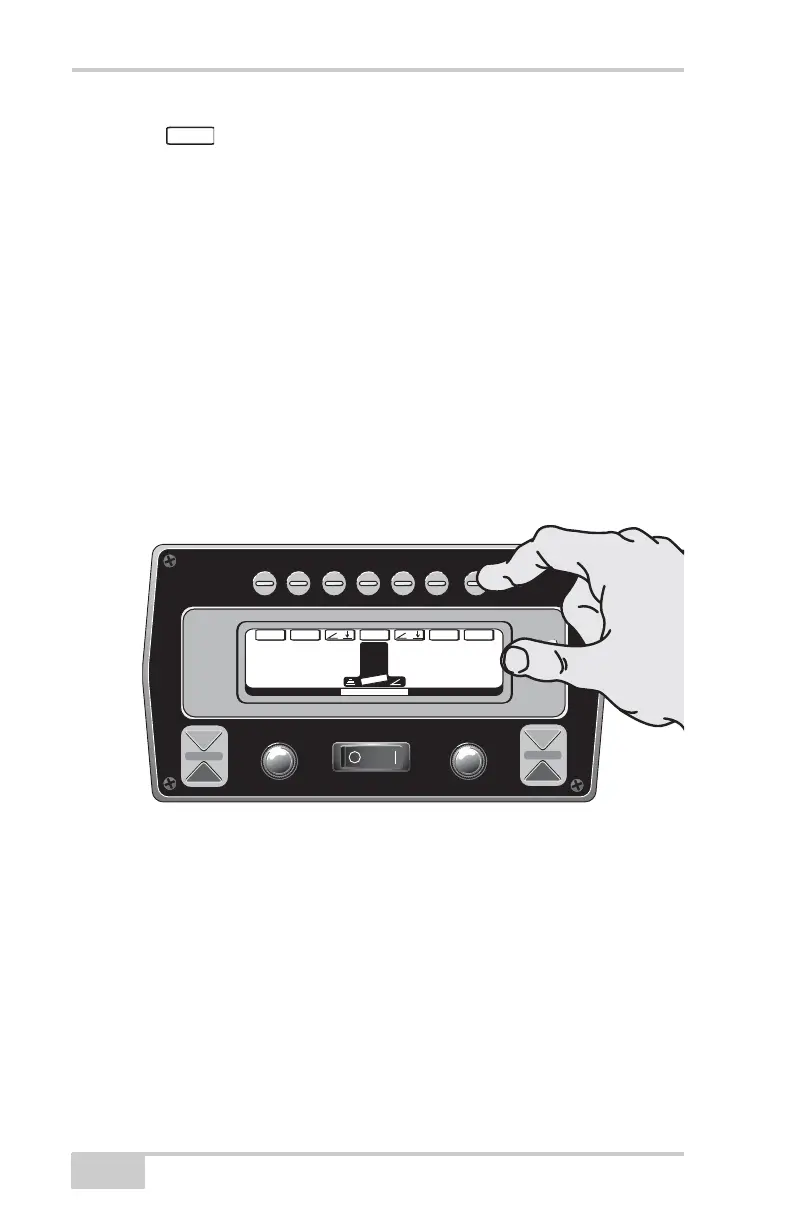

Figure 2-17.
G
A
IN
System
Five
System
Five
A
u
t
o
A
u
t
o
System
Five
System
Five
0.0
F
T
CONTROL MODE
G
A
INT
R
IM/
+
/
—
/S
E
TM
E
NU
2.0%
+
