Control Box
P/N 7010-0344
2-19
• System Test
This is a diagnostic test for all of the components that make up
the system. The Control Box will indicate if the device is in use
and if it is properly working (Refer to Troubleshooting section).
Figure 2-26.
• Beeper
Press the "ENTER" button to toggle between the beeper being
"ON" or "OFF". When the beeper is turned on, a short beep will
sound when System Five gets an out-of-range signal from the
Sonic or Laser Sensor.
E
NT
E
R
E
XIT

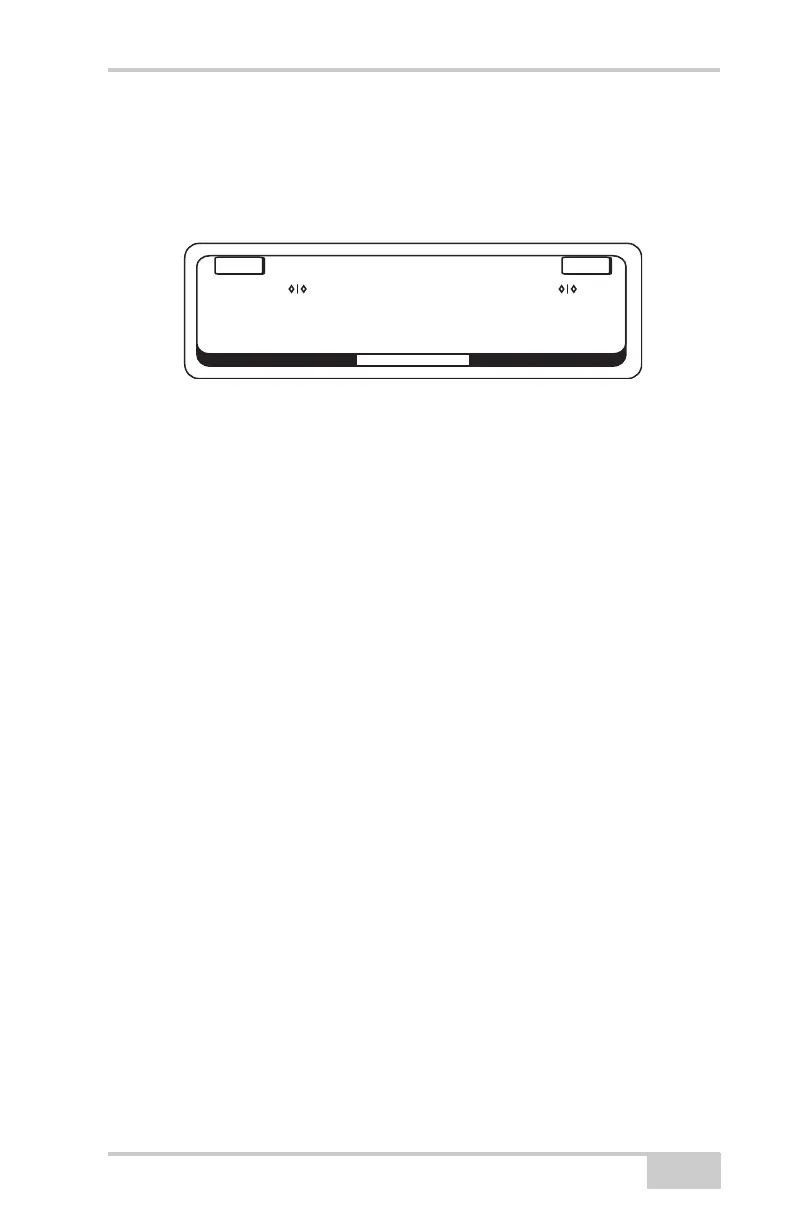

SYSTEM TEST
KNOB
VALVE
LASER
SONIC
MAINFALL
ROTATION
SLOPE
KNOB
VALVE
LASER
SONIC
PASS
+ 0
ERROR
- 1.6
+ 0
+ 0.2
PASS
ERROR
3.12
