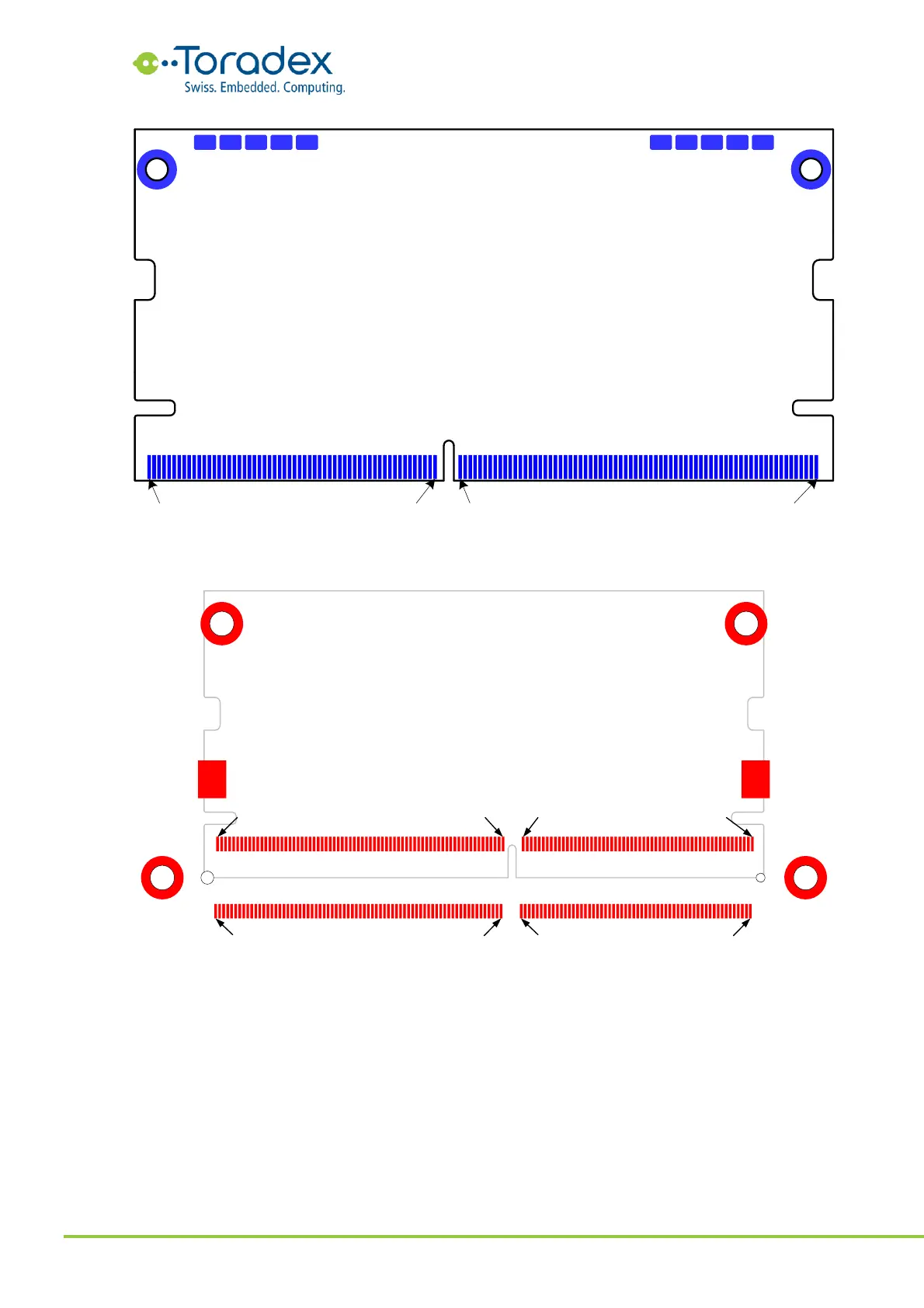

Figure 2: Pin numbering schema on the bottom side of the module (bottom view)
Figure 3: Pin numbering schema on the module connector land pattern (top view)
Pin 2
Pin 146 Pin 144
Pin 260
Pin 1 Pin 143 Pin 145 Pin 259
Pin 146
Pin 144 Pin 260
Pin 2
