InfoCenter
ScreenFunctions
•Pressthecorrespondingbuttontoviewscreen1or
screen2,tostopaudiblealarm,toviewfaultscreen
ortoexit(Figure15).
•Ifafaultappearsonthescreen,pressanykeytoview
theactivefaultadvisory.Contactyoursupervisor
ormechanictorelayfaultadvisoryanddetermine
courseofaction.
•Pressthearrowkeystonavigatethefaultscreen.
•Pressanykeytorevealtheinformationkeysonthe
screen.

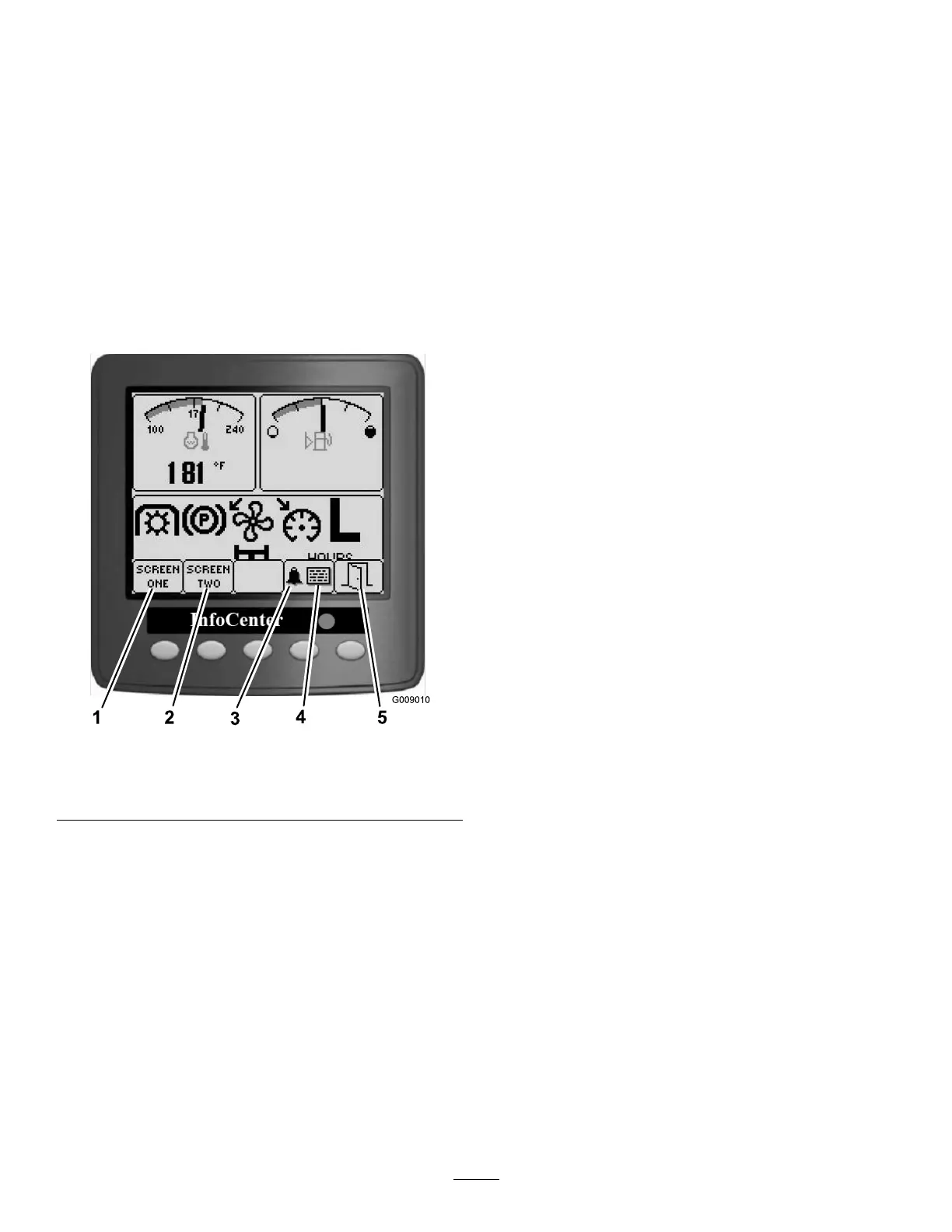

Figure15
1.Screen1
4.Faultscreen
2.Screen2
5.Exit
3.Audiblealarm
OperatorInformation
Therearetwoscreensthatwillmonitoranddisplaythe
machinefunctionsthattheoperatorcanuse.
Screen1willdisplay:
TopLeftGauge-EngineCoolantTemperature
TopRightGauge-FuelLevel
LefttoRightontheBottomHalf
1.PTOEngaged
2.ParkingBrakeEngaged
3.FanReversing
4.CruiseControlEngaged
5.H/L(Hi/Lowspeedrange)
BottomLeftCorner-AirIntakeHeaterActive
BottomMiddle-TractionAssistEngaged
BottomRight-MachineHours
Screen2willdisplay:
TopLeftCorner-EngineRPM
TopRightCorner-HydraulicOilTemperature
LowerLeftCorner-BatteryVoltage
LowerRightCorner-ServiceDue
EngineCoolantTemperatureIndicator
Thisdisplayindicatestheenginecoolanttemperature
(Figure16).
ParkingBrakeIndicator
Thisdisplayindicatesthattheparkingbrakeisactuated
(Figure16).
PTOIndicator
Thisdisplayindicates(Figure16)whenthePTOin
engaged.
FanReverseIndicator
Thisdisplayindicates(Figure16)whenthefanis
operatinginreverse.Thefanspeedwillbecontrolled
bythehydraulicoiltemperature,airintaketemperature
orenginecoolanttemperatureandwillautomatically
reverse.Areversecycleisautomaticallyinitiated,tohelp
blowdebrisoffoftherearhoodscreen,wheneitherthe
enginecoolanttemperatureorhydraulicoiltemperature
acertainpoint.
CruiseControlIndicator
Thisdisplayindicates(Figure16)whenthecruise
controlisinoperation.
FuelLevelIndicator
Thisdisplayindicatestheleveloffuelinthetank
(Figure16).
