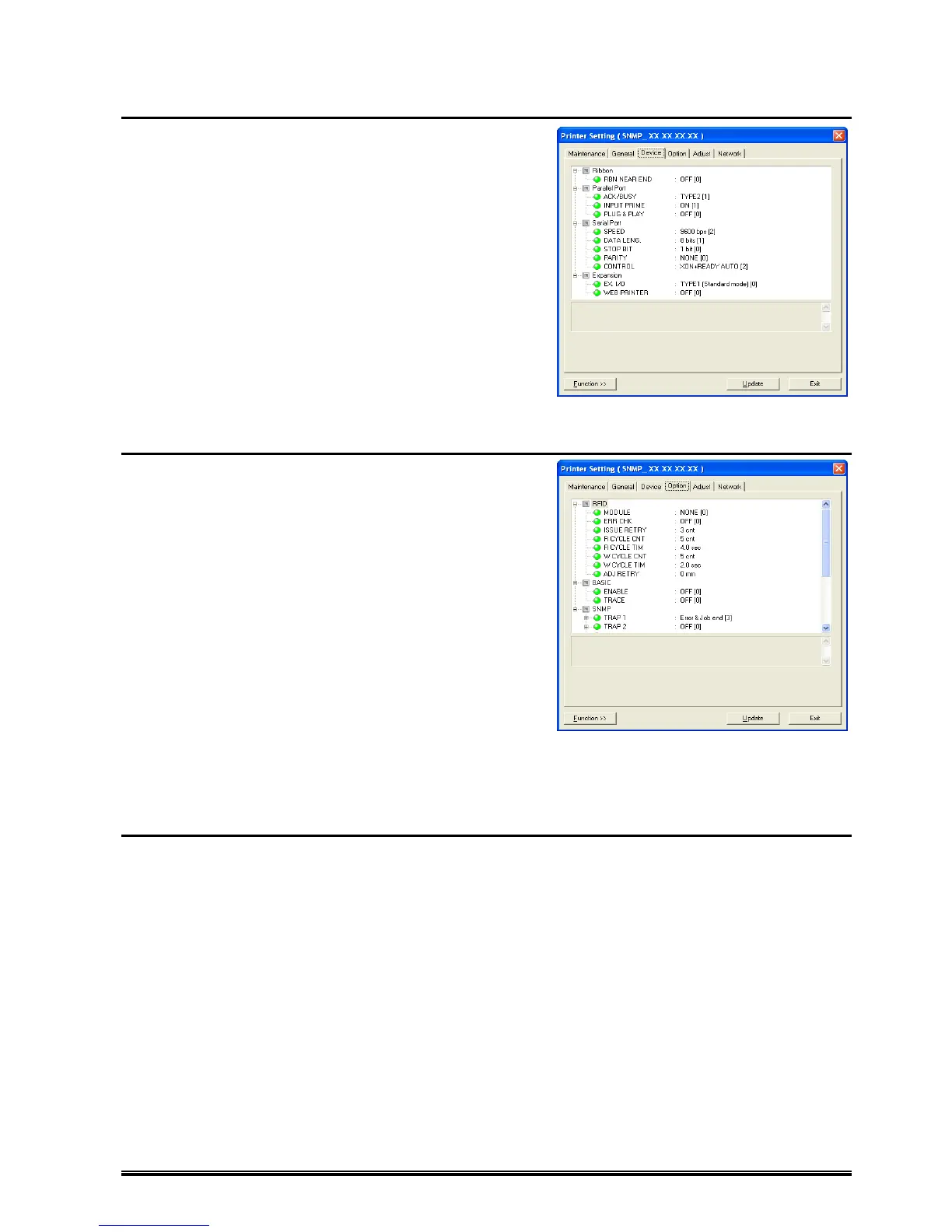

[Device] Tab
Displays and sets the items about device information.
There are four major setting items: [Ribbon], [Parallel Port],
[Serial Port], [RTC], and [Expansion].
Ribbon
Selects the condition for ribbon near end detection.
Parallel Port
Makes setting for parallel port.
Serial Ports
Makes setting for serial port.
RTC
Makes setting for RTC.
Expansion
Selects the expansion I/O operation mode and selects
whether or not the Web server function is active.
[Option] Tab
Displays and sets the items about option information.
There are three major setting items: [RFID], [BASIC],
[Stabilizer], and [SNMP].
RFID
Makes setting for RFID.
BASIC
Makes setting for BASIC interpreter and BASIC
interpreter trace.
Stabilizer
Makes setting for stabilizer.
SMNP
Makes setting for SMNP.
For Trap 1 to 10, sets conditions under which trap
notifications are sent and destination IP address.
[Option] Tab – Setting for SNMP
TRAP1 to 10
Sets the trap condition under which the printer sends trap notifications.
OFF : Does not send trap notifications.
Error : Sends a trap notification when an error occurs.
Job end : Sends a trap notification when a print job completes (for each print job).
Error & Job end : Sends a trap notification when a print job completes (for each print job) and when
an error occurs.
Note: Job end is effective when printing is performed using the printer driver.
IP ADDRESS
Specifies an IP address of a computer to which the printer sends a trap notification. The IP address of a
computer, on which the Surveillance Tool (TEC Barcode Net Admin) is installed, is specified.
