DISASSEMBLY AND REPLACEMENT
4 - 35
4.6.3 Duct unit

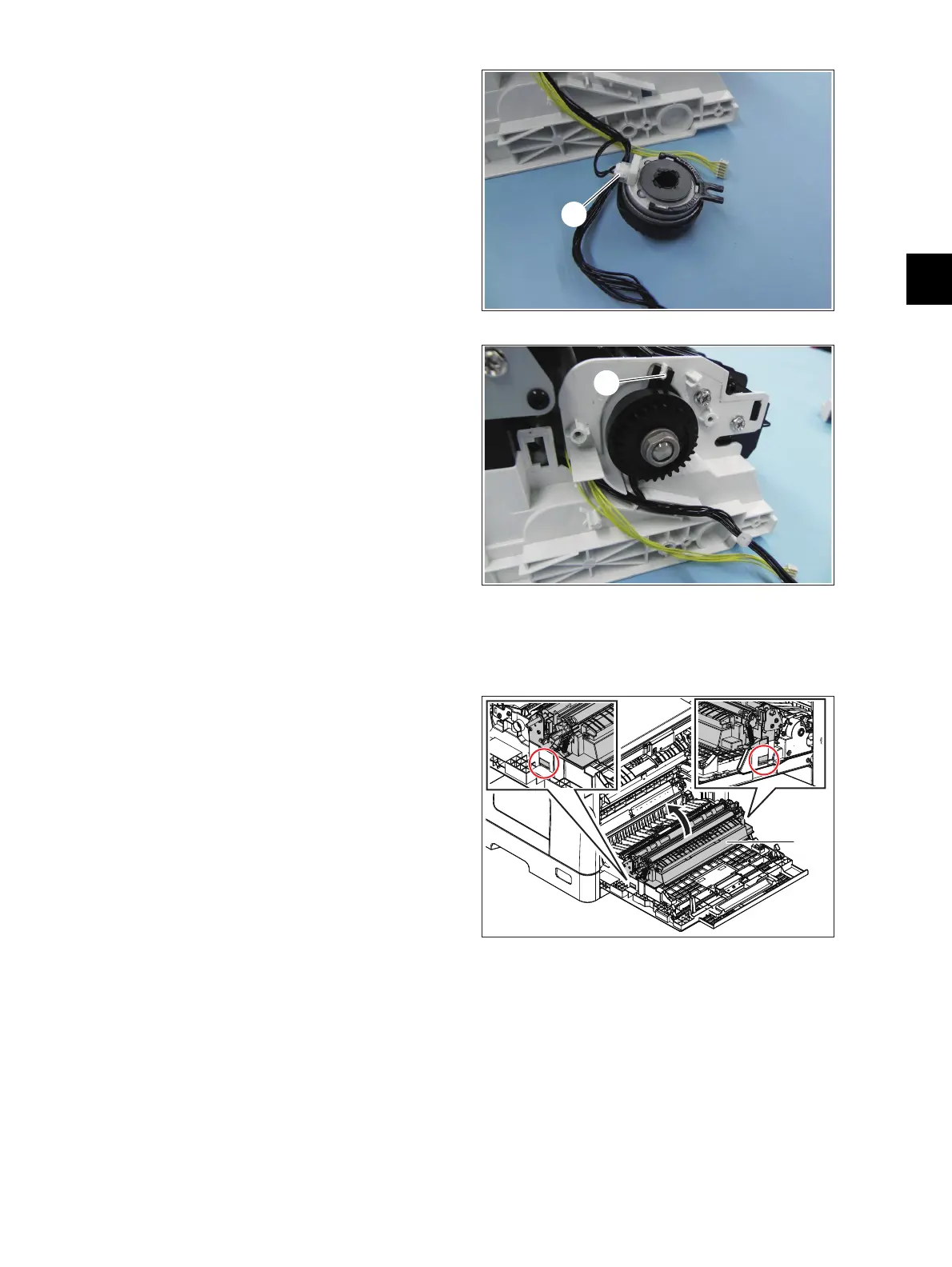

(4) Disconnect 1 connector [5].
Fig. 4-87
Notes:
When attaching the bypass clutch, align the
clutch with the clutch stopper [6] when
attaching it.
Fig. 4-88
(1) Open the right cover.
(2) While releasing 2 latches, take off the duct
unit [1].
Fig. 4-89
[5]
[6]
[1]
