e-STUDIO2006/2306/2506/2007/2307/2507/2303A/2303AM/2803AM/2309A/2809A
© 2013-2017 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY AND REPLACEMENT
4 - 42

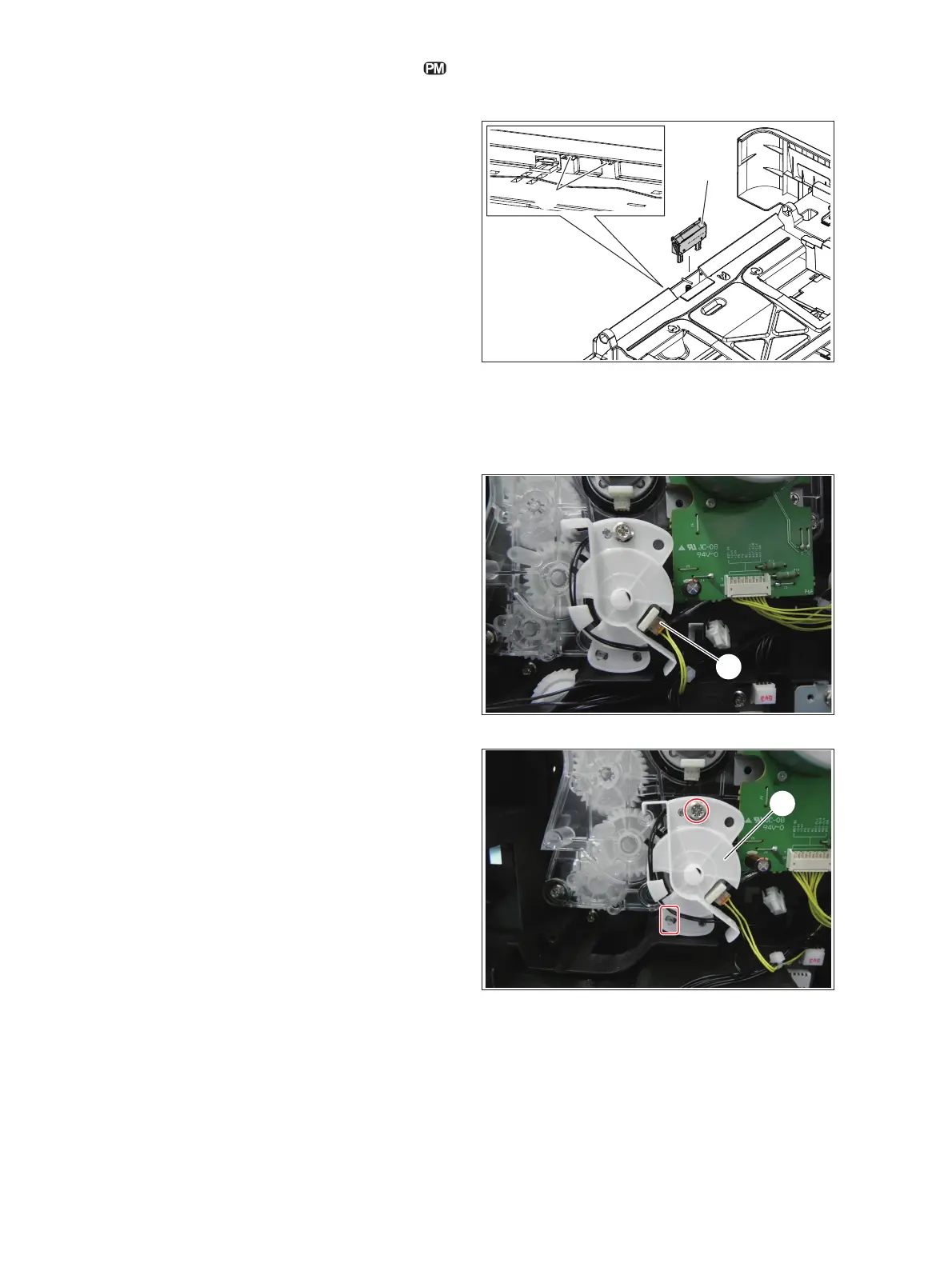

4.6.11 Drawer separation pad
4.6.12 Drawer feed clutch (CLT2)
(1) Take off the drawer feed roller.
 P. 4-40 "4.6.9 Drawer feed roller <20L/
23L/25L/20H/23H/25H>"
(2) Release 2 latches [1] on the bottom of the
drawer and take off the drawer separation
pad [2].
Fig. 4-106
(1) Take off the rear cover.
 P. 4-5 "4.1.9 Rear cover <20L/23L/25L/
20H/23H/25H>"
 P. 4-6 "4.1.10 Rear cover <23LA/23LM/
28LM/23HA/28HA>"
(2) Disconnect 1 connector [1].
Fig. 4-107
(3) Remove 1 screw, release 1 latch and then
take off the clutch cover [2].
Fig. 4-108
[1]
[2]
To Next Page
