TROUBLESHOOTING
5 - 128
13)Skew (slantwise copying)

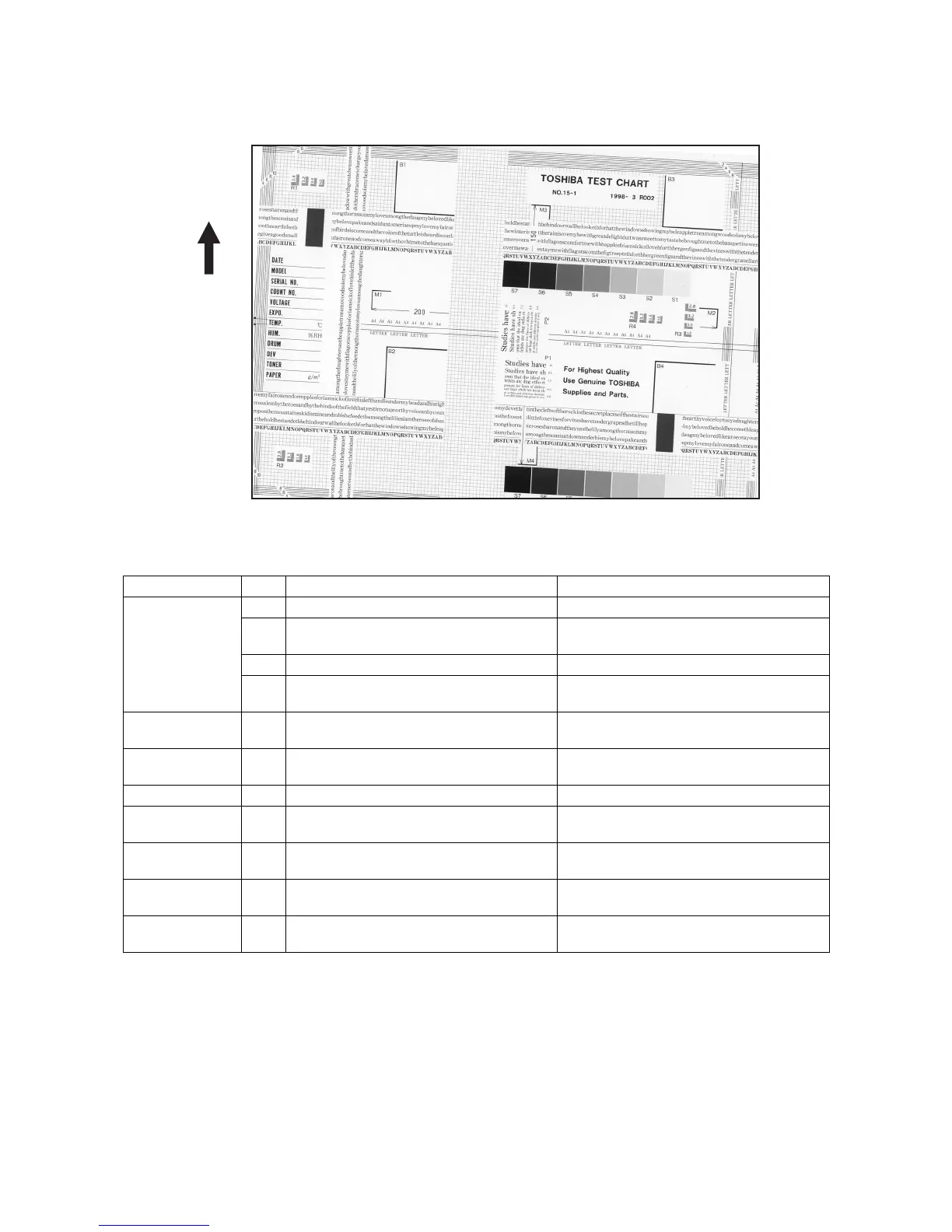

Fig. 5-13
Cause/Section Step Check items Measures
Drawer/LCF 1 Is the drawer or LCF properly installed? Reinstall the drawer or LCF properly.
2 Is too much paper loaded in the drawer or
LCF?
Reduce paper to 550 sheets or less.
(2500 sheets or less/stack for LCF)
3 Is the paper corner folded? Change the paper direction and reinsert it.
4 Are the drawer or LCF side guides prop-
erly set?
Adjust the side guides.
Paper feed roller 5 Is the surface of paper feed roller dirty? Clean the roller surface with alcohol, or
replace the roller.
Rollers 6 Is each roller improperly fixed to the
shaft?
Check and reinstall E-rings, pins, clips
and setscrews.
Aligning amount 7 Is the aligning amount proper? Increase the aligning amount.
Registration
roller
8 Is the registration roller spring removed? Mount the spring correctly. Clean the
roller if it is dirty.
Pre-registration
guide
9 Is the pre-registration guide improperly
installed?
Correct it.
2nd transfer
front guide
10 Is the 2nd transfer front guide installed
properly?
Correct it.
RADF 11 Is the RADF installed and adjusted prop-
erly?
Reinstall and readjust it.
Feeding direction
