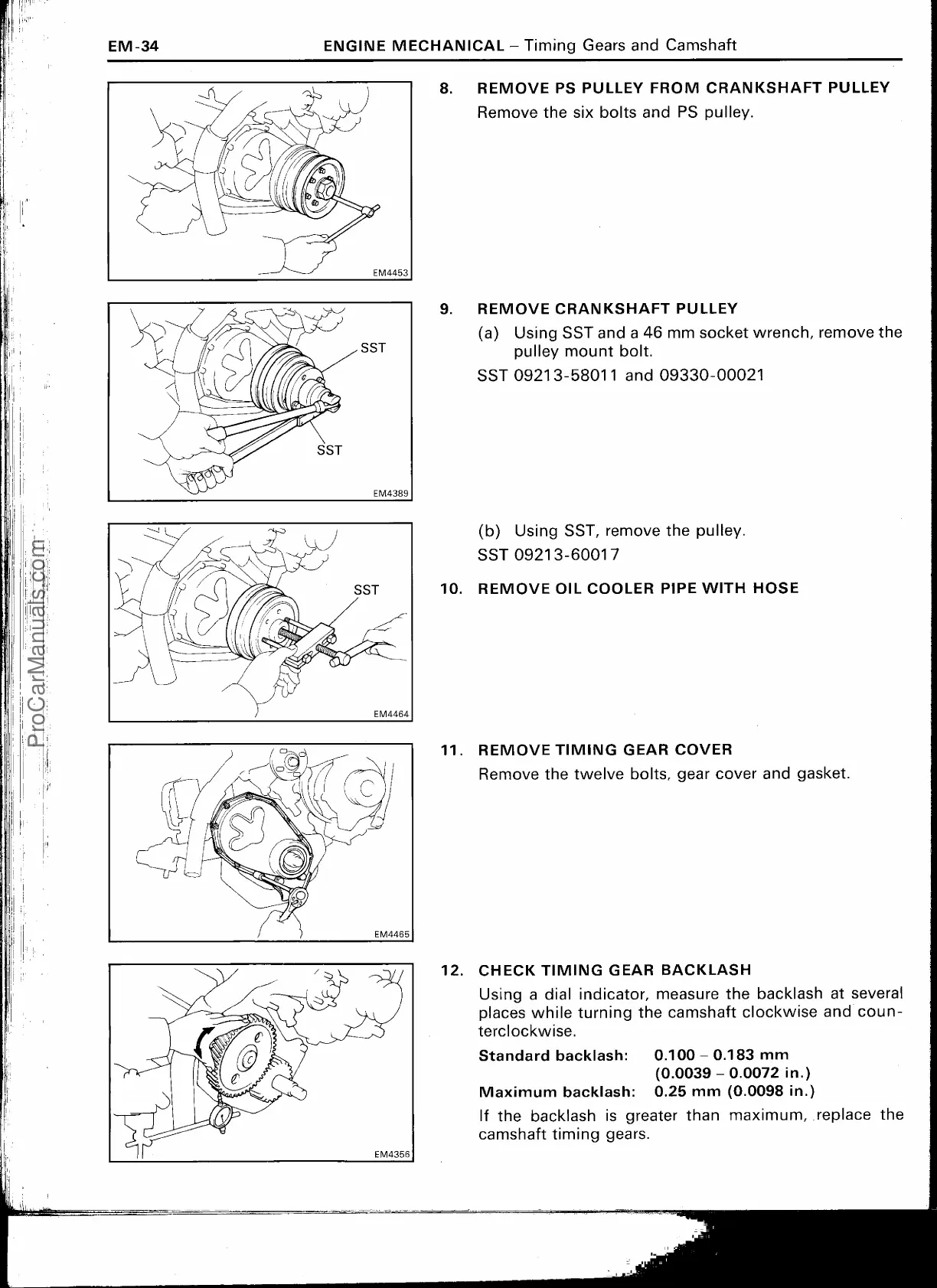

8.
REMOVE PS PULLEY FROM CRANKSHAFT PULLEY
Remove the six bolts and PS pulley.
9.
REMOVE CRANKSHAFT PULLEY
(a) Using SST and a 46 mm socket wrench, remove the
pulley mount bolt.
SST 09213-58011 and 09330-00021
(b) Using SST, remove the pulley.
SST 09213-60017
10. REMOVE OIL COOLER PIPE WITH HOSE
11. REMOVE TIMING GEAR COVER
Remove the twelve bolts, gear cover and gasket.
12. CHECK TIMING GEAR BACKLASH
Using a dial indicator, measure the backlash at several
places while turning the camshaft clockwise and coun-
terclockwise.
Standard backlash:
0.100 — 0.183 mm
(0.0039 — 0.0072 in.)
Maximum backlash: 0.25 mm (0.0098 in.)
If the backlash is greater than maximum, replace the
camshaft timing gears.
EM-34
ENGINE MECHANICAL — Timing Gears and Camshaft
