14. REMOVE CRANKSHAFT TIMING GEAR
(a)
Using a screwdriver and hammer, tap out the
crankshaft pulley set key.
(b)
Using SST, remove the timing gear.
SST 0921 3-6001 7 (09213-00020, 09213-00030,
09213-00090)
15. IF NECESSARY, REMOVE OIL NOZZLE
(b) Carefully pull out the camshaft and timing gear as-
sembly.
NOTICE: Be careful not to damage the camshaft
bearing.
W,

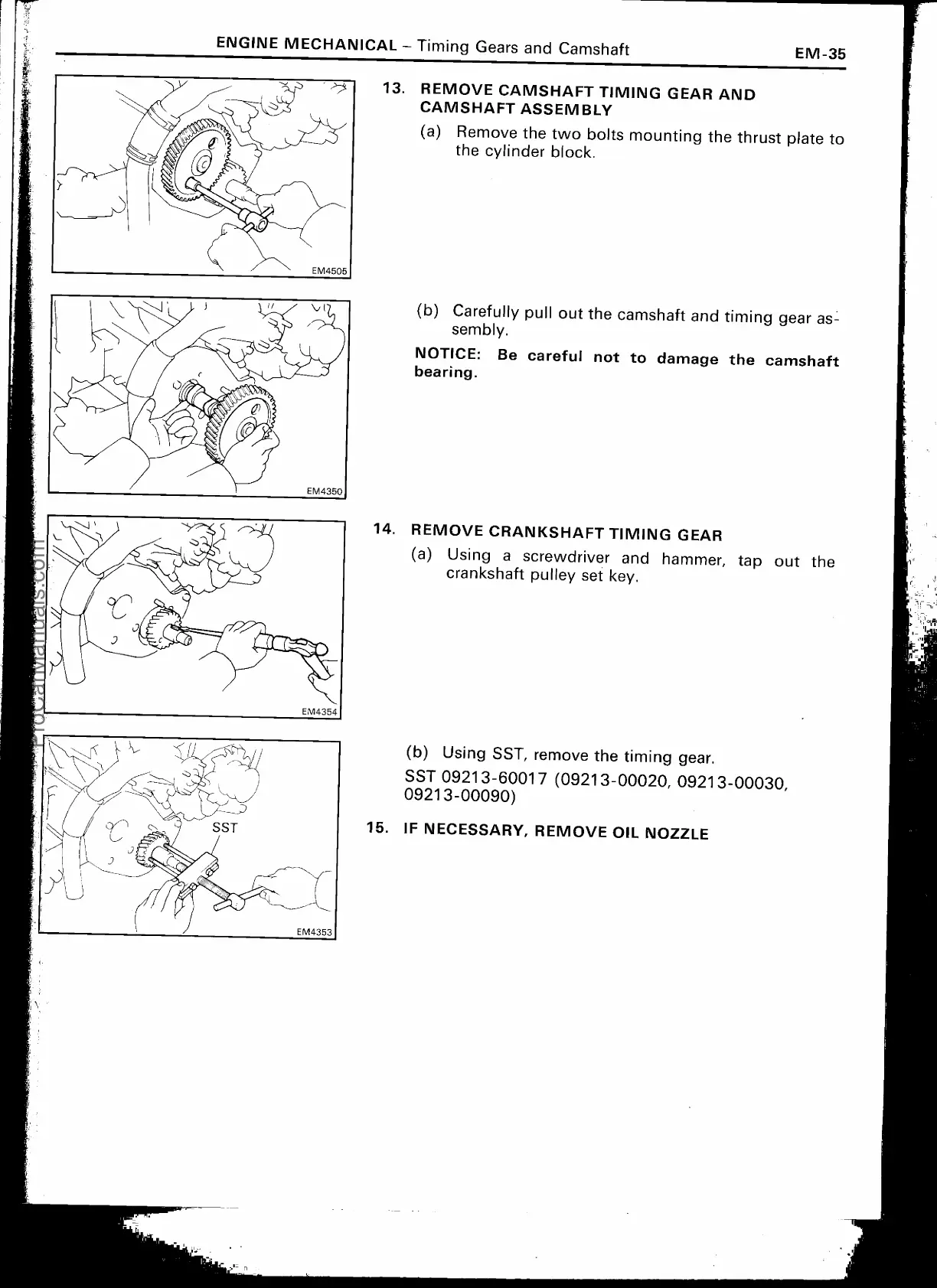

ENGINE MECHANICAL — Timing Gears and Camshaft
EM-35
13. REMOVE CAMSHAFT TIMING GEAR AND
CAMSHAFT ASSEMBLY
(a) Remove the two bolts mounting the thrust plate to
the cylinder block.
EM4505
