TP-Link TX-VG1530

TX-VG1530
N300 Wireless VoIP GPON Router User Guide

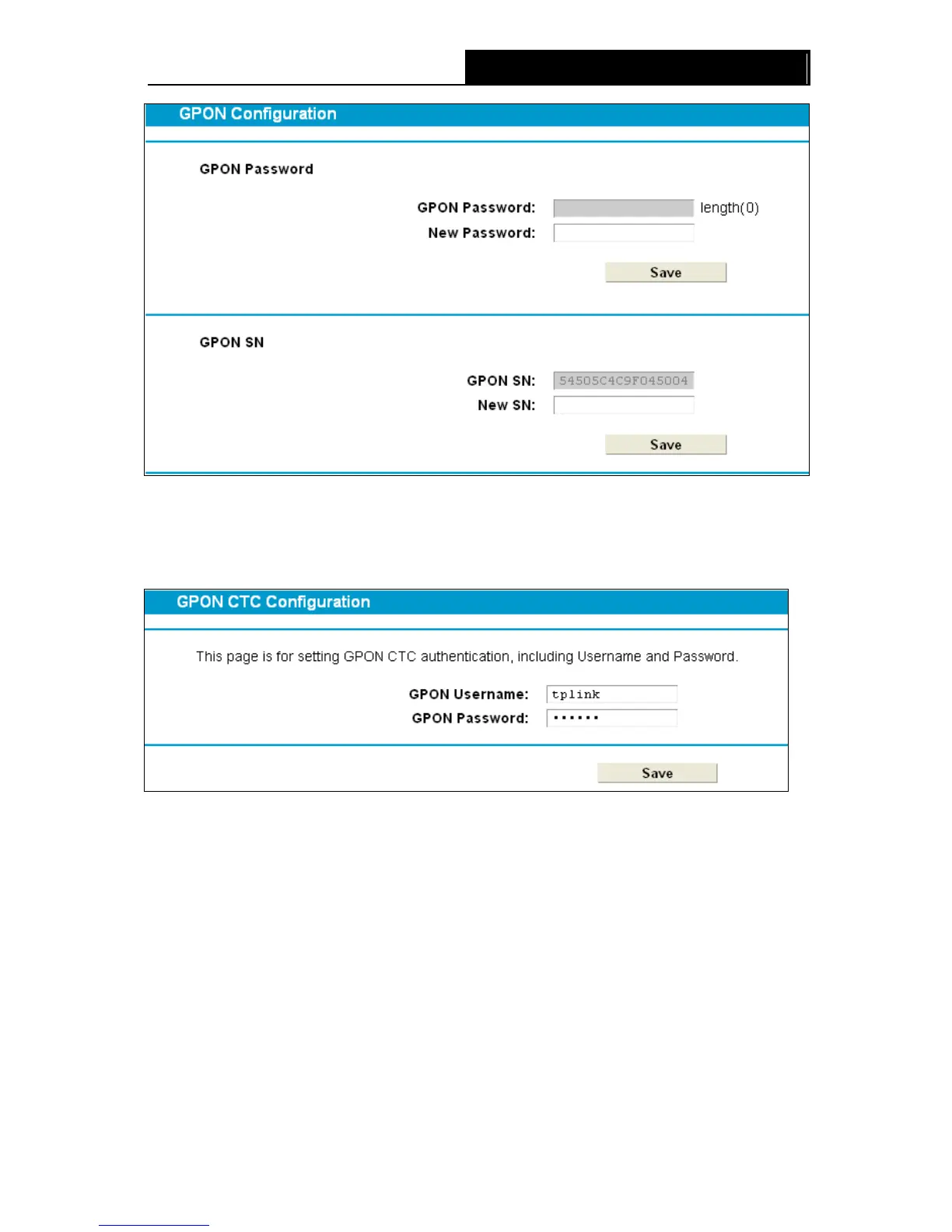

Figure 3-6
If CTC authentication
is required, choose Network
→
GPON CTC Settings in the main menu, the
GPON Configuration screen will appear, enter the GPON Username and GPON Password
provided by your ISP and then click Save.
Figure 3-7
4. Choose Pon
→
Connect Status in the main menu, the GPON Status screen will appear. Click
Refresh to update this page, then check whether the ONU State is registered.
13
