Chapter 5 UCM Wiring and Addressing
110 BMTW-SVN01F-EN
IMPORTANT
UCM ground loops will cause a malfunction.

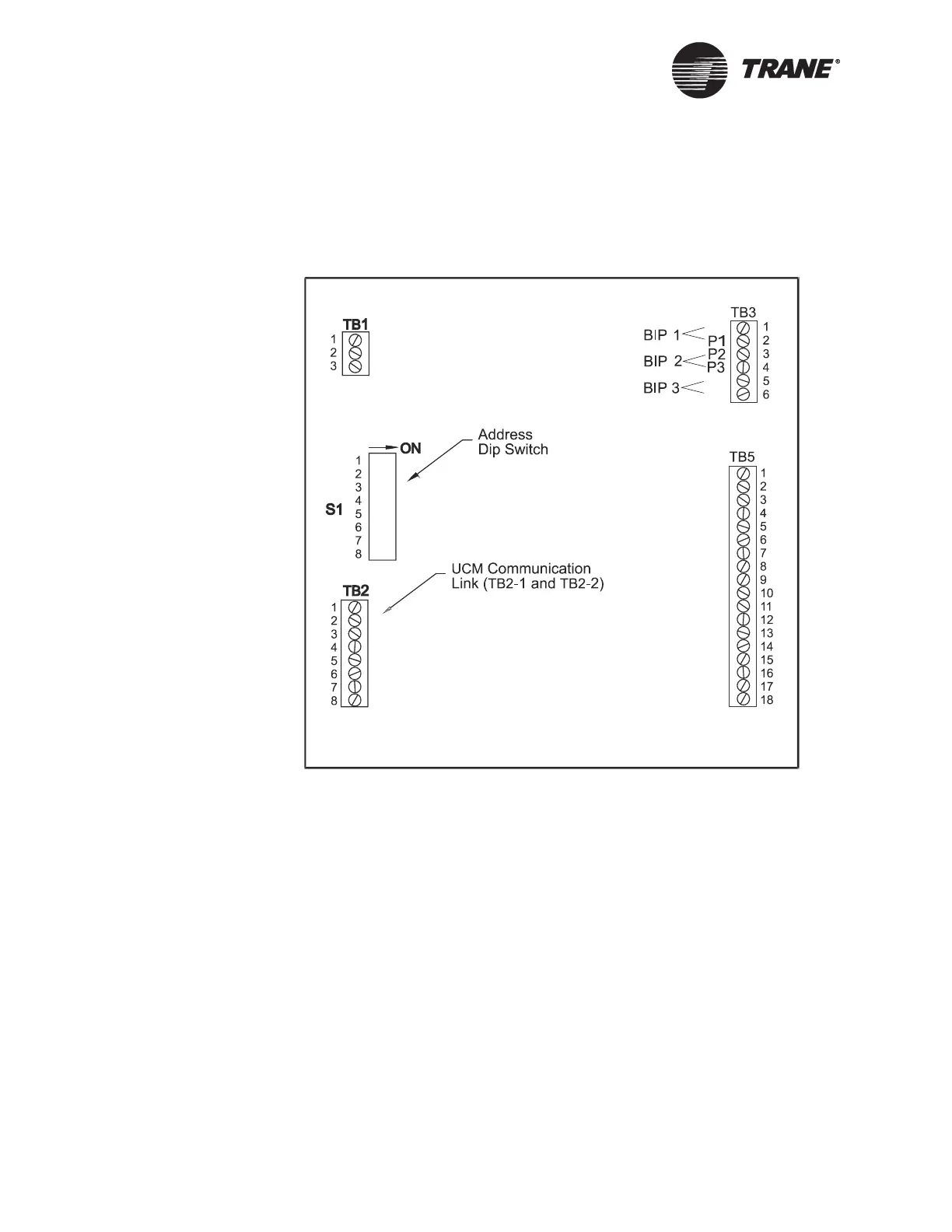

Figure 52. Location of Address DIP Switch and UCM Communication
Link on the TCM
Device Addressing
Each UCM must have a unique address that is set using a DIP switch on
the TCM.
• For the location of the address DIP switch on the TCM, refer to
Figure 52.
• For TCM address DIP switch settings, refer to Table 19 on page 111.
• For the TCM configuration DIP switch settings for S1-7 and S1-8,
refer to Table 20 on page 111.
