UCM Communication Cards
BMTW-SVN01F-EN 53

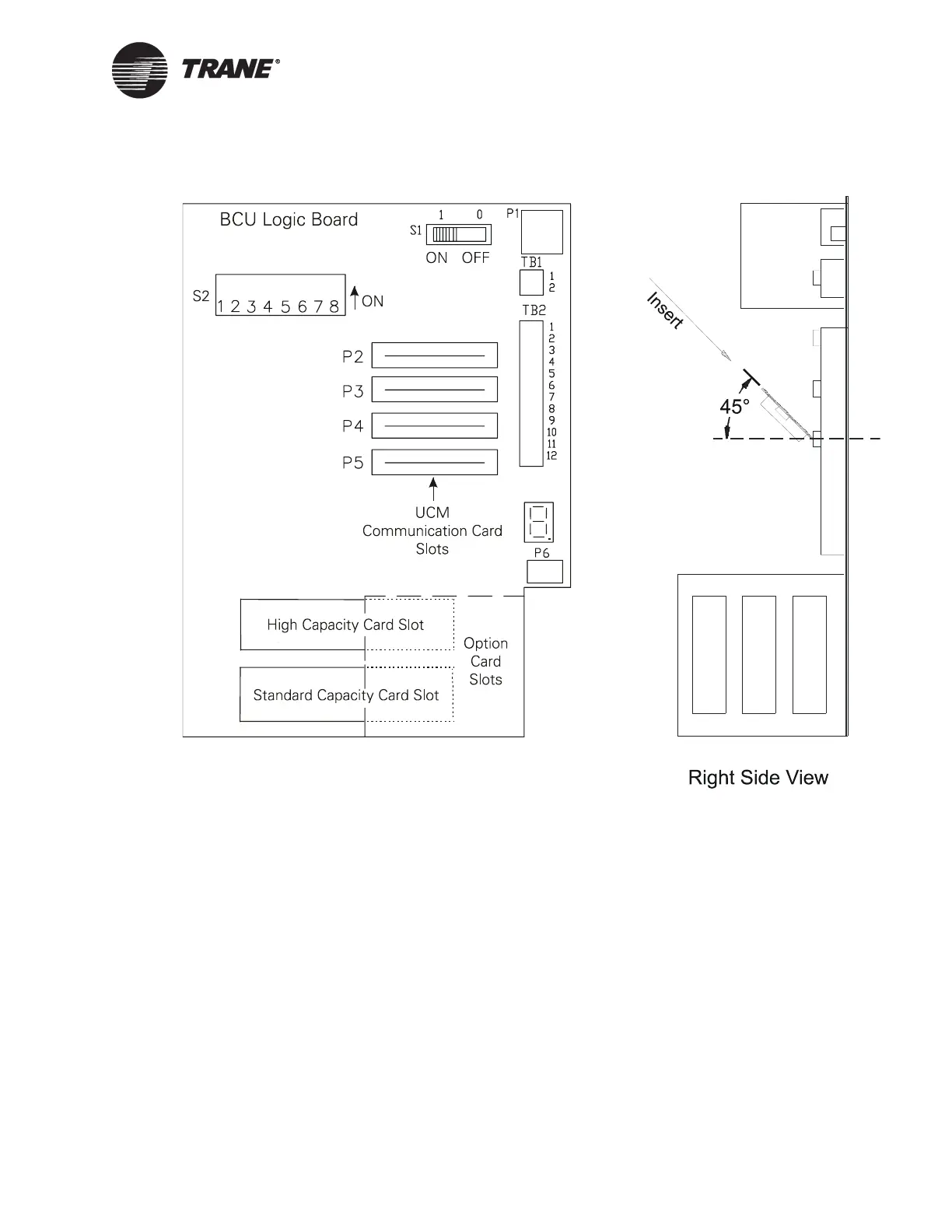

Figure 22. UCM Communication Card Installation
Uninstalling UCM Communication Cards
1. Turn off power at switch S1.
2. Release the two clips on each side of the module.
3. Slowly move the card from the horizontal alignment (0 degrees) to a
45-degree angle.
4. Slowly pull the card from the slot.
