Reset Tab

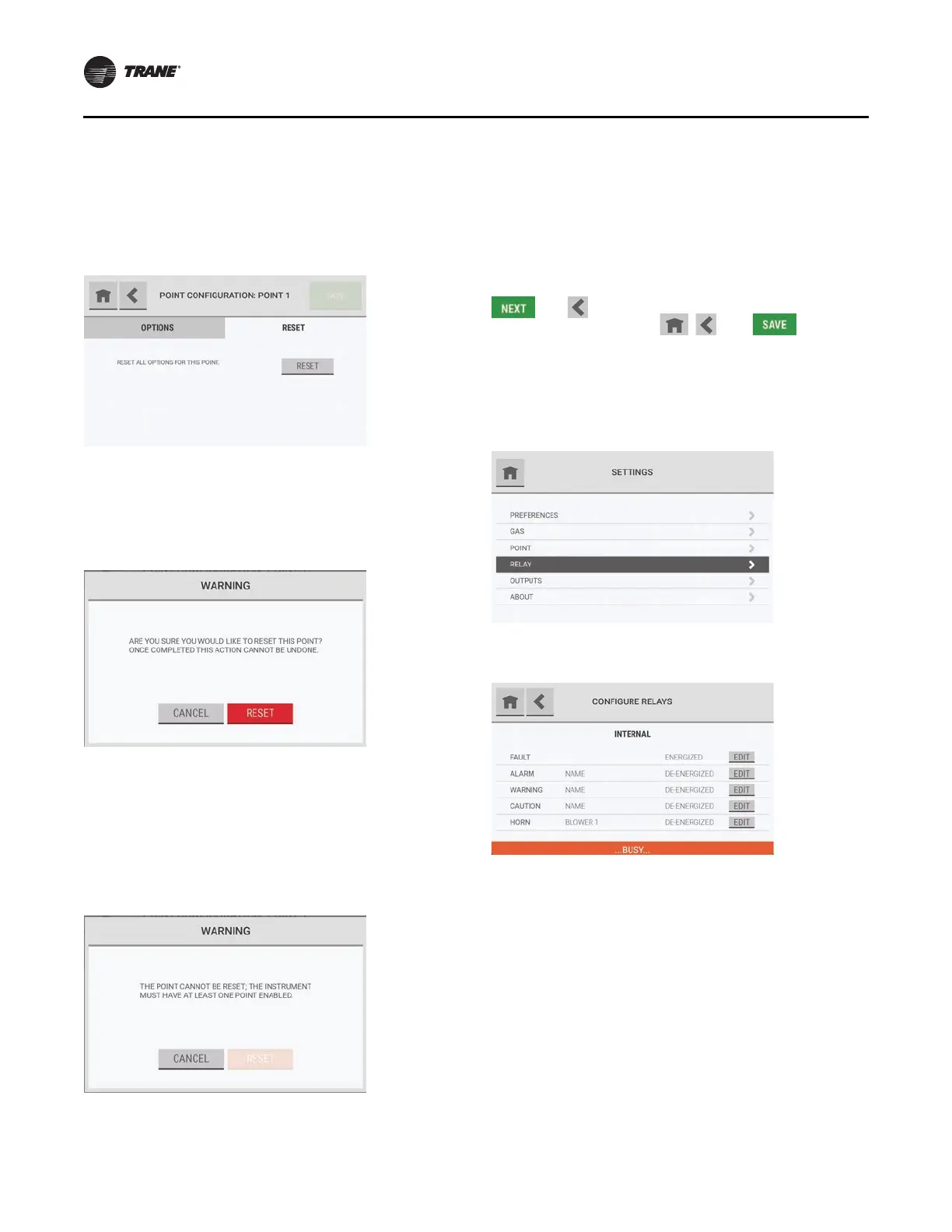

Use the Reset tab to reset the point name and disable the
point.
1. On the Point Configuration: Point # screen,
select
the Reset tab.
2. Select Reset.
3. On the warning pop-up, do one of the following:
a. To return to the Point Configuration: Point #
screen without resetting the p
oint, select Cancel.
b. To reset the point name, di
sable th
e point, and
return to the Settings screen, select Reset.
Note: If only one point is configured, it cannot be
deleted. At least one point must be configured
for the system to function. If an attempt is made
to delete the only configured point, a warning
pop-up indicates that the action cannot be
completed.
Select Ca
ncel to return to the Point Configuratio
n:
Point # screen.
When the configuration changes have been saved, the
Settings screen shows.
Relay Configuration
Use the Relay option to change the relay configuration
settings or test a relay.
Note: Except for the buttons that show
in the screen
headers, the screens and steps used to change the
relay configuration settings are the same as those
used during the initial setup.
During the initial setup, the scr
een headers show the
and buttons. During routine operation, the
screen headers show the , , and buttons.
When a change is made to the configuration, the Save
button becomes active.
On th
e Settings screen,
select Relay.
To adj
ust the relay configuration settings, go to “Relay
Configuration,” p. 21, and do Step 1 through Step 5.
While the configuration is being updated, a Busy message
shows at the bottom of the Configure Relays screen.
