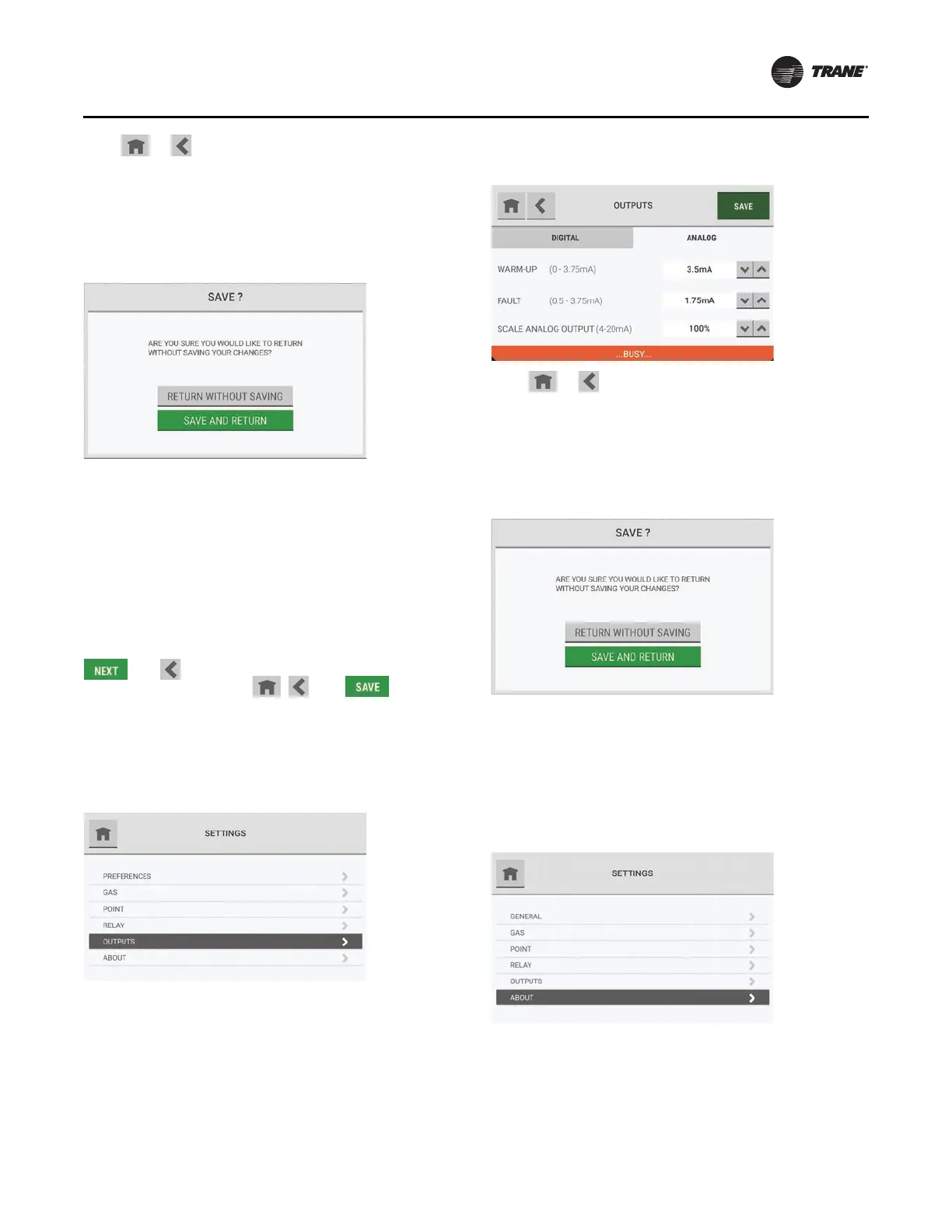

Routine Operation
RMWH-SVX001C-EN 39
If the or button is selected while the Busy
message shows, a pop-up asks whether to abandon the
configuration changes.
• T
o return to the Configure Relays screen without
saving th
e changes, select Return without Saving.
• To save the changes and return to the Configure
Relay screen, select Save and Return.
When the configuration changes have been saved, the
Settings screen shows.
Communications Output
Use the Outputs option to change the configuration
settings for digital and analog outputs.
Except for the buttons that show in the scree
n headers, the
screens and steps used to change the output settings are
the same as those used during the initial setup.
During the initial setup, the scree
n headers show the
and buttons. During routine operation, the
screen headers show the
, , and buttons.
When a change is made to the configuration, the Save
button becomes active.
On
the Settings screen, select Outputs.
To
adjust the output configuration settings, go to
“Communications Output,” p. 22, and do Step 1 to Step 3.
While the configuration is being updated, a Busy message
shows at the bottom of the Outputs screen.
If the or button is selected while the Busy
message shows, a pop-up asks whether to abandon the
configuration changes.
• To return to the Outputs
screen with
out saving the
changes, select Return without Saving.
• To save the changes and return to the Outputs screen,
select Save and Return.
When the configuration changes have been saved, the
Settings screen shows.
About
The About option shows information about the device
and its component parts.
On the Settings screen,
select About.
