Initial Setup
18 RMWH-SVX001C-EN

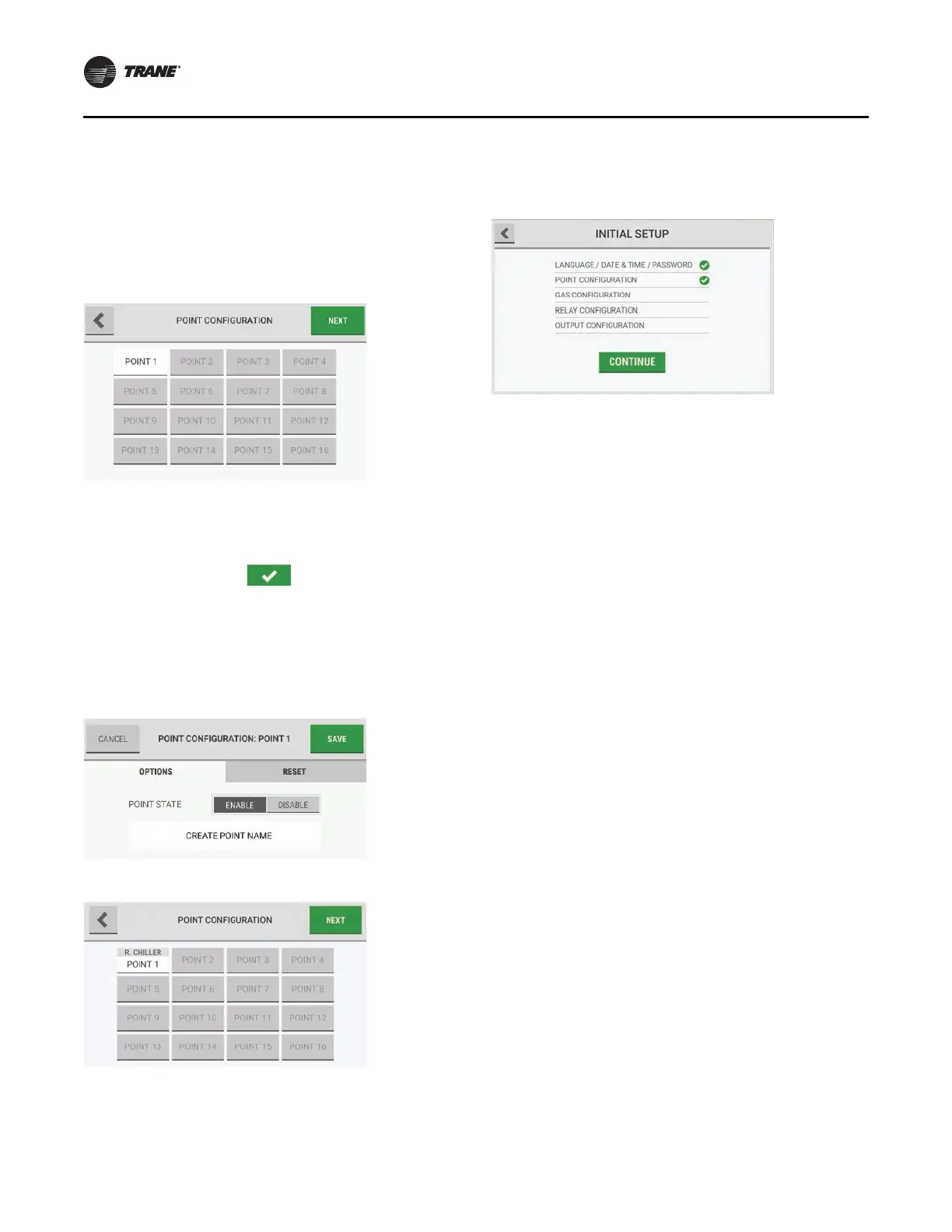

Point Configuration
Note: At initial setup, all points except Point 1 are
disabled by default and are inactive on the Point
Configuration screen. Configuration of Point 1 is
required for device i
nitialization.
1. On the Point Configuration sc
reen, select Point 1.
2. Select Next.
3. On the Point Configuration: Point # screen, select
Enable.
4. Select the Name field, and use the alphanumeric
keypad pop-u
p to assign a name with up to
18 characters. Select
to accept the value.
The entire 18 characters will only show on the Point
Detail screen. Only 10 characters will
show on the
Point Configuration screen.
5. Select Sa
ve.
6. Repeat Step 1 thro
ugh Step 5 until all of the necessary
poin
ts have been configured.
7. On the Point Configuration screen, select Next.
8. The Initial Setup screen shows a check mark beside
the Point Configuration step to indicate that it is
complete. Select Continue to go to the gas
configuration setup.
