Initial Setup
RMWH-SVX001C-EN 21

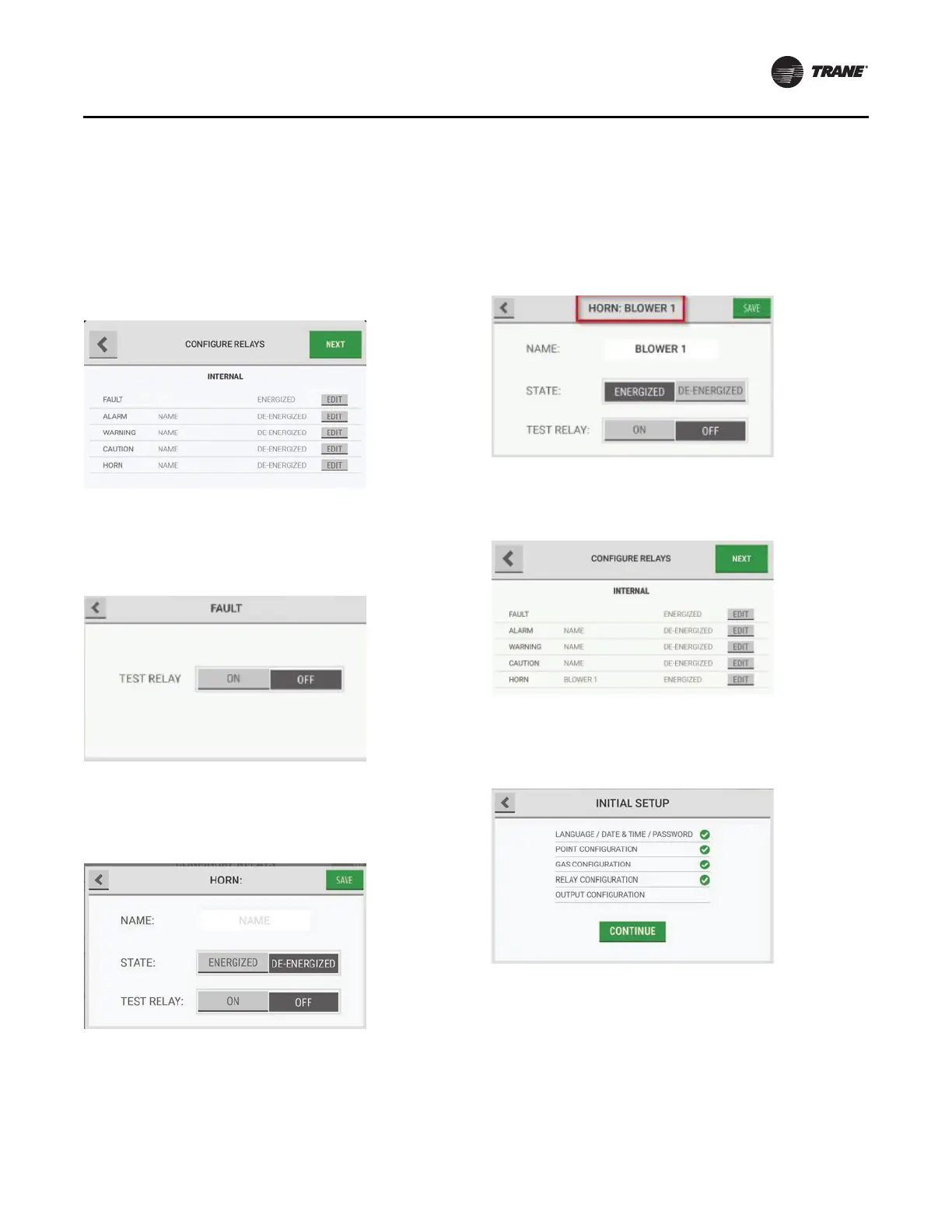

Relay Configuration
Each relay is mapped to a specific predetermined function;
that is, fault, alarm, warning, caution, or horn.
1. On the Configu
re Relays screen, select Edit for the
function to configure.
No
te: The options for the configura
tion settings for
alarms, warnings, cautions, and the horn are
identical.
The default setting for the internal fault relay is the
energized state. To test the relay, do the following:
• Select ON.
• Select OFF.
2. In the relay configuration pop-up, select the Name
field, and use the alphanumeric keyboard pop-up to
enter a value.
Relay names can have eight characters.
The title in the pop-up header changes to show the
assigned name.
3. Select Energized or De-energized for the rela
y state.
4. Do the following to test the relay:
a. Select ON.
b. Make sure the equipment connec
ted to the relay
operates as expected.
c. Select OF
F.
5. Select Save. The updated settings for the relays show
on the Configure Relays screen.
6. Repeat Step 1 through Step 5 for each relay to be
configured.
7. When all relays have been configured, select Next.
8. The Initial Setup screen shows a check mark beside
the Relay Configuration step to indicate that it is
complete. Select Continue to go to the output
configuration setup.
