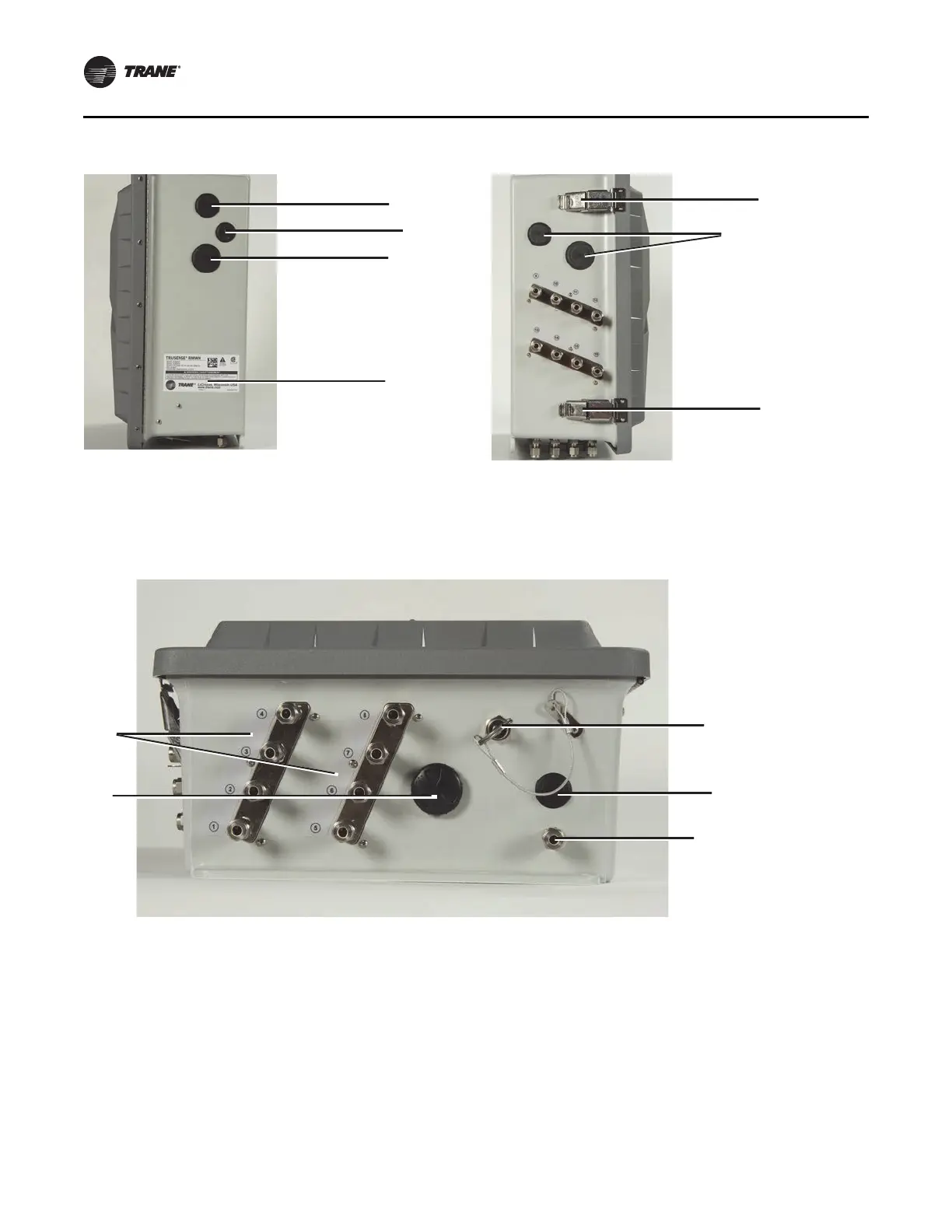

Figure 3. Right side of device
Description
8 RMWH-SVX001C-EN
1. AC power wiring cutout
2. Protective earth grounding cutout (optional)
3. Relay wiring cutout
4. Approval and unit identification label
Figure 4. Left side of device
]
1. Latches (lockable with padlock)
2. Signal wiring cutouts
Figure 5. Bottom of device
1. Sample line identification labels
2. Internal alarm sounder
3. Calibration port
4. IP rated vent
5. Exhaust port (do not block)
