RS-485 Wiring
The Enkapsis PQM supports RS-485 Modbus RTU communications. To facilitate
RS-485 communications the following connections should be made. The
EnerSure device can support a multi-drop network on RS-485 2 wire.
1) Connect the communications wire to the 3- pin terminal block.
D+ / D- / GND

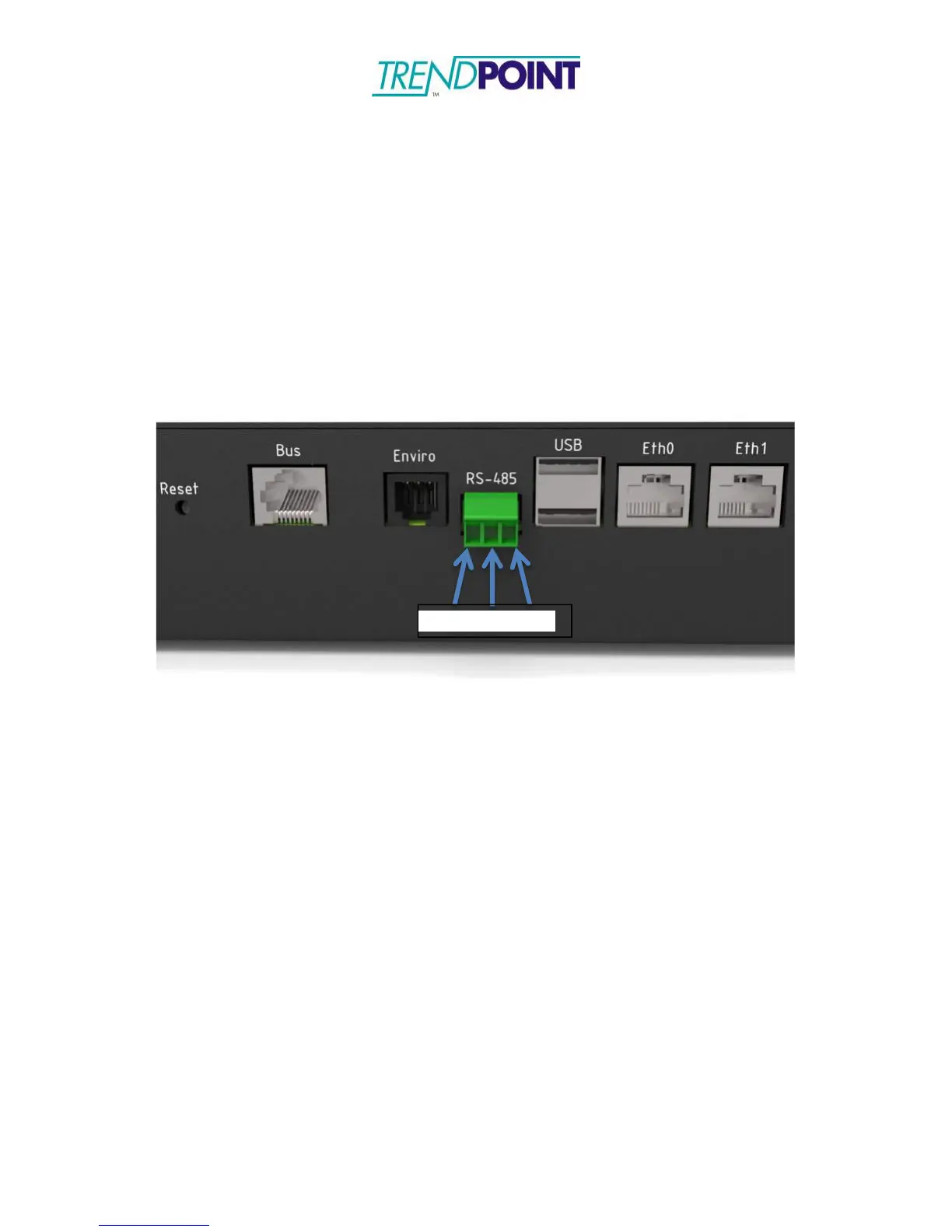

Figure 6: RS-485 Wiring
D+ D- GND
