Enkapsis & EnerSure Platform Installation Guide Rev07.2

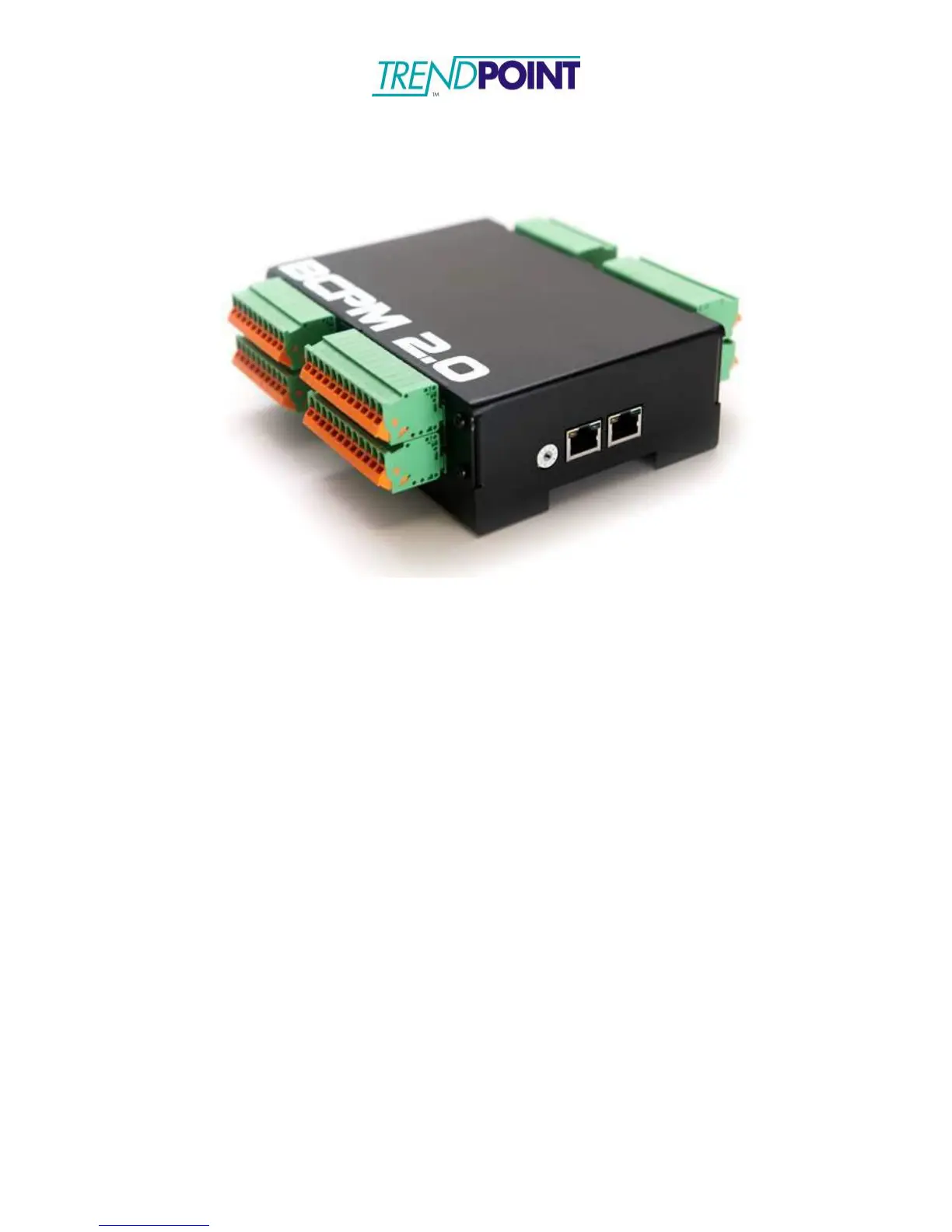

EnerSure BCPM 2.0
Overview
The EnerSure BCPM 2.0 system consists of three (3) main components:
1.) Enkapsis PQM
2.) EnerSure BCPM 2.0
a.
Installed in the enclosure for the Enkapsis and connected to Enkapsis via a
straight-through CAT5/CAT6 cable.
b.
Comes in 2 sizes: a 24 circuit and 42 circuit modules. Two 42
circuit modules can be combined into a single housing to produce a
84 circuit module.
3.) Current Transformers
a.
The CTs provided with the system are split core and are attached to the
circuit after a wire has been connected to the breaker.
b.
Standard CT’s come with 12ft leads which can be cut to properly fit the
installation.
