Enkapsis & EnerSure Platform Installation Guide Rev07.2
5
ENKAPSIS®
The Enkapsis® PQM Overview
The Enkapsis PQM system is comprised of the PQM, Current Transformers (CT),
and the Power Supply. The EnerSure provides true RMS data for Volts, Amps,
Power Factor, Watts, kWh, kVAR, kVARh, Hz, vTHD and iTHD.

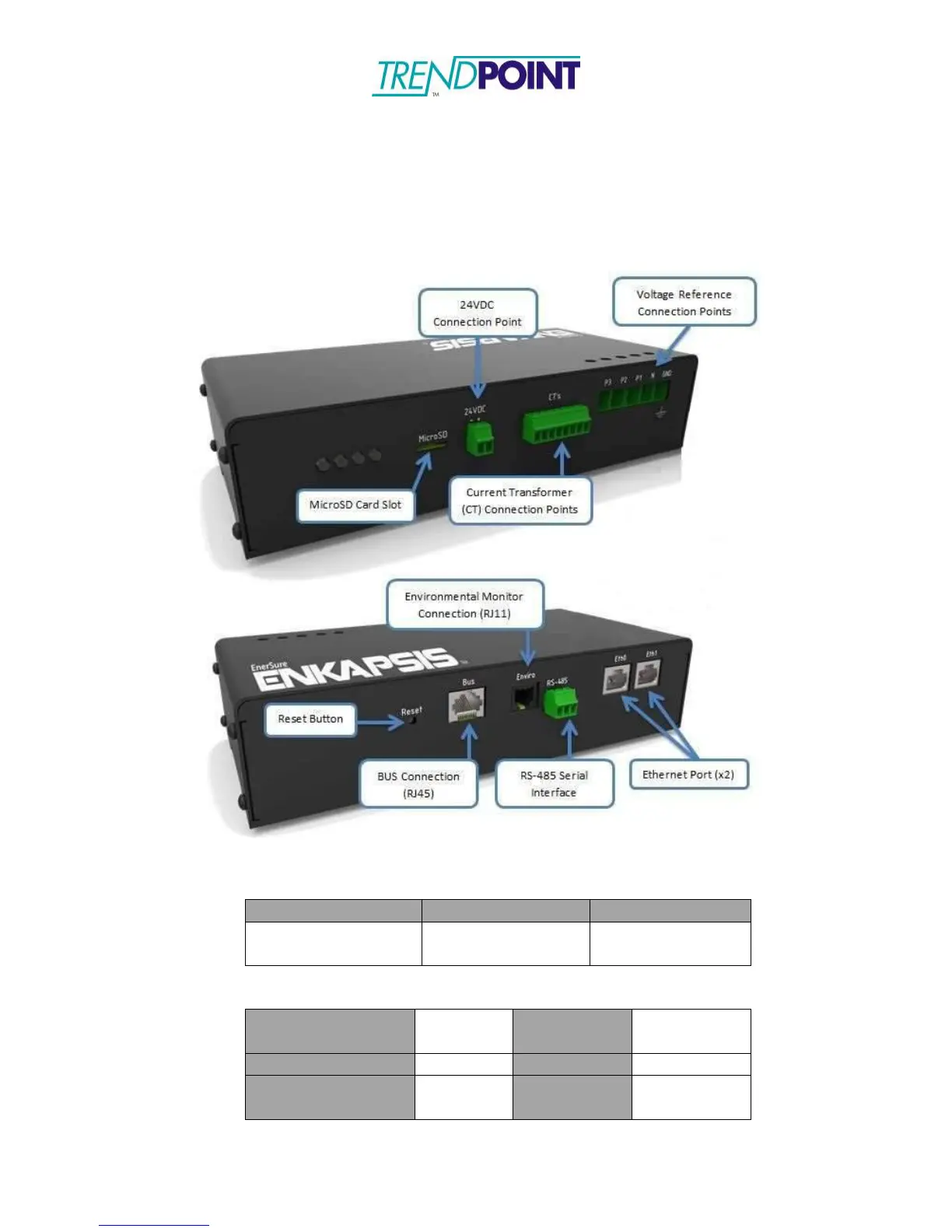

Figure 1: Enkapsis PQM
Dimensions
Length
Width
Height
8.90 in
226.00 mm
4.15 in
105.41 mm
2.10 in
53.34 mm
Electrical Properties
Current Accuracy
±0.5%
Volts In
24VDC
120-277VAC
Power Accuracy
±0.5%
Amps (Max)
250mA
Operating
Temperature
32°-100°F
0°-38°C
Frequency
50-60HZ
