Enkapsis & EnerSure Platform Installation Guide Rev07.2
Current Transformer Installation
The process of installation is as follows:
1.) Identify the arrow molded on the exterior of the CT or the label that says
“Label to Source”.

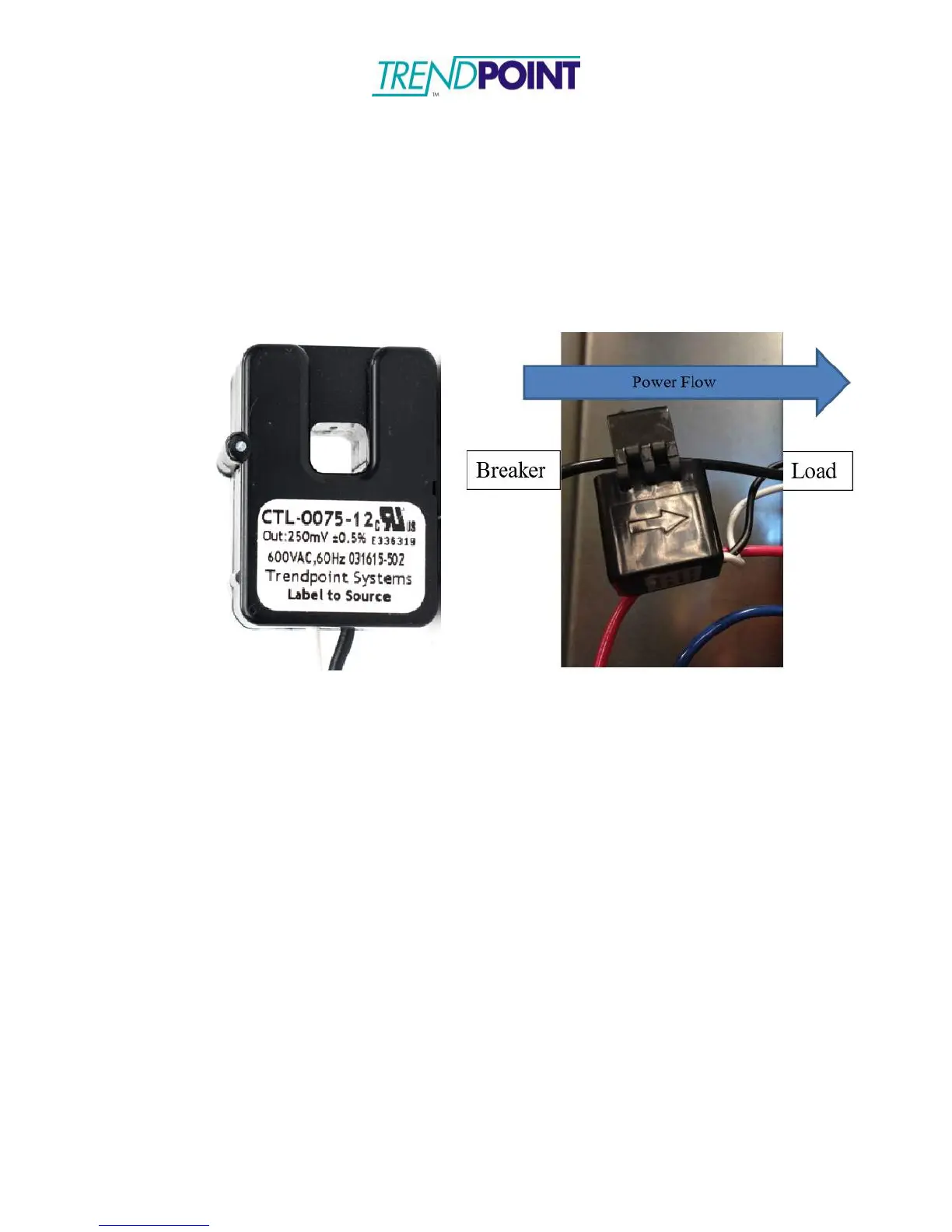

Figure 20: CT Orientation Marking
2.) Align the CT (Figure 20) such that the arrow is pointing in the direction of
power flow; pointing away from power source (circuit breaker) towards
load. If the CT does not have an arrow, it will have a label. The label
needs to face the power source.
Caution: Incorrectly aligned CTs may cause incorrect readings and
damage to equipment.
3.) If using a split core CT, close the CT around the line being monitored.
Ensure the CT is snapped completely closed.
4.) Connect the CT lead to the corresponding circuit on the iBCPM 2.0 PCB.
