Enkapsis & EnerSure Platform Installation Guide Rev07.2
Setting Board Jumpers
Each 4 or 8 circuit Bus Tap Card has a series of 4 or 8 jumpers, respectively, that need to
be placed correctly in order for the cards to gather proper data. These jumpers come pre-
set in the same configuration as the labeled connectors, but they should be checked to
ensure proper setup. Figure 28 shows a close-up of a jumper and figures 29 and 30 show
the default 4 and 8 circuit jumper settings. Jumpers should be set to P1 for Phase 1 and
Neutral, P2 for Phase 2, and P3 for Phase 3.

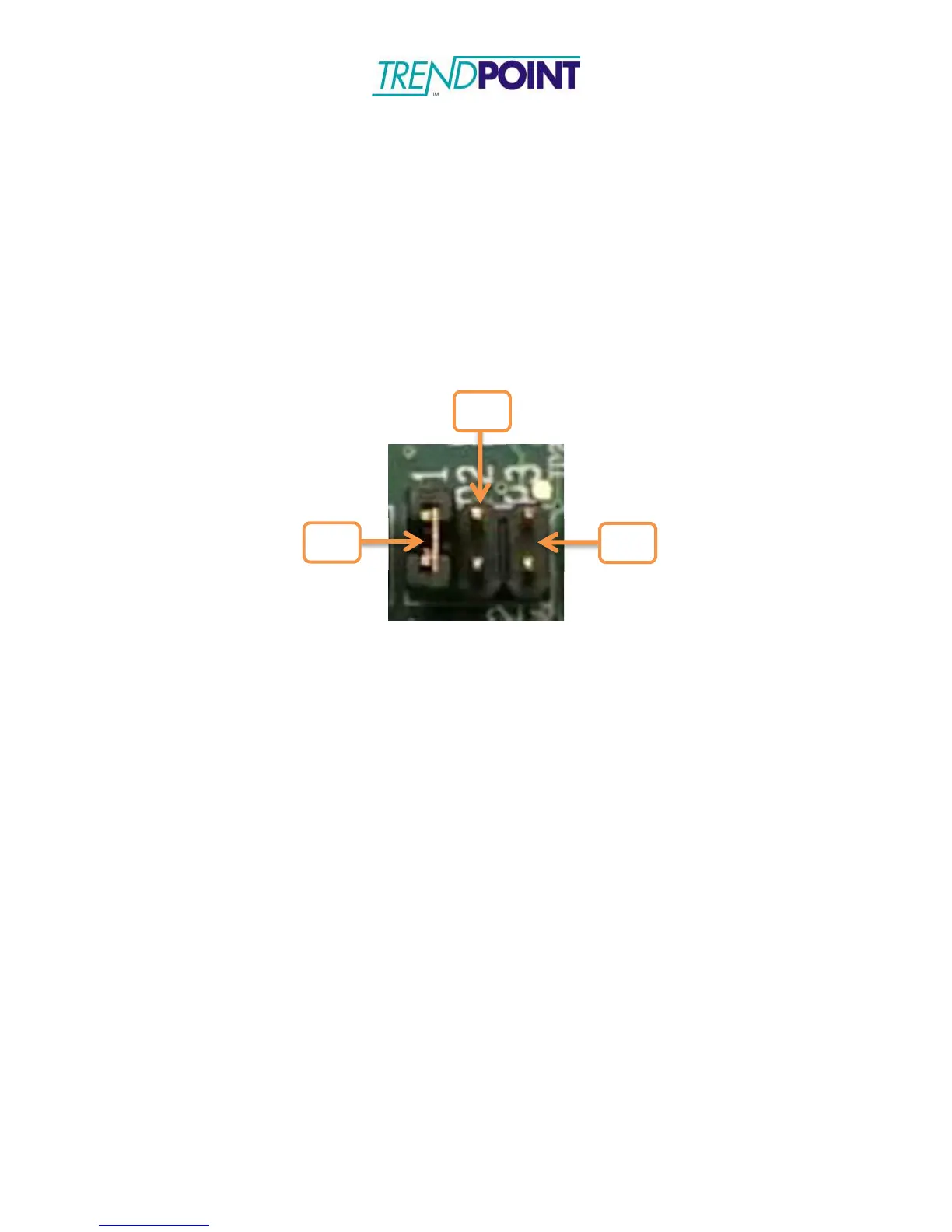

Figure 28: Circuit Jumpers (Jumper set to P1 in image)
