Power Supply
The power supply for the Enkapsis PQM is a Phoenix Contact precision power
supply. This unit requires a 120/240VAC 50 or 60hz input.
The power supply provides 24 volts DC power via one positive and one negative
output terminal. There is no ground output terminal. At 24 volts, the Ekapsis unit
uses approximately 25 mA – 250 mA of power depending on the connected
EnerSure device (BCPM 2.0, iBCPM, Bus, Display).

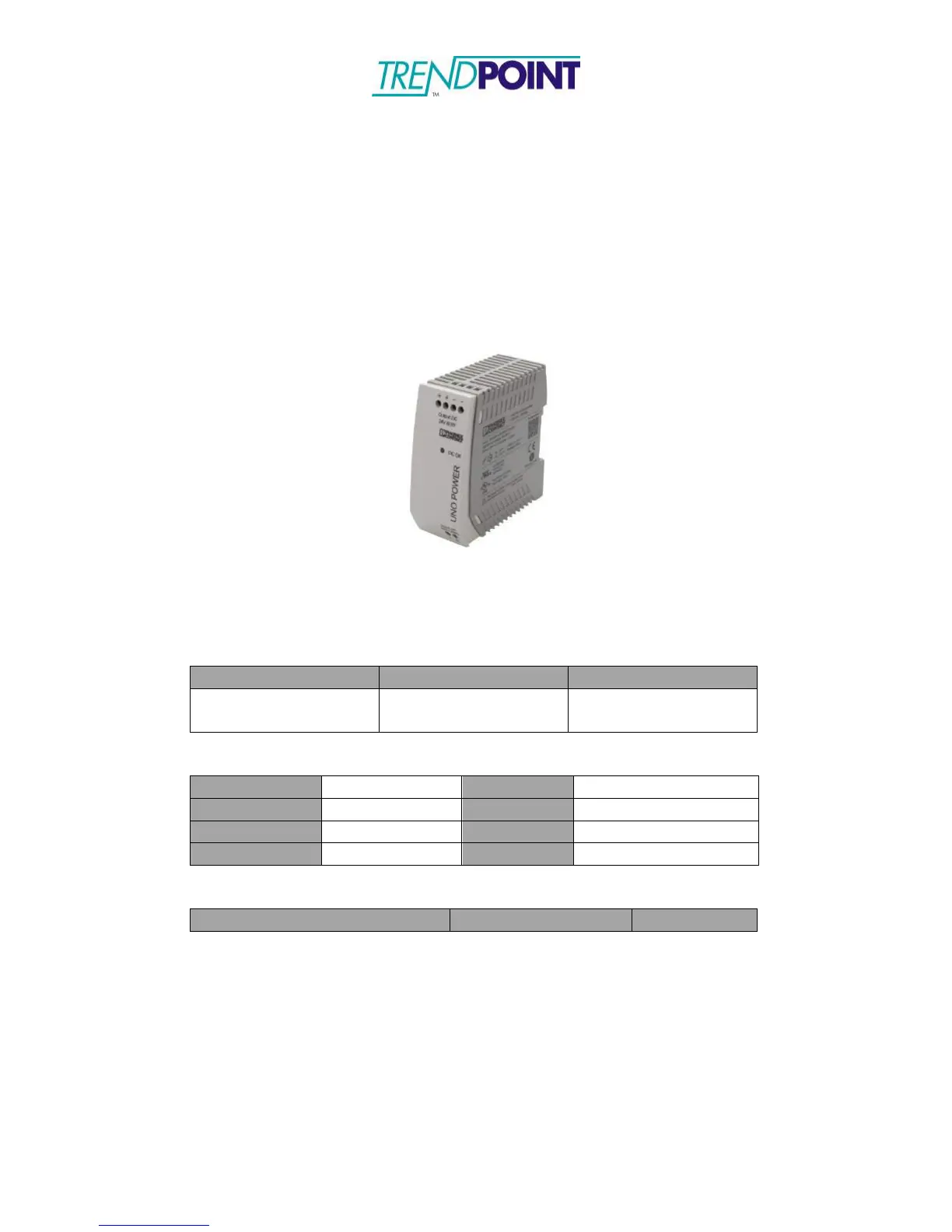

Figure 3: 24VDC 60W Power Supply
Dimensions
Length
Width
Height
3.31 in
84 mm
1.38 in
35 mm
3.54 in
90.00 mm
Electrical Properties
Nom. Volts In
100-240V
Volts Out
24VDC ±1%
Max Volts In
85-264V
Amps Out
2.5A
Max Amps In
2A
Pwr Out
60W
Frequency
45-65HZ
Certifications
EN61010-1, 61000-3-3 , 50082
CE Marked/Tested
UL 508, 1310
