Setting Phase Selector
Each 4 or 8 circuit Bus2.0 Tap Card has a series of Exp Phase. Login to the Enkapsis
Web-Interface (under the “ Circuit Cfg” tab) and select the proper phasing that matches
the placement of the CT’s installed. By setting the “Exp Phase” settings this need to be

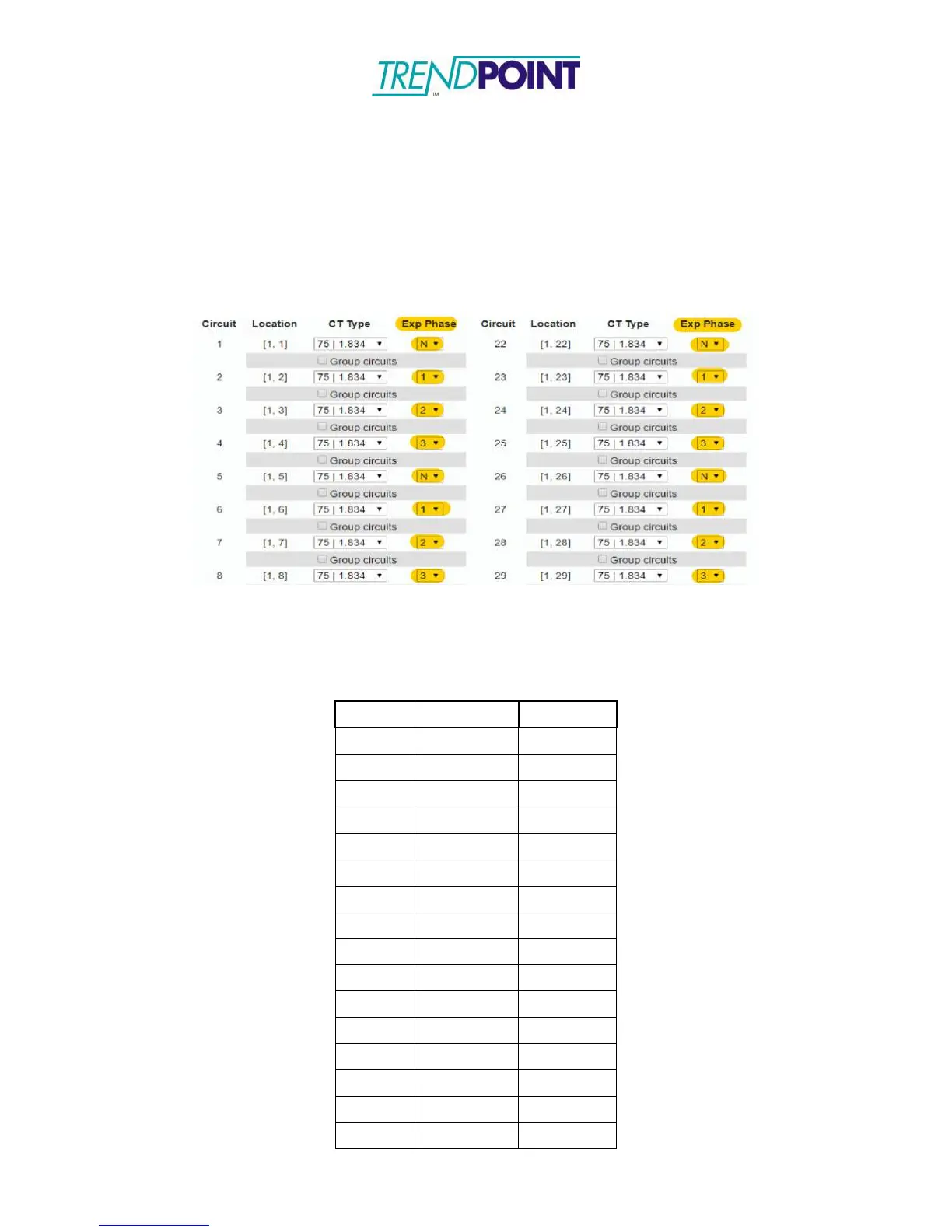

placed correctly in order for the cards to gather proper data. (Figure 39) shows a screen
shot of the Exp Phase settings in the Web Interface.
Figure 39: Circuit Cfg for Bus2.0 (Exp Phase Select in image)
Address Matrix
Address
4 Circuit
8 Circuit
1
1-4
1-8
2
5-8
Not Used
3
9-12
9-16
4
13-16
Not Used
5
17-20
17-24
6
21-24
Not Used
7
25-28
25-32
8
29-32
Not Used
9
33-36
33-40
10
37-40
Not Used
11
41-44
41-48
12
45-48
Not Used
13
49-52
49-56
14
53-56
Not Used
15
57-60
57-64
16
61-64
Not Used
