Enkapsis & EnerSure Platform Installation Guide Rev07.2
EnerSure iBCPM2.0

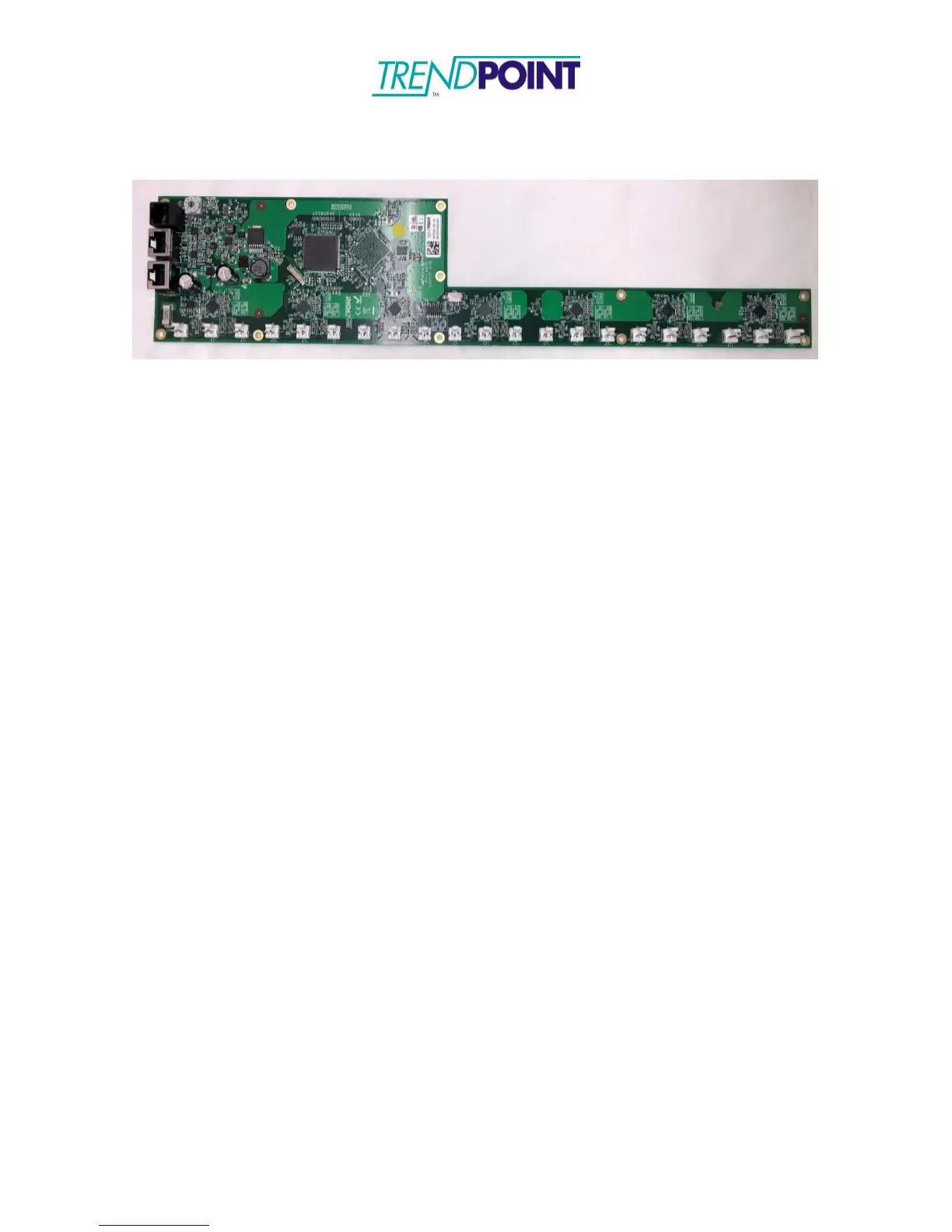

Figure 14: IBCPM 2.0 PCB
iBCPM2.0 Overview
The iBCPM2.0 system consists of three (3) main components:
1.
Enkapsis PQM
2.
iBCPM2.0 PCB
a. Installed in the panel that is being monitored by the system. The IBCPM
2.0 PCBs (Figure 14) are mounted next to the breakers and are design
for panels with ¾” breaker spacing.
b. Each iBCPM 2.0 PCB supports 21 current transformers.
3. TrendPoint Current Tranformers (CTs)
a. The current transformers plug into the iBCPM 2.0 PCB.
