Enkapsis & EnerSure Platform Installation Guide Rev07.2
Current Transformers
Standard CTs for the EnerSure Bus system are 75A split core CTs. The lead lengths on
the CTs can be cut to the desired length and the wires connected to the screw terminals.

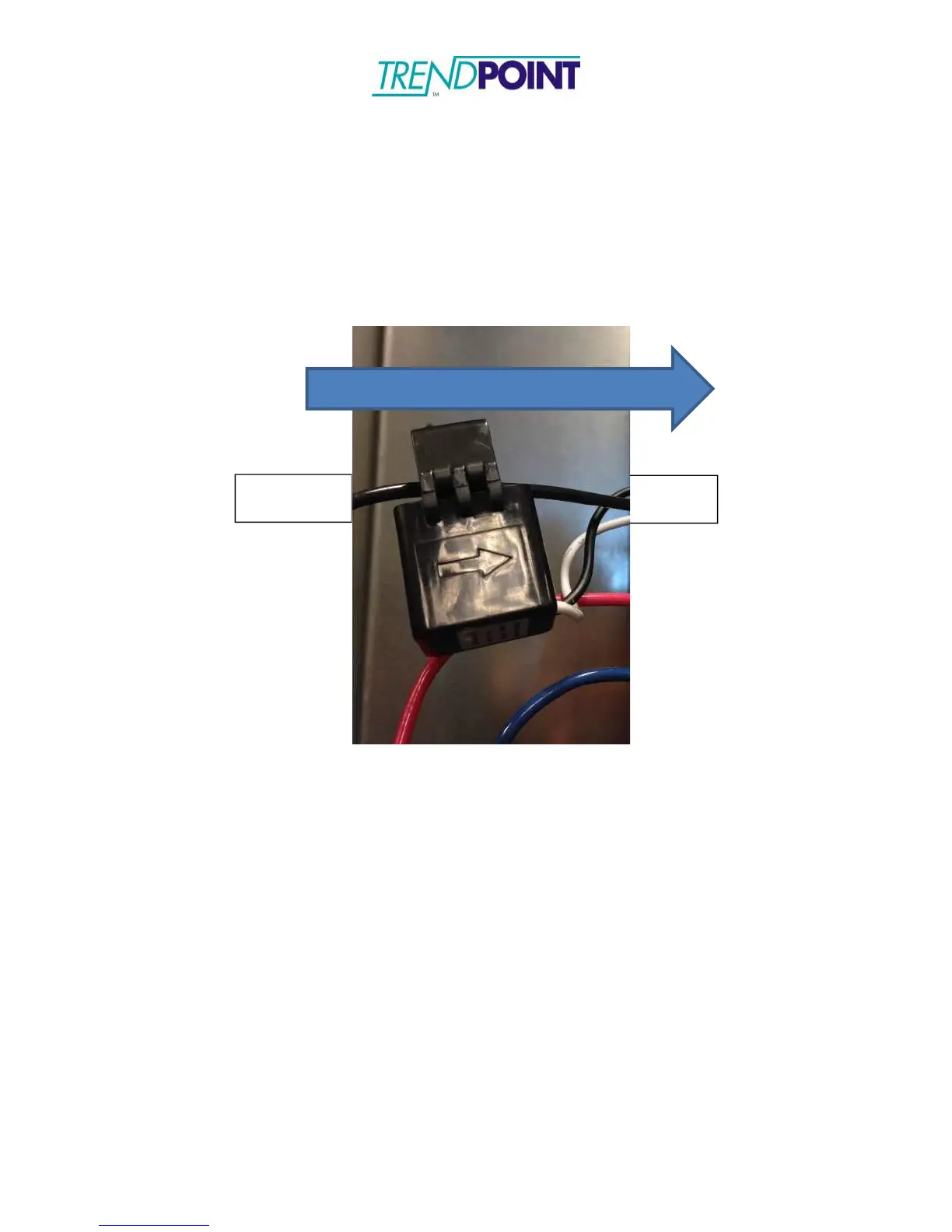

1.) Snap the CT around the line being monitored. Ensure the CT is snapped
completely closed.
a.
Each CT is marked with an arrow. The arrow should point along the
direction of the current flow. (Away from the breaker)
2.) Connect the CT to the corresponding to the circuit on the Bus Tap card.
