Enkapsis & EnerSure Platform Installation Guide Rev07.2
Setting Strip Jumpers
Each iBCPM strip has a series of 21 jumpers that need to be placed correctly in order for
the strips to gather proper data. These jumpers come pre-set for either a top or bottom

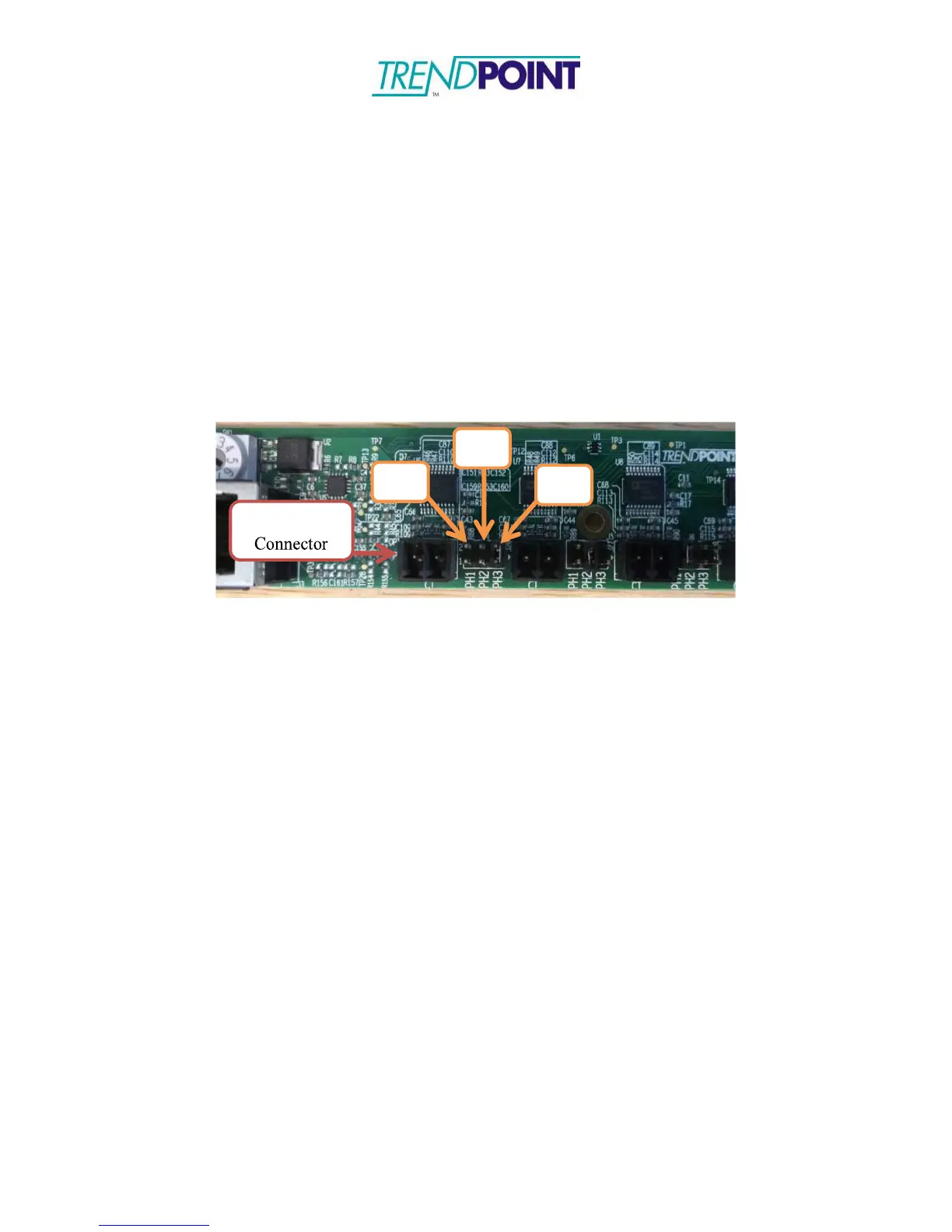

fed panel as ordered, but they should be checked to ensure proper setup. Figure 13 shows
a close-up of a jumper and its possible positions. Jumpers should be set to P1 for Phase 1
and Neutral, P2 for Phase 2, and P3 for Phase 3.
Figure 13: Circuit Jumpers (Jumper set to P1 in image)
