Enkapsis & EnerSure Platform Installation Guide Rev07.2
EnerSure iBCPM
Overview
The EnerSure iBCPM system consists of three (3) main components:
1.) Enkapsis PQM
2.) EnerSure iBCPM CT Strips
a.

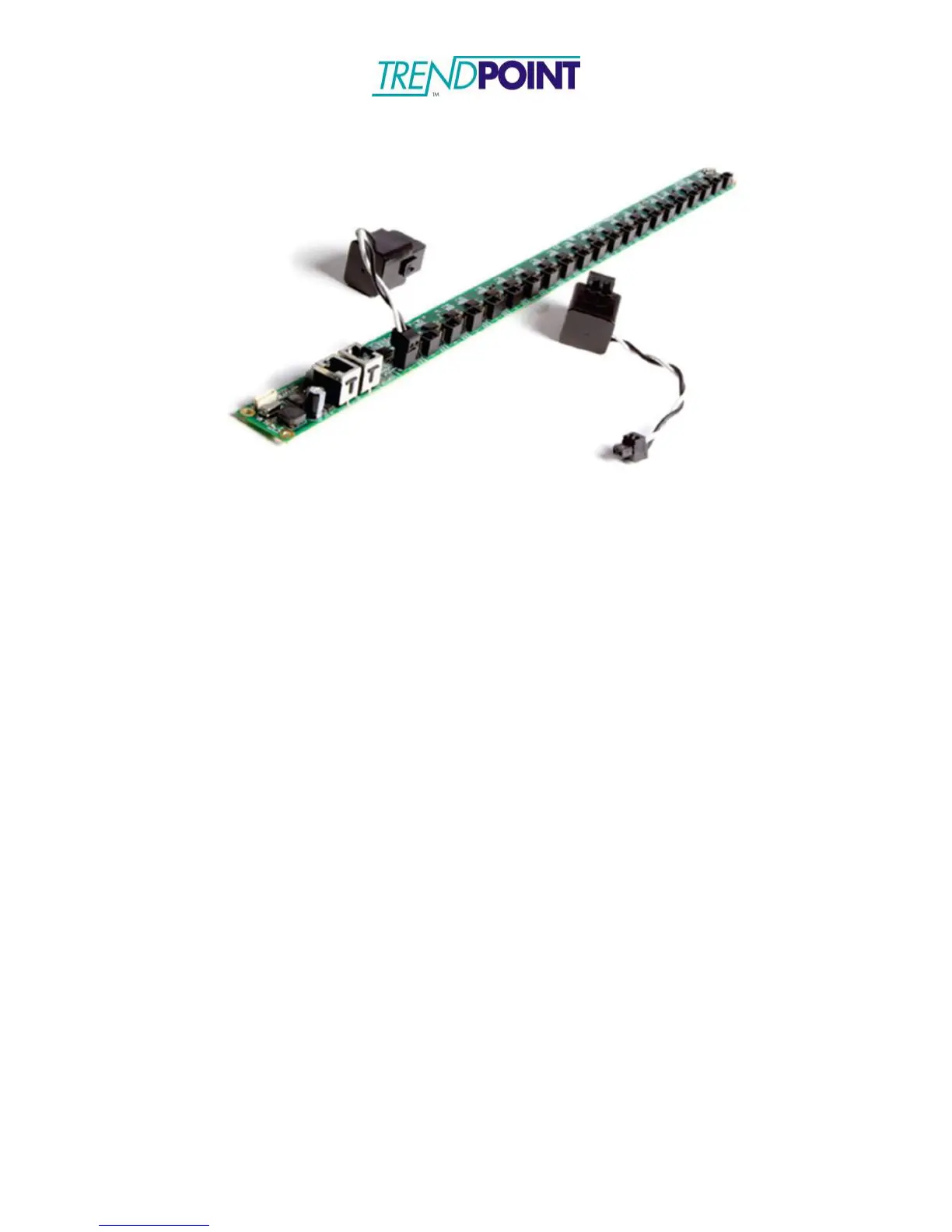

Installed in the panel that is being monitored by the system. The CT strips
are mounted next to the breakers and are design for panels with ¾”
breaker spacing.
b.
The current transformers plug into the CT strip.
c.
Each CT strip supports 21 current transformers.
3.) Current Transformers
a.
The CTs provided with the system are split core and are attached to the
circuit after the wire has been connected to the breaker.
b.
The standard CT size is 75A and is designed to be fit into panels with ¾”
breaker spacing.
