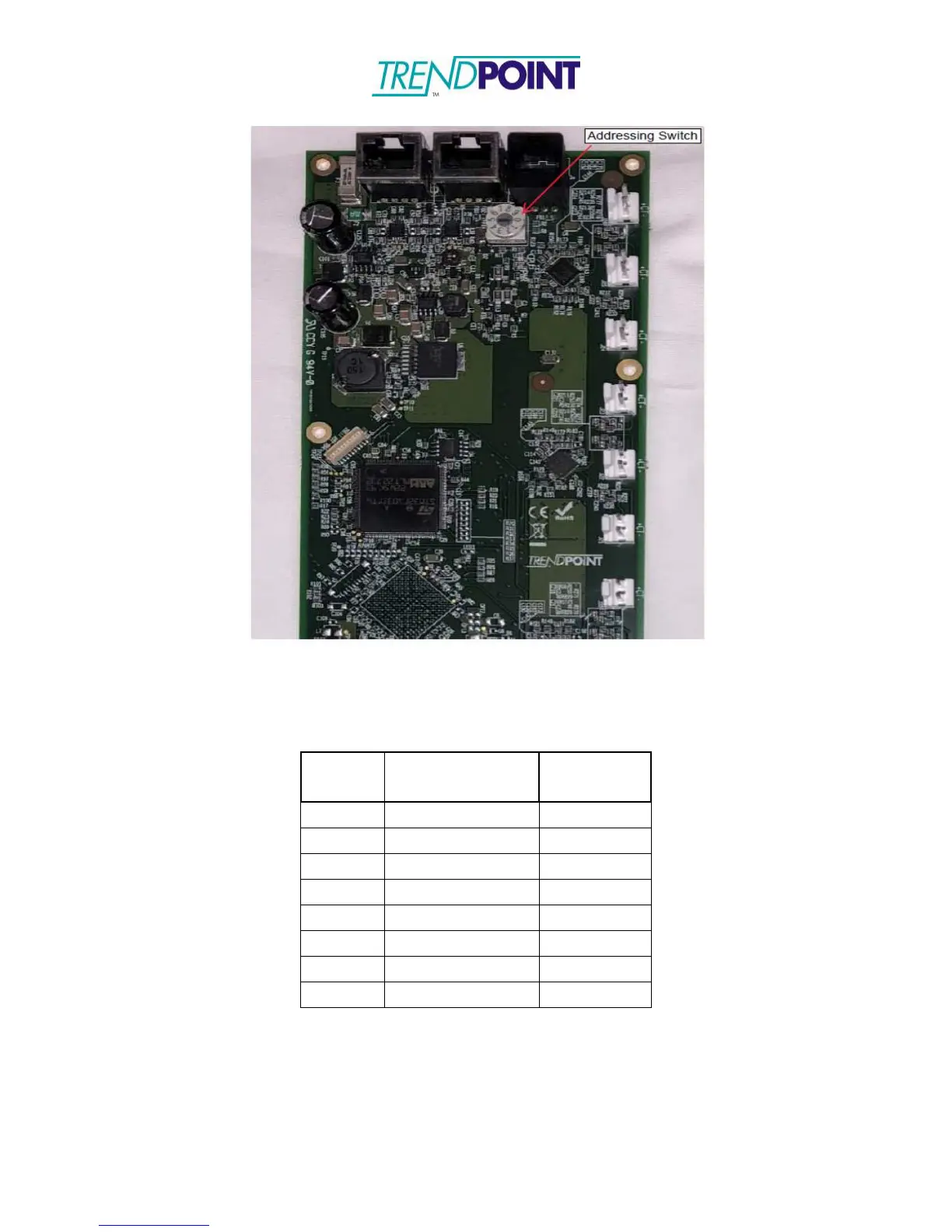

Figure 17: Addressing Switch
Address Matrix
Address
ANSI Circuit
IEC
Circuit
1
1-41 (Odd)
1-21
2
2-42 (Even)
22-42
3
43-83 (Odd)
43-63
4
44-84 (Even)
64-84
5
85-125 (Odd)
85-105
6
86-126 (Even)
106-126
7
127-167 (Odd)
127-147
8
128-168 (Even)
148-168
