5700/5800 GPS Receiver User Guide 113
Event Marker Input and 1PPS Output 11
5700 Operation

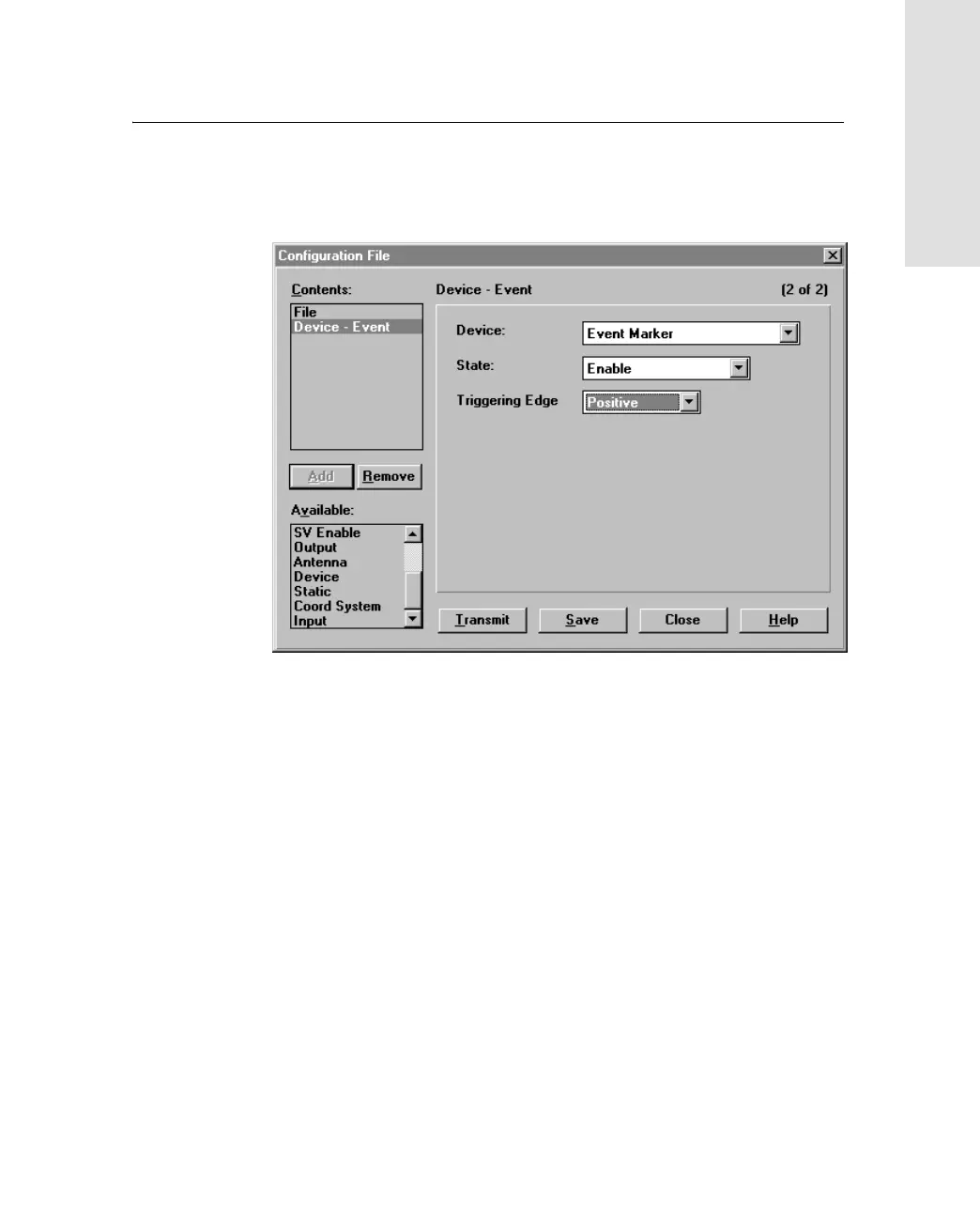

6. Complete the dialog as shown below. In the Triggering Edge
field, select Positive or Negative, depending on which type of
pulse the external device uses:
7. To save the application file to your computer, click
Save.
8. Click
Transmit to send the application file to the connected
receiver. The message
Communicating with receiver
appears,
followed by a message giving details of the transfer.
9. Click
Close to exit the Configuration File dialog.
10. If you have not saved the application file, a message appears,
prompting you to save your changes.
11. Select File / Exit to close Configuration Toolbox.
