5800 Operation
4. If using the TSC1, connect the data-i/o cable from Port 1 of the
receiver to a port on the TSC1. If using the Trimble ACU, or
TSCe with Bluecap module, no cabling is required, as shown in
Figure 13.3.

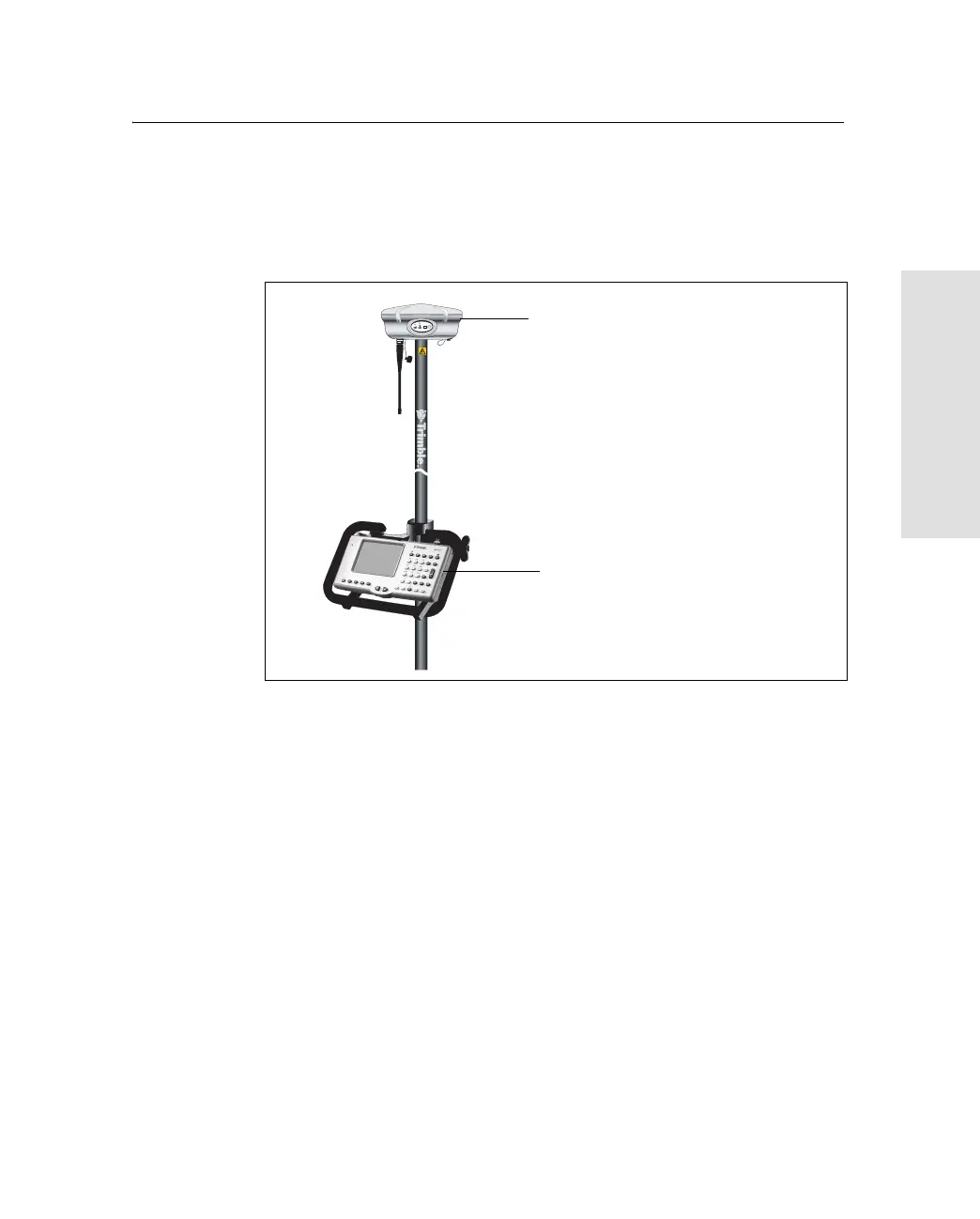

Figure 13.3 5800 receiver pole-mounted setup
13.1
Other System Components
This section describes optional components that you can use with the
5800 receiver.
131.1
Radios
Radios are the most common data link for Real-Time Kinematic
(RTK) surveying. The 5800 receiver is available with an optional
internal radio in either the 450 or 900 MHz UHF band. You can also
connect an external radio to either port, whether the internal radio is
installed or not.
F
F
5800 GPS Receiver
ACU controller
