Trimble 5700 - Lower housing

5700/5800 GPS Receiver User Guide 127
Setting up the Receiver 13
5800 Operation
132.2 Lower housing

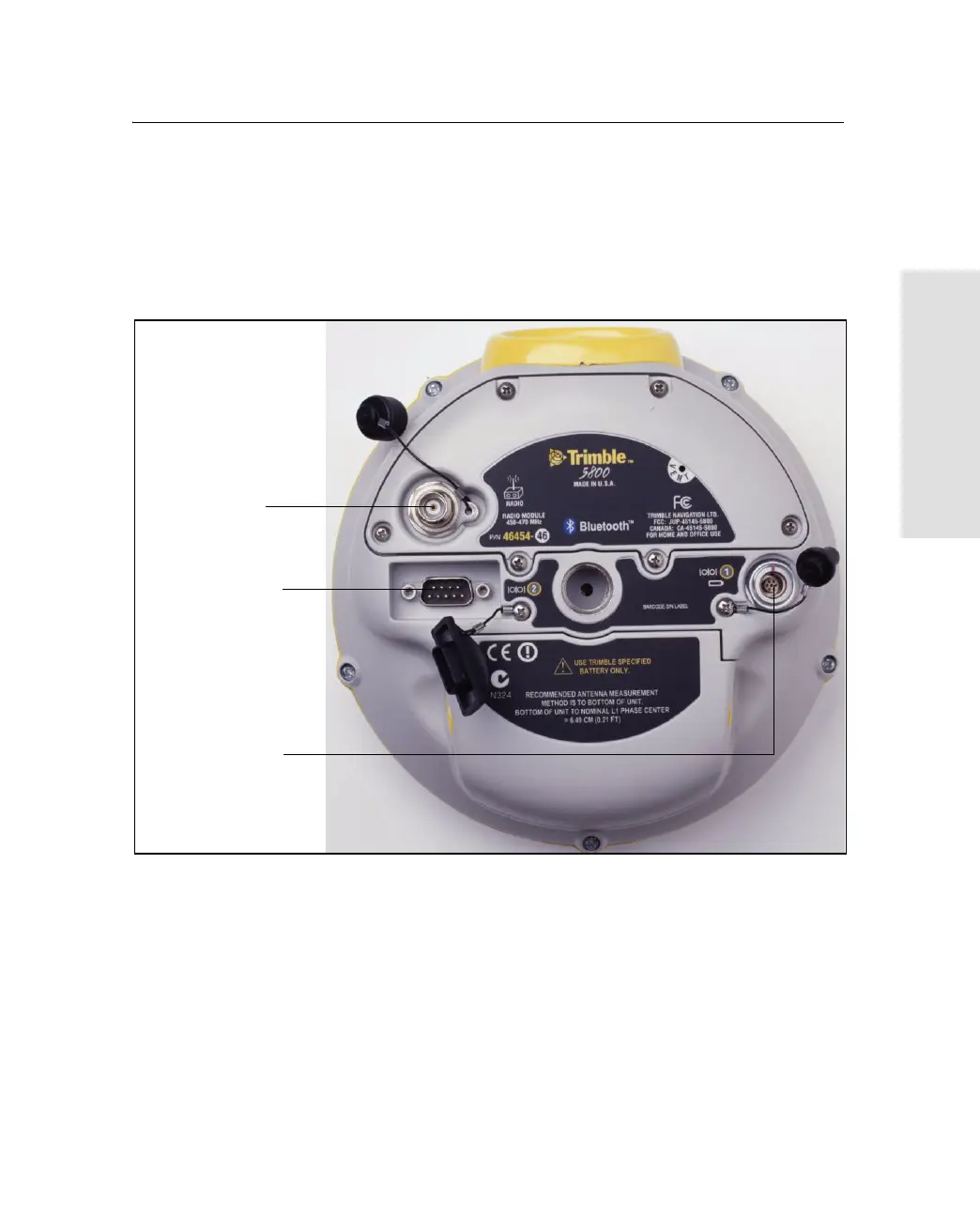

Figure 13.2 shows the lower housing of the 5800 receiver. The lower
housing contains the two serial ports, one TNC radio antenna
connector, the removable battery compartment and the 5/8-11
threaded insert.
Figure 13.2 5800 lower housing
Port 1
Port 2
Radio
connection
