Maintenance and Adjustment
Final Drive Unit
Other than checking the final drive oil level,
the unit contains no user serviceable parts. If
a fault occurs with the final drive unit, your
Triumph dealer must replace the complete
assembly.
Check the final drive unit for oil leaks in
accordance with the scheduled maintenance
chart.
Final Drive Oil Level Adjustment

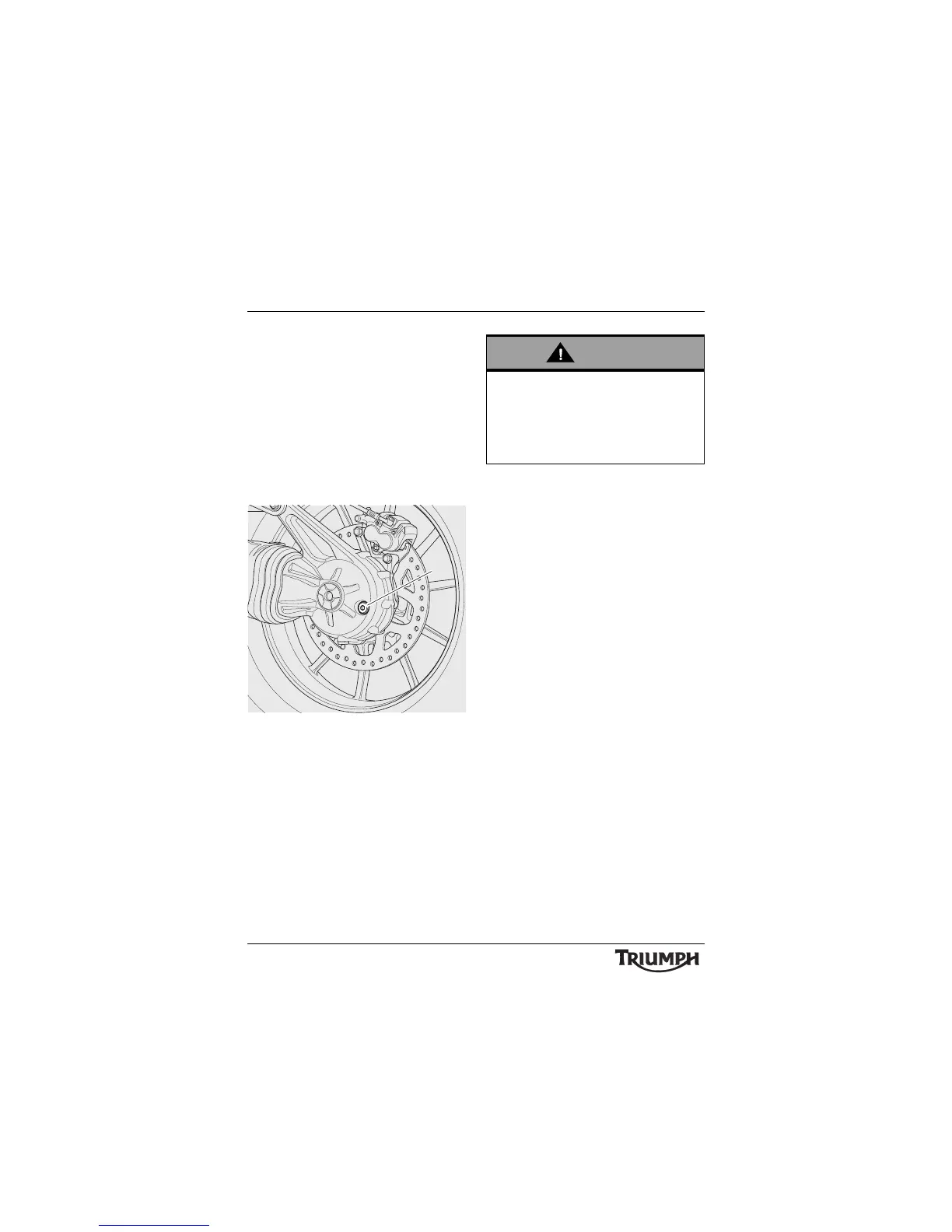

1. Filler level plug
To check the oil level in the final drive unit,
remove the filler level plug. Fill with 75W/90
fully synthetic hypoid oil that meets
specification API Service Level GL5, such as
Castrol SAF-XO fully synthetic hypoid oil,
until the level of oil inside the unit is level with
the bottom of the filler. Re-install the plug
and tighten to 14 l b f t ( 2 5 N m ) .
1
chew
Under no circumstances should the final
drive unit be disassembled. Failure to
observe the above warning could lead to a
malfunction of the final drive unit causing
lock-up of the rear wheel leading to loss of
motorcycle control and an accident.
