Triumph Tiger Explorer - Fuse Identification

120
Maintenance and Adjustment
Fuse Identification
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown fuse,
use the tables to establish which fuse has
blown.
The fuse identification numbers listed in the
tables correspond with those printed on the
fuse box covers, as shown below. Spare fuses
are located at right angles to the main fuses
and should be replaced if used.

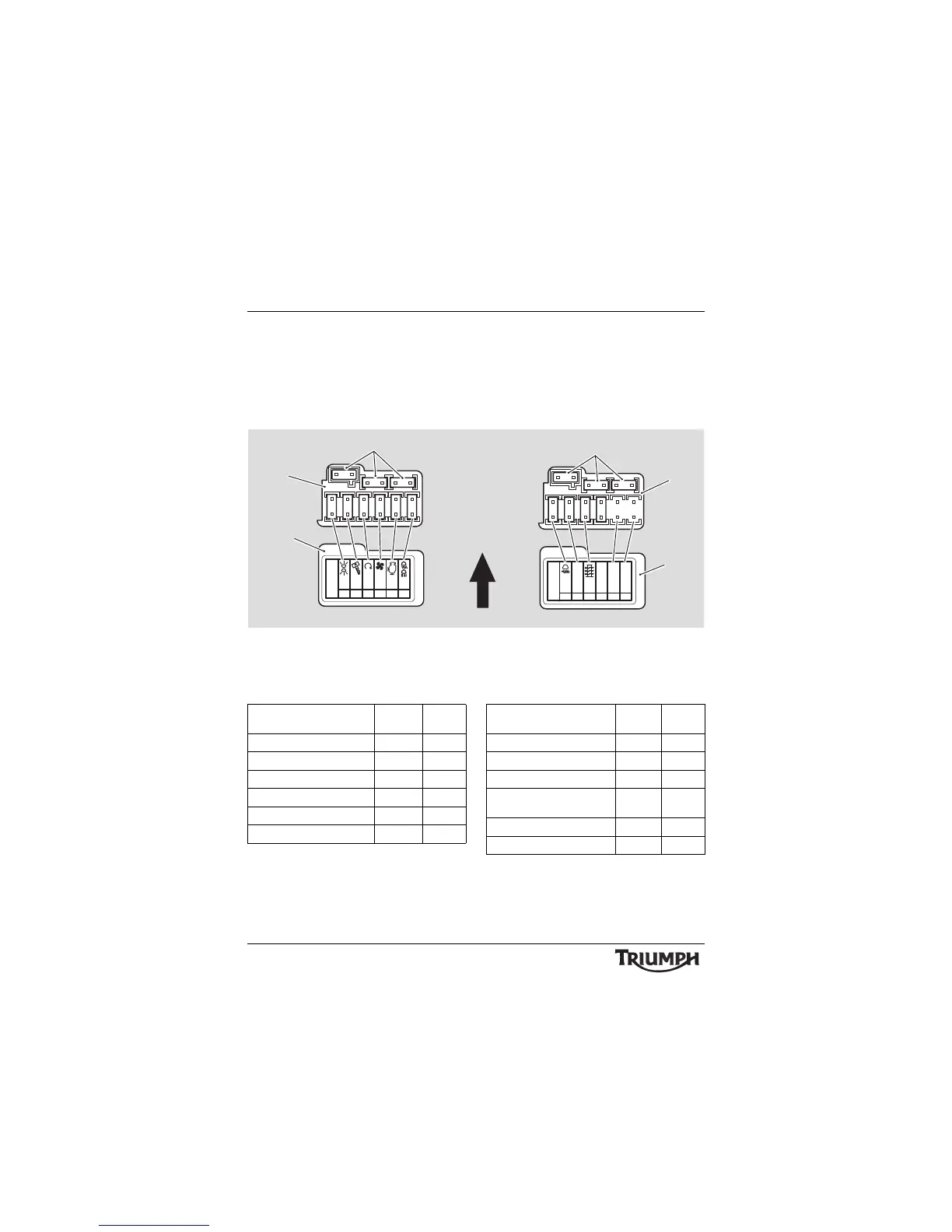

1. Left hand fuse box cover
2. Left hand fuse box
3. Spare fuses
4. Right hand fuse box
5. Right hand fuse box cover
Left hand fuse box Right hand fuse box
15 10 10 15
15
10
15
15
EMPTY
6
OPEN
15A
5
10A
4
10A
3
20A
2 1
15A
EMPTY
10
15
10
10
15
10
10
1
OPEN
2
10A
3
15A
4 5 6
15
15A
12V
10A
12V
10A
2
1
4
5
3
3
Front of Motorcycle
Circuit Protected Position Rating
(Amps)
Headlight 1 20
Engine management 2 15
Cooling fan 3 15
Fuel pump 4 10
Ignition, instruments 5 10
Tail light, brake light, horn 6 10
Circuit Protected Position Rating
(Amps)
Empty 1 -
Empty 2 -
Rider auxiliary socket 3 10
Heated grips, heated seats
and pillion auxiliary socket
415
Top box auxiliary socket 5 10
Fog lights 6 15
