Triumph Tiger Explorer User Manual

61
General Information
Rear Seat

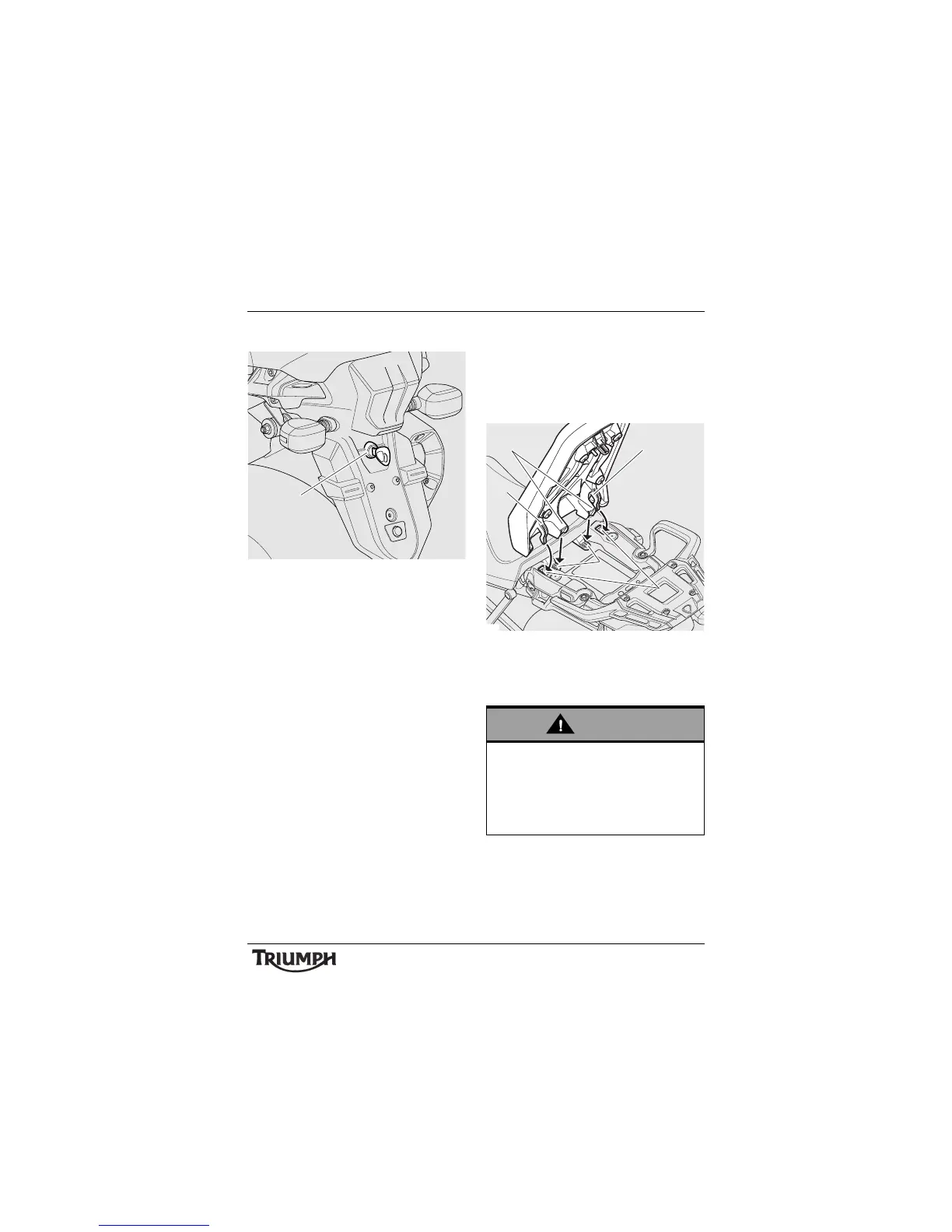

1. S e a t l o c k
The seat lock is located on the rear fender,
below the brake/tail light unit. To remove the
seat, insert the ignition key into the seat lock
and turn it counter-clockwise while pressing
down on the rear of the seat. This will release
the seat from its lock and allow it to be slid
rearwards for complete removal from the
motorcycle.
To re-install the seat, engage the seat's two
outer brackets under the loops on the
subframe and the two inner brackets to
brackets on the rider's seat. Gently push the
seat forwards and press down at the rear to
engage in the seat lock.
1. Rear seat outer brackets
2. Subframe loops
3. Rear seat inner brackets
4. Rider seat brackets
chdg
1
Warning
To prevent detachment of the seat during
riding, after installing always grasp the seat
and pull firmly upwards. If the seat is not
correctly secured, it will detach from the
lock. A loose or detached seat could cause
loss of motorcycle control and an accident.
chdj
1
2
3
1
4

Triumph Tiger Explorer Specifications

General

Displacement	1215 cc
Transmission	6-speed
Final Drive	Shaft
Tires Front	110/80 R19
Tires Rear	150/70 R17
Engine Type	Liquid-cooled, 12-valve, DOHC, inline 3-cylinder
Fuel System	fuel injection
Front Suspension	adjustable rebound and compression damping
Rear Suspension	adjustable rebound damping
Front Brakes	Dual 305mm floating discs, 4-piston calipers, ABS
Rear Brakes	Single 282mm disc, ABS
Frame	Tubular steel trellis frame
Fuel Capacity	20 L (5.2 US gal)
