General Information
Rider's Seat
1. R i d e r ’ s s e a t
To remove the rider’s seat, remove the rear
seat (see page 61 ).
Grasp the rider’s seat on either side, and slide
it rearwards and upwards for complete
removal from the motorcycle.
To re-install the seat, engage the seat's front
rail into the bracket at the rear of the fuel
tank and lower the rear rail in to the rear
brackets. Push down firmly on the rear of the
seat. Re-install the rear seat (see page 61 ).

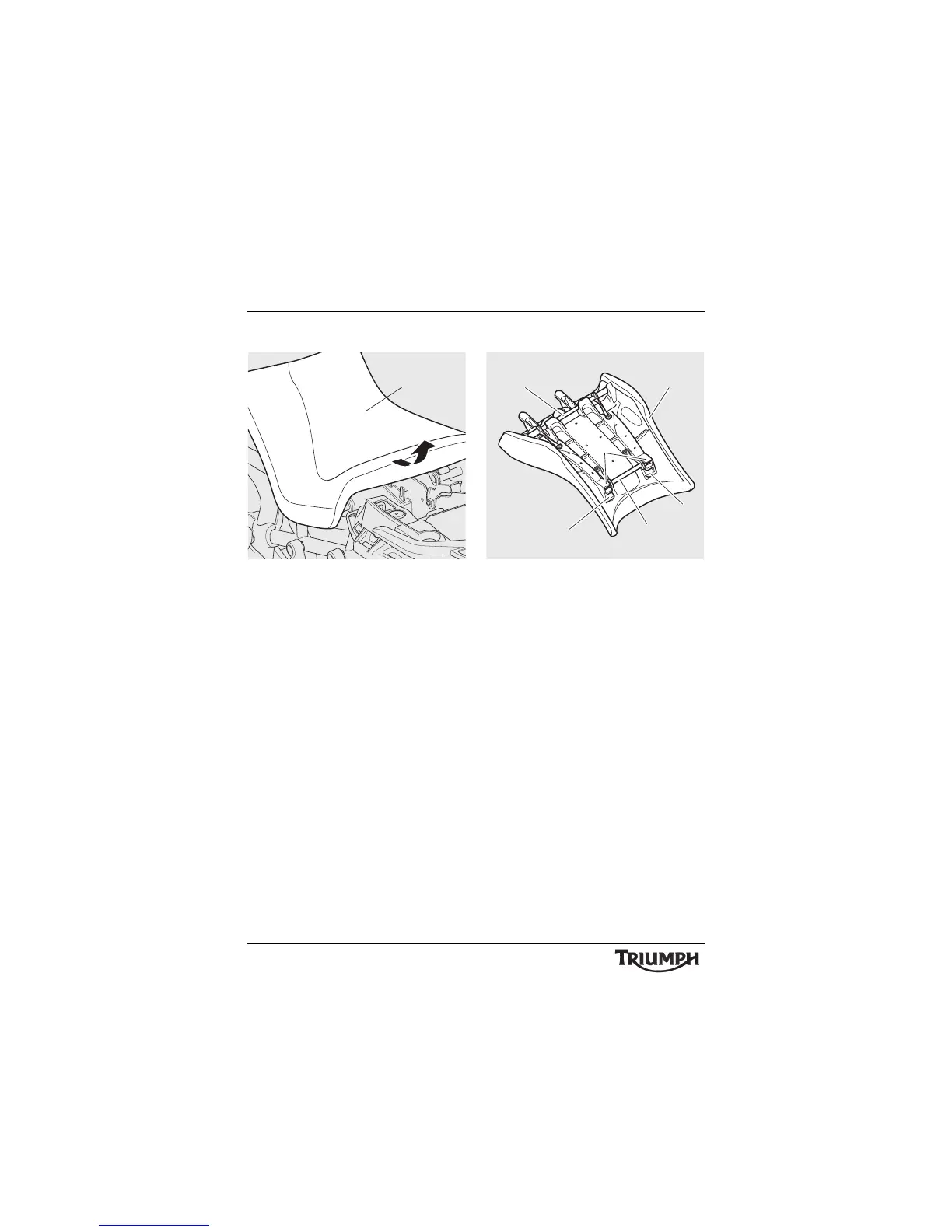

Rider’s Seat Height Adjustment
1. R i d e r ’ s s e a t
2. Front height adjuster
3. Rear height adjuster
4. Low seat height position (front
shown)
5. High seat height position (front
shown)
The rider’s seat is adjustable for height by
approximately 0.8 in (20 mm).
To adjust the rider’s seat:
Remove the rider’s seat (see page 62).
Reposition both seat height adjusters to the
higher or lower position as required. Ensure
both adjuster rails are fully engaged in their
brackets on the seat.
Re-install the rider’s seat (see page 62).
chdh
1
4
4
2
5
3
1
chdi

Triumph Tiger Explorer Specifications

General

Displacement	1215 cc
Transmission	6-speed
Final Drive	Shaft
Tires Front	110/80 R19
Tires Rear	150/70 R17
Engine Type	Liquid-cooled, 12-valve, DOHC, inline 3-cylinder
Fuel System	fuel injection
Front Suspension	adjustable rebound and compression damping
Rear Suspension	adjustable rebound damping
Front Brakes	Dual 305mm floating discs, 4-piston calipers, ABS
Rear Brakes	Single 282mm disc, ABS
Frame	Tubular steel trellis frame
Fuel Capacity	20 L (5.2 US gal)
