Triumph Tiger Explorer - Front Fog Lights - if Equipped; Front Fog Light Bulb Replacement

124
Maintenance and Adjustment

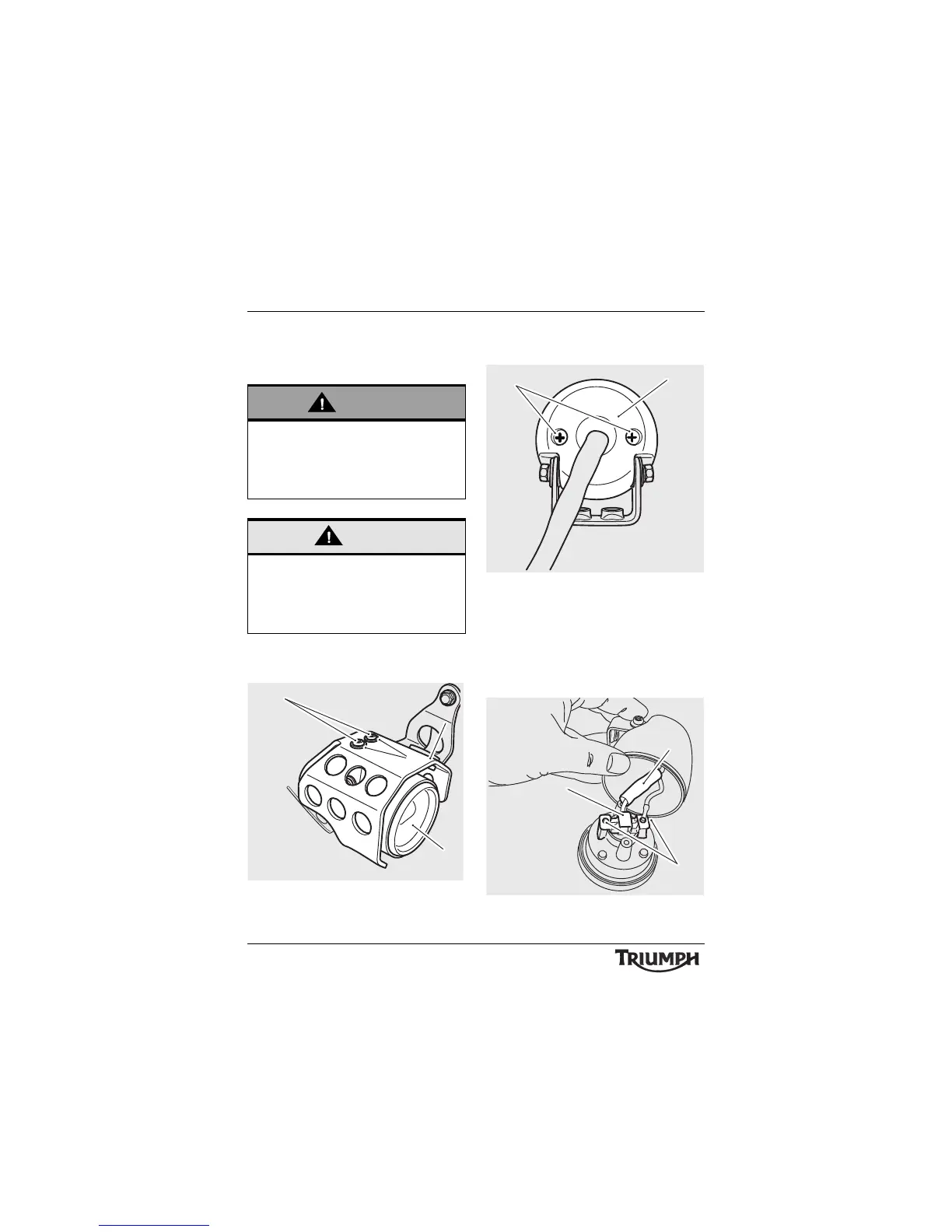

Front Fog Lights - If Equipped
Front Fog Light Bulb Replacement
1. Release the fasteners and washers then
detach the fog lamp from its shroud.
1. Fasteners
2. Washers
3. Fog lamp
4. Shroud
2. Remove the two fasteners from the rear
of the lamp unit.
1. F o g l a m p
2. Fasteners
3. Pull the lens out of the case.
4. Disconnect the bullet connector inside
the lamp unit.
5. Remove the two fasteners securing the
bulb retainer and remove the bulb.
1. Connector
2. Bulb retainer
3. Fasteners
Warning
The bulbs become hot during use. Always
allow sufficient time for the bulb to cool
before handling. Avoid touching the glass
part of the bulb. If the glass is touched or
gets dirty, clean with alcohol before reuse.
Caution
Do not allow the fog lamp to hang
unsupported from the harness during bulb
replacement. Allowing the fog lamp to
hang from the harness will cause damage
to the fog lamp.
3
2
1
4
1
2
cgrb_1
2
1
3
cgsq_1
