Triumph Tiger Explorer User Manual

119
Maintenance and Adjustment

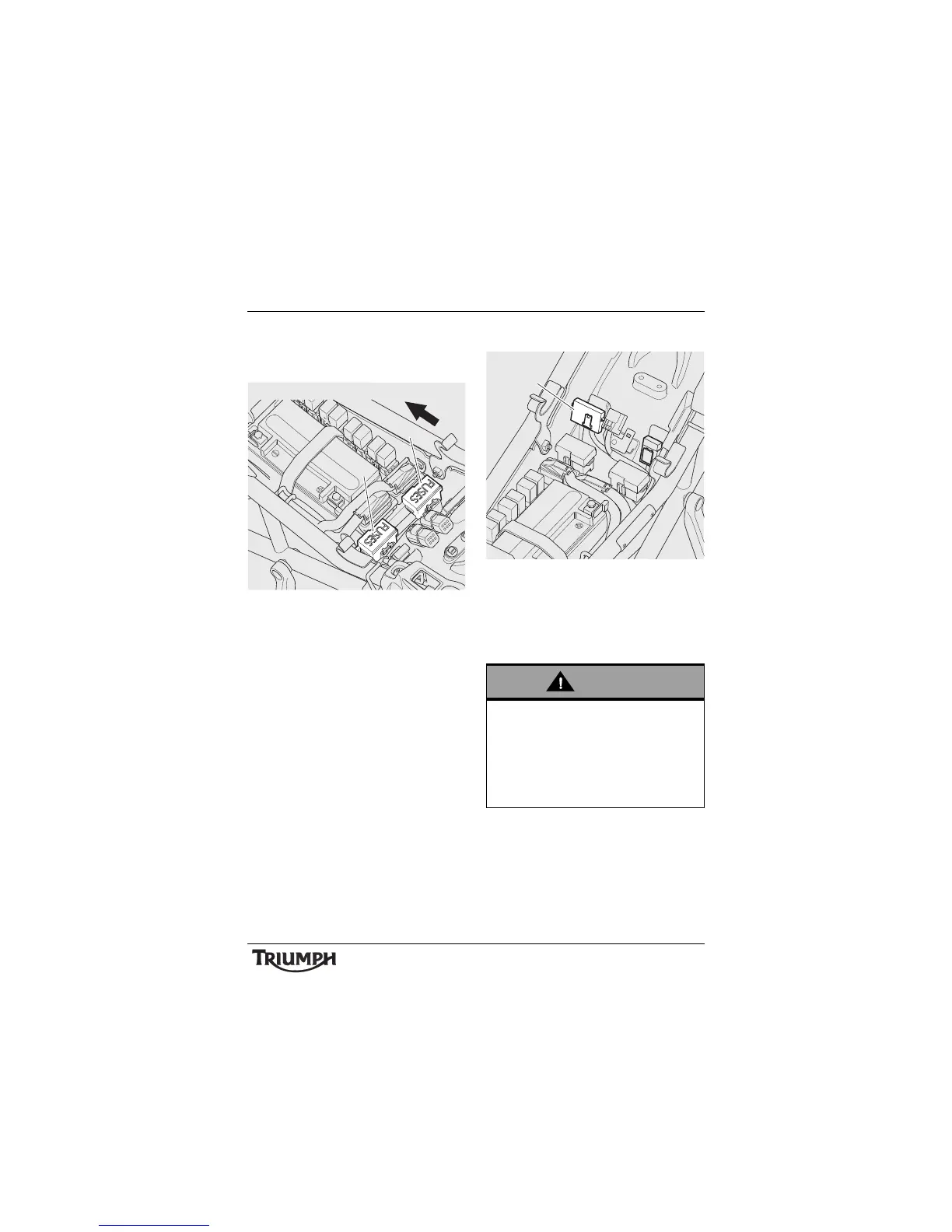

Fuse Boxes
Main Fuse Boxes
1. Left hand fuse box
2. Right hand fuse box
The fuse boxes are located beneath the
rider’s seat.
To allow access to the fuse boxes, the rider’s
seat must be removed.
ABS Fuse Box
1. A B S f u s e b o x
The ABS fuse box is located beneath the
rider's seat and behind the right hand main
fuse box.
To allow access to the ABS fuse box the
rider’s eat must be removed.
2
1
chfa
Front of Motorcycle
Warning
Always replace blown fuses with new ones
of the correct rating (as specified on the
fuse box cover) and never use a fuse of
higher rating. Use of an incorrect fuse
could lead to an electrical problem,
resulting in motorcycle damage, loss of
motorcycle control and an accident.
1
chgx

Triumph Tiger Explorer Specifications

General

Displacement	1215 cc
Transmission	6-speed
Final Drive	Shaft
Tires Front	110/80 R19
Tires Rear	150/70 R17
Engine Type	Liquid-cooled, 12-valve, DOHC, inline 3-cylinder
Fuel System	fuel injection
Front Suspension	adjustable rebound and compression damping
Rear Suspension	adjustable rebound damping
Front Brakes	Dual 305mm floating discs, 4-piston calipers, ABS
Rear Brakes	Single 282mm disc, ABS
Frame	Tubular steel trellis frame
Fuel Capacity	20 L (5.2 US gal)
