Triumph Tiger Explorer User Manual

94
Maintenance and Adjustment
Engine Oil
In order for the engine, transmission, and
clutch to function correctly, maintain the
engine oil at the correct level, and change the
oil and oil filter in accordance with scheduled
maintenance requirements.

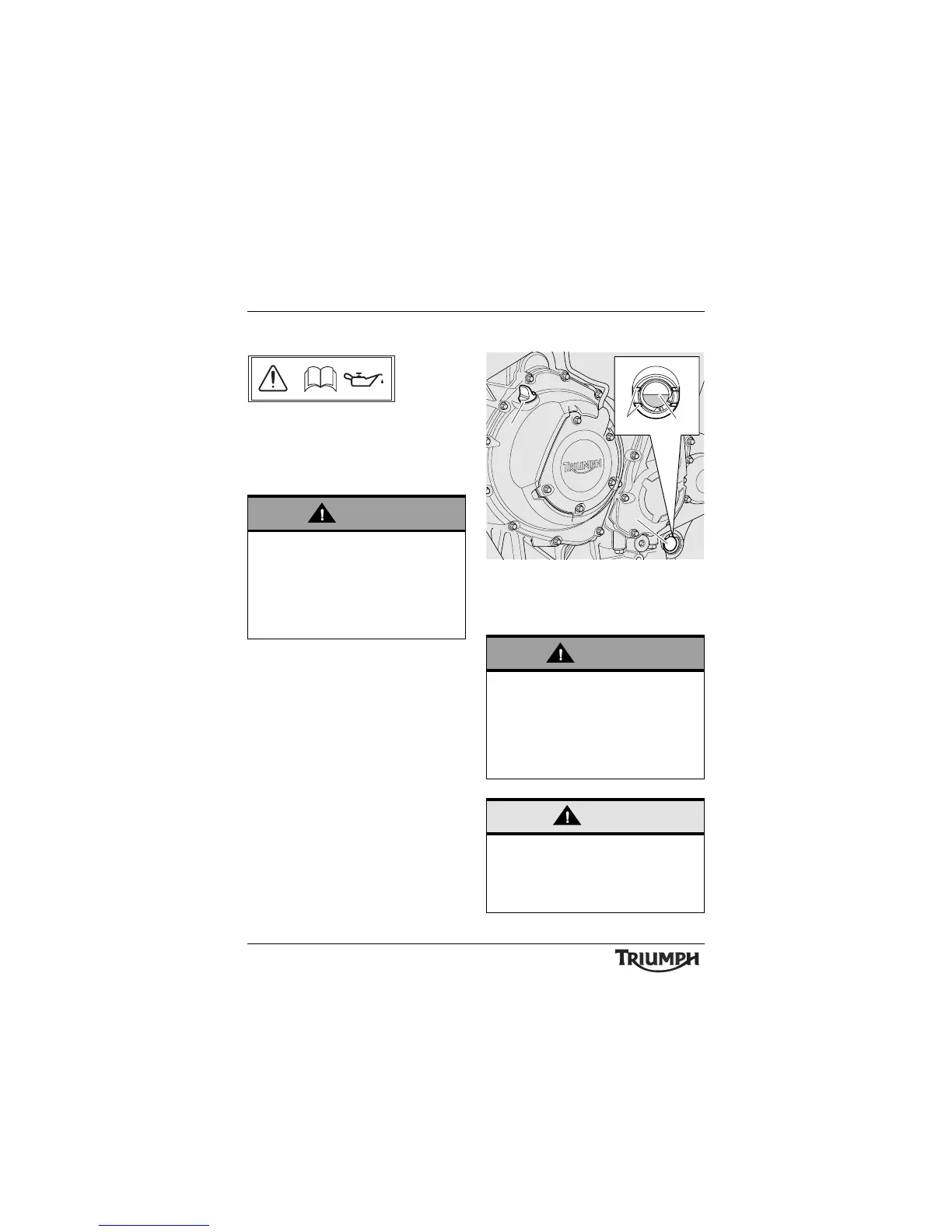

Oil Level Inspection
1. Filler plug
2. Sight glass
3. Oil level (correct level shown)
4. Crankcase oil level lines
Warning
Motorcycle operation with insufficient,
deteriorated, or contaminated engine oil
will cause accelerated engine wear and
may result in engine or transmission
seizure. Seizure of the engine or
transmission may lead to sudden loss of
control and an accident.
cbnz
Warning
Never start the engine or run the engine in
a confined area. Exhaust fumes are
poisonous and can cause loss of
consciousness and death within a short
period of time. Always operate your
motorcycle in the open-air or in an area
with adequate ventilation.
Caution
Running the engine with insufficient oil will
cause engine damage.
If the low oil
pressure indicator remains on, stop the
engine immediately and investigate the
cause.
2
4
3
1
chgz

Triumph Tiger Explorer Specifications

General

Displacement	1215 cc
Transmission	6-speed
Final Drive	Shaft
Tires Front	110/80 R19
Tires Rear	150/70 R17
Engine Type	Liquid-cooled, 12-valve, DOHC, inline 3-cylinder
Fuel System	fuel injection
Front Suspension	adjustable rebound and compression damping
Rear Suspension	adjustable rebound damping
Front Brakes	Dual 305mm floating discs, 4-piston calipers, ABS
Rear Brakes	Single 282mm disc, ABS
Frame	Tubular steel trellis frame
Fuel Capacity	20 L (5.2 US gal)
