TSI Instruments Certifier Plus - 4081 High Flow Module, Back; 4081 High Flow Module, Front; 4082 Low Flow Module

2-2 

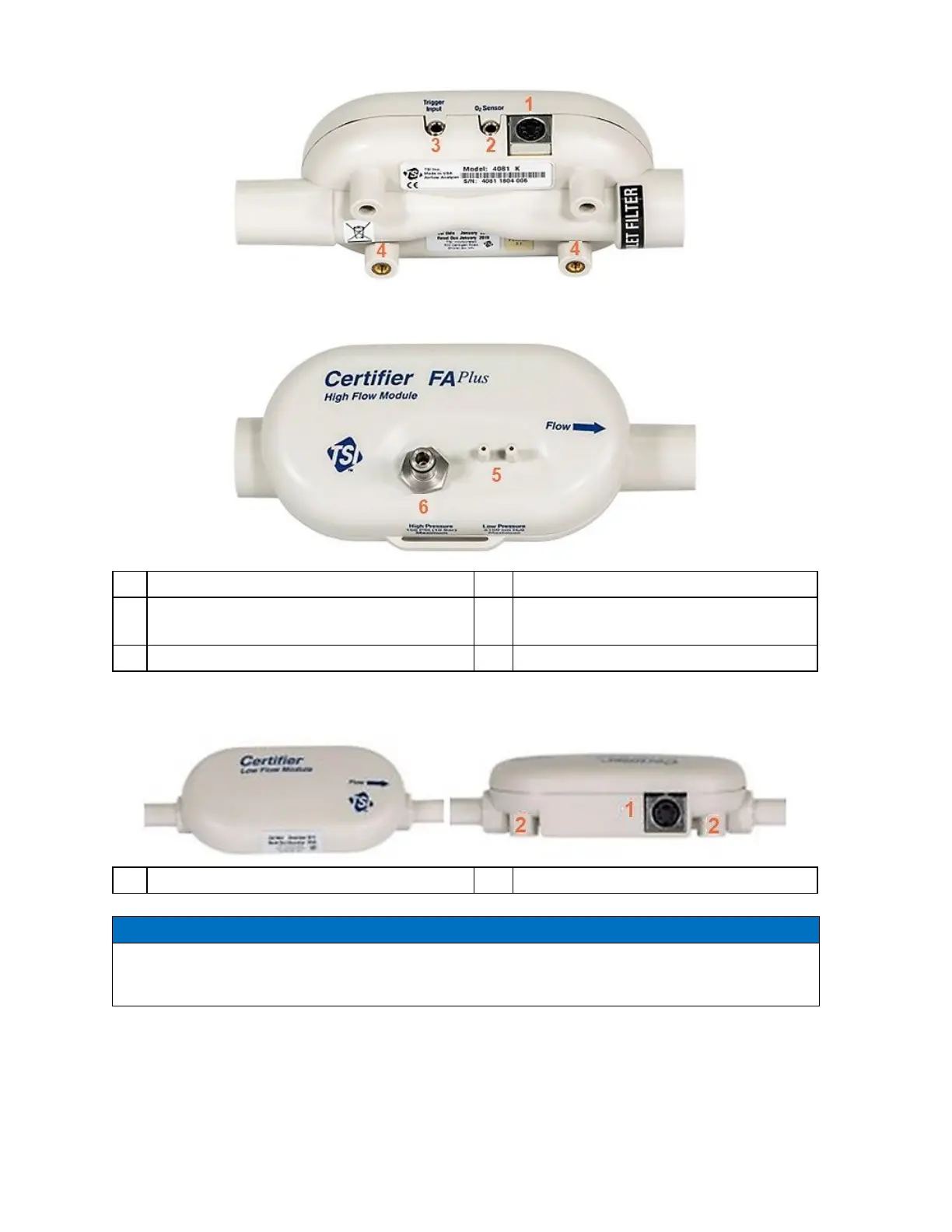

4081 High Flow Module, Back
4081 High Flow Module, Front
1.
Interface Module Connector
4.
Mounting Holes (threaded #8-32)
2.
O
2
Sensor Input
5.
Low Pressure Ports (± 150 cmH
2
O)

3.
TTL Trigger Input
6.
High Pressure Port (150 PSIG, 10 bar)
4082 Low Flow Module
NOTICE
The Model 4080-F test kit is designed to include everything needed to test the pneumatics of
mechanical ventilators. To expand to other applications, such as testing anesthesia workstations,
the model 4082 Low Flow Module kit can be added.
1.
Interface Module Connector
2.
Mounting Holes (threaded #6-32)
