Touchscreen Operation 4-13
If you choose to create a new configuration to save the setup, the Flow Analyzer will
New Configuration

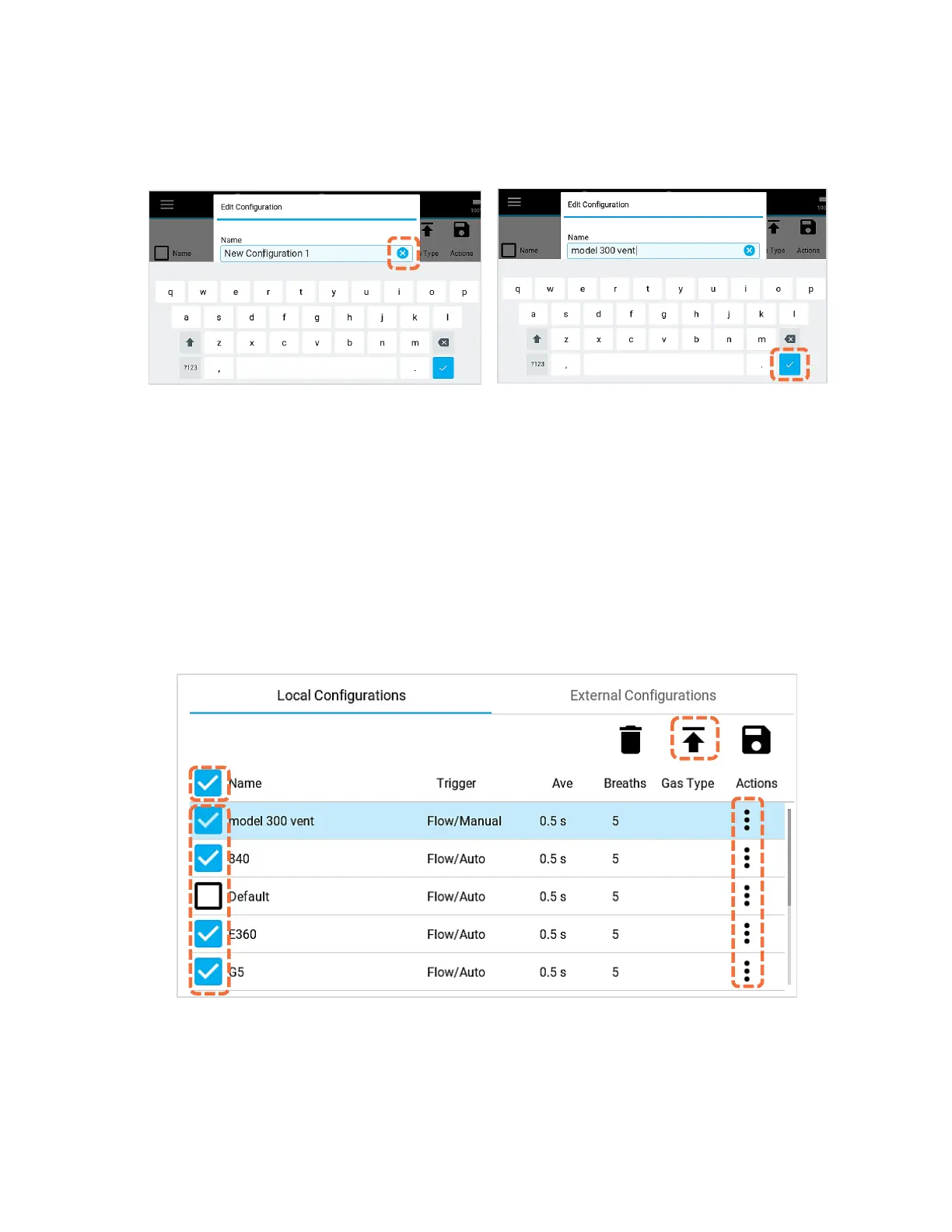

the 3-dot menu and select the Rename option. Press on the text field in the Edit Configuration pop-
up screen to bring up the onscreen keyboard. Press the blue and white X to the right of the
configuration name to clear the text in the name field. After editing the name, press the white on blue
checkmark button in the bottom right of the keyboard.
Exporting Configurations
Configurations are stored in the internal memory of the instrument and can be exported
through either of the two USB-A ports located on the top side of the 4089 Interface Module. To export
one or more configurations, insert a USB flash drive into the Flow Analyzer and navigate to
the Local tab of the Configurations screen. Any existing Flow Analyzer configurations
stored on the USB flash drive will be displayed in the External Configurations tab.
To export a single configuration, either click on the 3-dot menu of that particular configuration file and
select the Export menu option, or check the corresponding box and press the export icon (up arrow).
To export more than one configuration, press the check box for each configuration file or press the
checkbox in the Name column heading to select all configuration files. Note that the Default
configuration file cannot be exported, renamed, overwritten, or deleted.
After configurations have been exported, you can navigate to the External Configurations tab to
confirm that configuration files have successfully exported to the inserted USB drive. Exported
configuration files can be attached in emails and imported into other Plus instruments.
