Page 31
 (PV, pre-vacuum models only)
Drying: vacuum is built up and
the air pump is working.

Ending: The system checks that End temperature and End
pressure have been reached, and then releases the door.

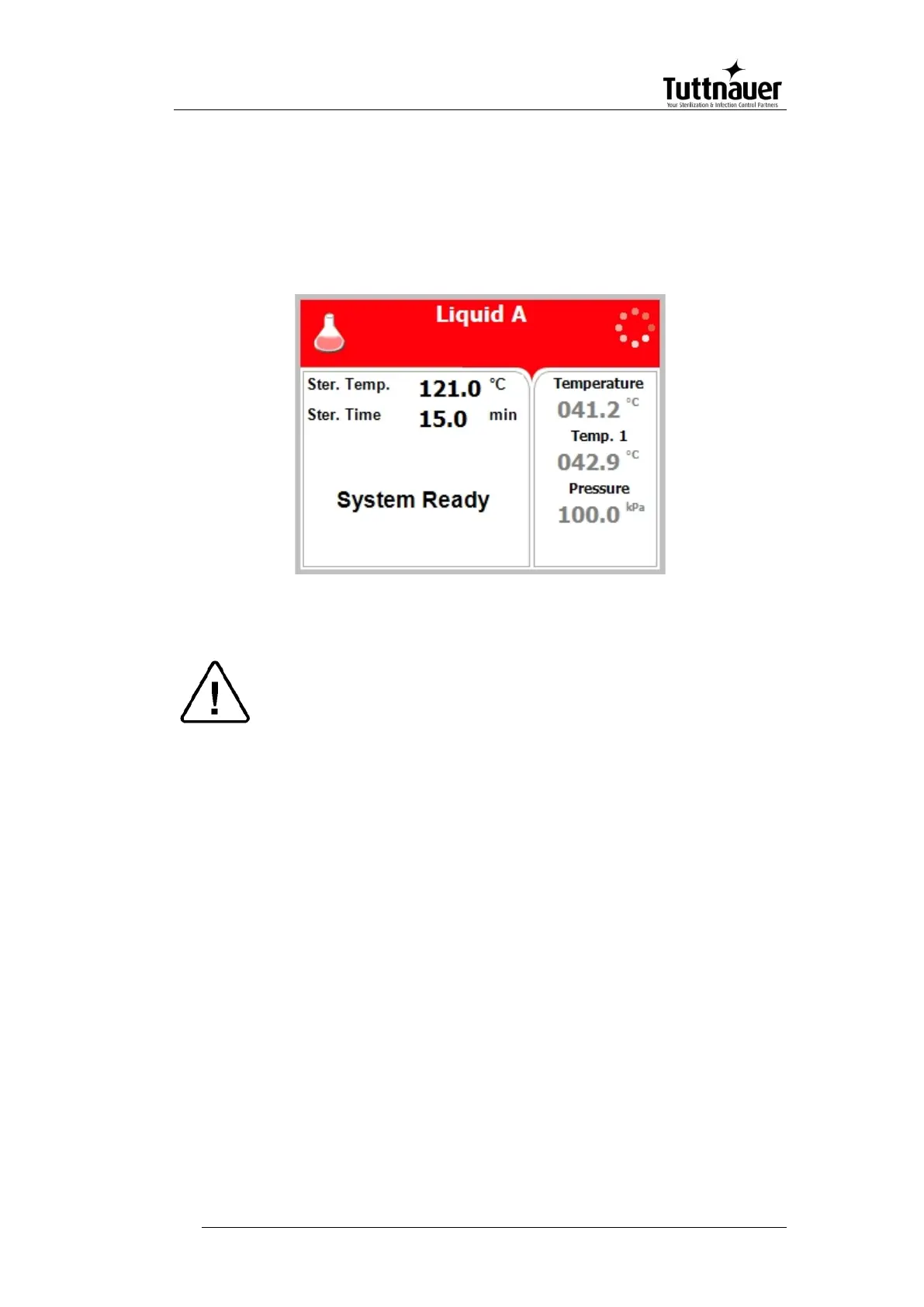

5.3 Program 3: Liquid A
For liquids when the manufacturer recommends autoclaving at
temperatures of 121C (250F) for 15 minutes.
Cautions!
Both PT100 temperature sensors must be inside the bottles.
For proper sterilization, fill the bottles with approximately the
same amount of liquid.
Nominal parameters default settings

Sterilization temperature: 121C (250F)

Sterilization time: 15 minutes
Operations Sequence
 (PV, pre-vacuum models only)
Pulse low/Pulse high: at one
pulse it will build vacuum down to 25 kPa.

Heating: Steam enters the chamber and heats it up until the
sterilization temperature is reached.

Sterilization: Sterilization temperature is maintained constant
during the sterilization time.

Cooling: N/A

Slow Exhaust: Steam is exhausted from the chamber at a slow
rate, until it reaches the pressure of 30 kPa above the ambient
